| Prod Model: |
S11 |
| Capacity: |
100kVA |
| Input Voltage: |
11kv |
| Output Voltage: |
0.4kv |
| Connection Group Symbol: |
Dyn11 or Yyn0 |
| Impedance Voltage: |
4%,4.5%,5% |
| HS Code: |
8504220000 |
| Product Name: |
11kv 100kVA High Voltage Three Phase Transformer |
| Rated Frequency: |
50 or 60Hz Optional |
| Color: |
Grey B05 or Optional |
| Rated Voltage: |
10kv |
| Application: |
Lighting |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description

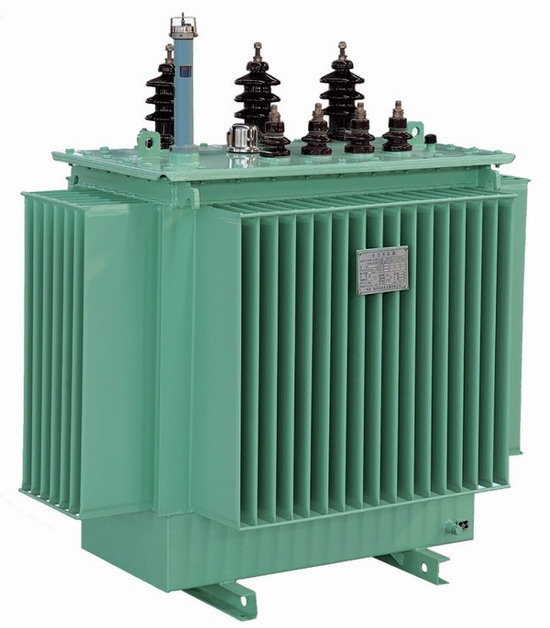

11kv 100kVA High Voltage Power Three Phase Transformer
Product introduction
The transformer is completely hermetical oil-immersed type. The principle is the same as the hermetical power transformer. The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc. It is a kind of isotropic soft magnetic material with low magnetizing power. With 0.027mm thickness and the filling coefficient is reduced to 0.75-0.8, the amorphous alloy material is very sensitive for stress. The electrical resistivity of the material is 3-6 times of silicon steel sheet and the hardness is 5 times of it.
Technical Parameter of 11kv 100kVA High Voltage Power Three Phase Transformer
Model No. | Voltage Combination | Connection Group Symbol | No-load Loss | Load Loss | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width W (mm) | Height H(mm) |
| High Voltage | Tapping Range of High Voltage | Low Voltage |
| S11-30/10 |
6
6.3
10
10.5 |
±5%
±4×2.5% |
0.4 |
Yyn0 (or)
Dyn11
| 0.1 | 0.6 |
4.0
| 2.8 | 980 | 735 | 1145 |
| S11-50/10 | 0.13 | 0.87 | 2.5 | 1017 | 758 | 1205 |
| S11-63/10 | 0.15 | 1.04 | 2.4 | 1035 | 785 | 1285 |
| S11-80/10 | 0.18 | 1.25 | 2.2 | 1065 | 800 | 1290 |
| S11-100/10 | 0.2 | 1.5 | 2.1 | 1072 | 820 | 1305 |
| S11-125/10 | 0.24 | 1.8 | 2.0 | 1155 | 1105 | 1310 |
| S11-160/10 | 0.28 | 2.2 | 1.9 | 1235 | 850 | 1535 |
| S11-200/10 | 0.34 | 2.6 | 1.8 | 1282 | 860 | 1557 |
| S11-250/10 | 0.4 | 3.05 | 1.7 | 1310 | 940 | 1605 |
| S11-315/10 | 0.48 | 3.65 | 1.6 | 1465 | 1120 | 1915 |
| S11-400/10 | 0.57 | 4.3 | 1.5 | 1440 | 1165 | 1725 |
| S11-500/10 | 0.68 | 5.15 | 1.4 | 1510 | 1250 | 1845 |
| S11-630/10 | 0.81 | 6.2 | 1.3 | 1650 | 1140 | 1920 |
| S11-800/10 | 0.98 | 7.5 |
4.5 | 1.2 | 2125 | 1175 | 2315 |
| S11-1000/10 | 1.15 | 10.3 | 1.1 | 2150 | 1380 | 2570 |
| S11-1250/10 | 1.36 | 12.0 | 1.0 | 2355 | 1485 | 2570 |
| S11-1600/10 | 1.64 | 14.5 | 0.9 | 2335 | 1750 | 2630 |
