| Prod Model: |
ZS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Protection Level: |
IP3X |
| Voltage: |
11kv |
| Rated Load: |
2500A |
| Application: |
Electric Power |
| Customized: |
Customized |
| Surface Treatment: |
Powder Coating |
Product Description

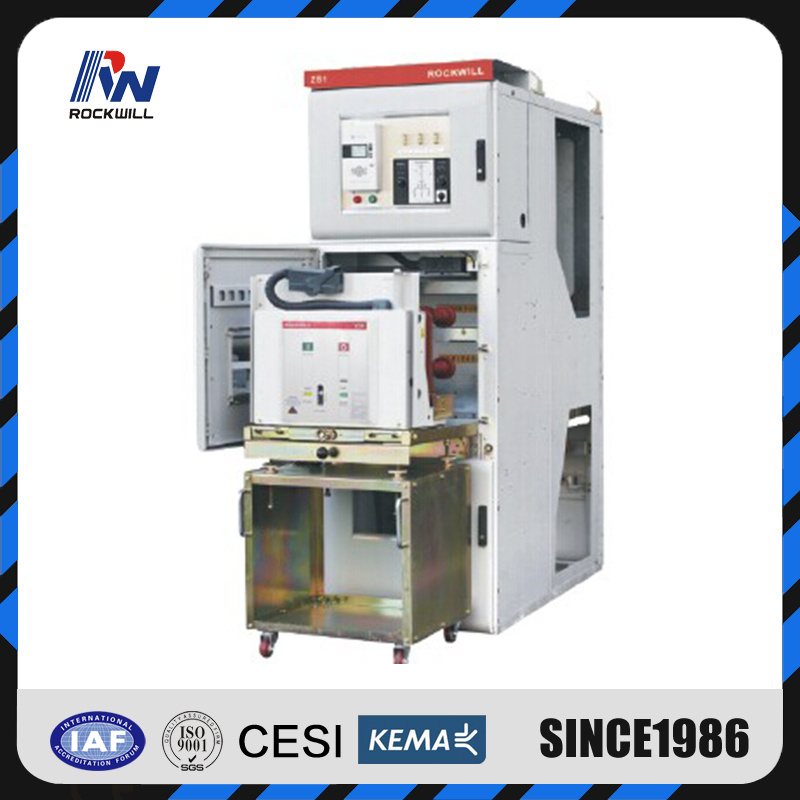

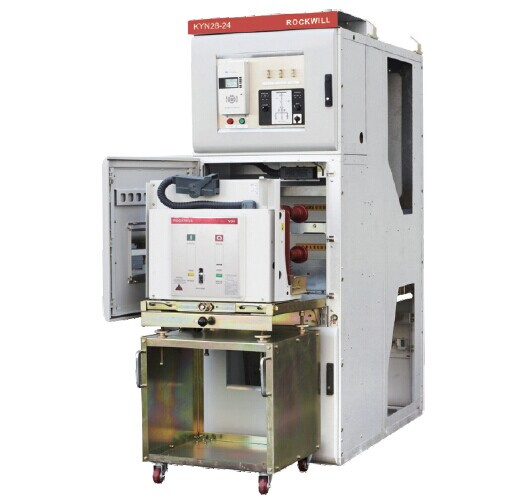

This switchgear mainly applies in the power system of AC 3~36KV three phase 50/60Hz in the construction of city power network and reconstruction project, factory and mineral enterprise, high building and public facility to receive and distribute power.
Rated voltage: 12 kV/24kV/36kV
Rated frequency: 50Hz
Mechanical life: 10000 times
Protection degree: IP3X
Main busbar rated current: 630A up to 4000A
Load break switch full capacity breaking time: 100 times
Fuse breaking current: 31.5-50 kAFeature
1. Indoor or outdoor electrical switchgear, factory-assembled, for primary and secondary distribution systems protection.
2. Up to 40kV, 3150A, 50 / 60Hz
3. Modular space-saving design, metal-enclosed, removable or fixed type
4. IEC standards compliant
5. Parts from ABB, SCHNEIDER, GE, etc., are available
6. Improved safety for personnel and operations
7. Quality is assured by extensive design and production tests, coupled with manufacturing in facility that has been certified in compliance with ISO 9001.
8. One year warranty
Standard Service Condition
1. The ambient air temperature does not exceed 40°C and its average value, measured over a period of 24h, does not exceed 35°C.
2. The minimum ambient air temperature is -5°C.
3. The altitude does not exceed 1000m.
4. he ambient air is not significantly polluted by dust, smoke, corrosive and/or flammable gases, vapours
or salt.
5. The conditions of humidity are as follows:
- The average value of the relative humidity, measured over a period of 24h, does not exceed 95%;
- The average value of the water vapour pressure, over a period of 24h, does not exceed 2.2kPa;
- The average value of the relative humidity, over a period of one month, does not exceed 90%;
- The average value of the water vapour pressure, over a period of one month, does not exceed 1.8kPa.
Application
1. Substations
2. Public utilities
3. Industrial plants
4. Public buildings: high-rise buildings, railway stations, hospitals
Specification
Item | Units | Data |
Rated frequency | Hz | 50/60 |
Rated voltage | kV | 22,24 |
1min power frequency withstand voltage | kV | (50)65 |
Rated impulse withstand voltage(peak) | kV | 125 |
Rated current | A | 630,1250,1600,2500,3150 |
Rated current of branch bus | A | 630,1250,1600,2500 |
Rated short time withstand current | kA | 16 ,20,25,31.5 |
Rated peak withstand current | kA | 40,50,63,80 |
Rated short circuit continuous time | s | 4 |
Protection level | Shell:IP4X,IP2X When CPT and CB door are open |
Weight | Kg 800,1000 (Rated current>1600) |
More pls contact with us.
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE ROCKWELL:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-577-27869969
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
Wenzhou Rockwell Transformer Co., Ltd. is a high-tech enterprise invested by Rockwill Transmission and distribution Group Co., Ltd. Our company is specialized in developing, manufacturing and marketing Single phase & three phase automatic step voltage regulator, Auto-transformers, power transformers, preventive auto transformer, CT and PT combinated Metering unit, and compact transformer and pad moubted substations.
Our company enjoys a worldwide reputation for our superior quality and service. In addition to the domestic market, our products are exported to America, Australia, Central Europe, Eastern Europe, Southeast Asia, the Middle East, Africa and other regions and countries.
Besides a great variety of products, we also provide you with professional technical solutions and services. If you have any problem, please feel free to contact us and our technicians will find a complete solution for you.
We always embrace the idea of developing together with customers and always try our best to provide users with safer, easier, greener and more energy-saving high and medium voltage electric equipment and components.
Note:
Rockwell's sister company Rockwill is offering manufacturing for MV and LV switchgears, ring main units, vacuum(gas) circuit breakers, reclosers, load break switches and Low voltage metering unit, Current transformer, Voltage transformer.
