| Prod Model: |
HS |
| Type: |
Power |
| Form: |
Partly-welded Type |
| Operation Voltage: |
High Voltage |
| Size: |
1 Uint |
| Application Range: |
Power Plants |
| Shell Protection Grade: |
IP23 |
| Brand: |
Shanghai Electric |
Product Description

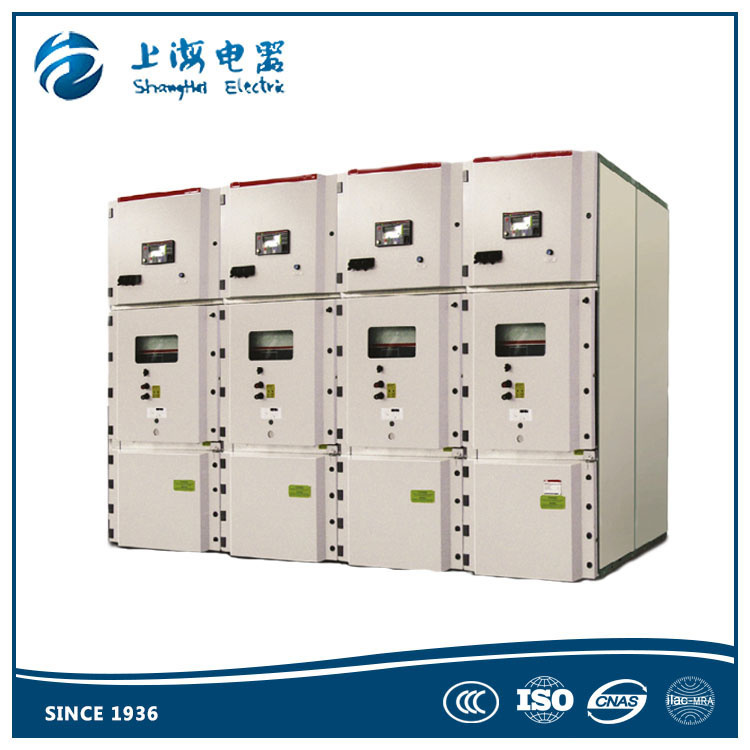

11kV withdrawable indoor AC metal-clad enclosed high voltage switch gear is suitable for 3.6~15kV three-phase AC power network of 50Hz. The equipment can be used for power distribution and control, monitoring and protection of the power circuit. It can be applied to the singular bus, and double bus system. Shield is composed of aluminum, zinc and bolt, enjoying high mechanical strength. The painted doors of cabinet make the device nice-looking and elegant.
Service environment
a) Air temperature: Maximum temperature: +40°C; Minimum temperature:-15°C
b) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
c) Altitude above sea level: Maximum installation altitude: 1000M.
d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
e) No frequent violent shake
The switch cabinet is metal-clad. Its structure design accords with the standards GB3906-91, IEC298, DL404 and DL402. The crust structure is made of steel plates by means of bending and welding, which are joined by bolts. The hand buggy panel is the door of cabinet. The bosom of switch cabinet is divided into a breaker chamber, a main bus bar chamber, a cable chamber and a relay chamber by metal partitions. The degree of protection of the entire crust and compartments is IP2X equally. All the metal structures are connected to ground reliably. All the compartments of main circuit system have pressure release channels for independent exhaust.
indoor 11kv switchgear
| indoor 11kv switchgear | technical Parameter |
| Rated voltage | KV | 3.6 | 7.2 | 12 |
| Rated short time | KV | 24 | 32 | 42 |
| Rated lighting | KV | 40 | 60 | 75 |
| Rated frequency | HZ | | 50 | |
| Rated current | A | 630 1250 1600 2000 2500 | |
| Rated short circuit | KA | 20 25 31.5 40 50 | | |
| Rated peak value | KA | 50 63 80 100 125 | | |
| Rated control | V | AC110/220, DC110/220 | | |
| Dimension(width*depth*height) | KYN28A-12 | mm | (800/1000)*1500*2300 | | |
| | XGN2-12 | mm | 1100*1200*2650 | | |
| | HXGN-12 | mm | (375/500)*900*1850 | | |
indoor 24KV high voltage switchgear
| indoor 24KV high voltage switchgear | technical Parameter |
| Rated voltage | | KV | 24-15 |
| Rated short time | KV | 65 |
| Rated lighting | | KV | 125 |
| Rated frequency | HZ | 50 |
| Rated current | | A | 630 1250 1600 2000 2500 |
| Rated short circuit | KA | 25 31.5 |
| Rated peak value | KA | 63 80 |
| Rated control | | V | AC110/220, DC110/220 |
| Dimension(width*depth*height) | KYN28A-24 | mm | 1000*1800*2450 |
indoor 35KV high voltage switchgear
| indoor 35KV high voltage switchgear | technical Parameter |
| Rated voltage | KV | 40.5-33 |
| Rated short time | KV | 95 |
| Rated lighting | KV | 185 |
| Rated frequency | HZ | 50 |
| Rated current | A | 630 1250 1600 2000 2500 |
| Rated short circuit | KA | 25 31.5 |
| Rated peak value | KA | 63 80 |
| Rated control | V | AC110/220, DC110/220 |
| Dimension(width*depth*height) | KYN61-40.5 | mm | 1400*2800*2600 |
