11kv-33kv Pin Porcelain Insulators with Spindle (BS)

Name: 11kv-33kv Pin Porcelain Insulators with Spindle (BS)
Brand: all-electronics-online.com
SKU: 826007525
Availability: InStock
Rating: 4.7 (118 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	P-11-Y
Porcelain Insulators:	Strain Insulator
Application:	High-voltage
Material:	Porcelain
Structure:	Strain Insulator
Type:	B Type Insulator
Color:	Brown
Brand:	Haivol

Product Description

Specifications

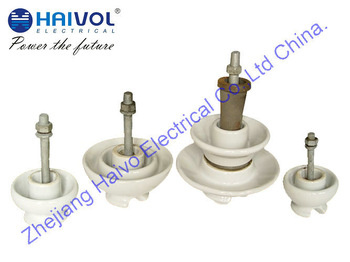

11kv-33kv Pin Porcelain Insulators
1)Standards:BS
2)creepagedistance:240/298/432/630mm
3)short delivery
4)good quality

11kv-33kv Pin Porcelain Insulators (BS)
•Material:porcelain material
•Class BS : P-11-Y, P-15-Y, P-20-Y, P-33-Y

•specification:

Cat NO				A1001	A1002	A1003	A1004
Fig				1	1	2	3
Class BS				P-11-Y	P-15-Y	P-20-Y	P-33-Y
Main Dimensions (mm)	H			133	137	195	244
	h			48	48	52.63	52.63
	D			140	152	230	279
	d			18.29	18.29	27.78	27.78
	R1			13	13	19	19
	R2			9.5	12.7	14.3	13
Nominal Voltage(kv)				11	15	22	33
Creepage Distance(mm)				240	198	432	630
Minimum Flashover Voltage		Power-frequency	Dry	75	80	100	135
		Power-frequency	Wet	45	55	60	85
		50% Impulse	Positive(kv)	100	130	160	185
		50% Impulse	Negative(kv)	110	175	205
Withstand Voltage		One minute power-frequency	Dry(kv)	65	70	90	110
		One minute power-frequency	Wet(kv)	40	50	55	75
		Impulse			110	150
Radio-influence-voltage Data		Test Voltage to Ground(kv)		15	15	22	30
Radio-influence-voltage Data		Maximum RIV at1000Khz(uV)		8000	8000	12000	16000
Power-frequency puncture Voltage(kv)				135	135	145	185
Cantilever Failing Load(kn)				11	11	11	13
Weight (kg)				1.8	-	-	11.5

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
