11kv ABC Cable/Service Drop Wire

Name: 11kv ABC Cable/Service Drop Wire
Brand: all-electronics-online.com
SKU: 824285115
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	US $ 1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Service Drop Wire
Standard:	ASTM, IEC, DIN, CSA, BS...
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Insulation Material:	PVC
Certification:	SABS
Brand:	Jiapu

Product Description

0.6 / 1kV 11kv, 33kv PVC / XLPE / PE Insulated Overhead Electric Transmission Aerial Bundled Cable Spacer ABC Cable
Specifications
ABC service drop cable
AAC/ACSR/XLPE
Duplex/Triplex/Quadruplex service drop

Al/XLPE+ACSR 0.6/1kV overhead ABC cable

Detailed Product Description

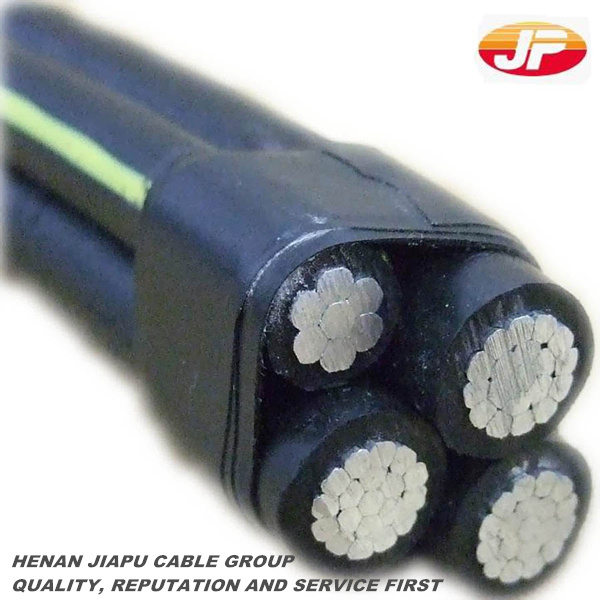

ABC cable
(Service drop cable)
1. Stranded aluminium conduct
2. PE or XLPE insulation
3. ACSR, AAAC Messenger wire

Application

It is preferred to use of service drop (ABC cables) instead of uninsulated conductors
at low voltage networks. service drop (ABC cables)are especially used at areas
where the cost of underground networks is expensive and also
for electrification of rural areas like villages.
Voltage
Rated voltage U0 / U = 0.6 /1 kV
VAC test voltage 5 kV
Technical Data
Maximum operating temperature 90 degree
Maximum short-circuit temperature 250 degree. Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages.
ABC technical charaters based on Standard ASTM ANSI/ICEA S-76-474 and NFC 33-209

Code word	AWG or kcmil	Bare neutral messenger		Phase conductor		Weight kg/km
		ACSR stranding and wires dia. (mm)	Rated strength (lbs)	AAC	Insulation thickness (mm)
		ACSR stranding and wires dia. (mm)	Rated strength (lbs)	Stranding and wires dia. (mm)	Insulation thickness (mm)
Setter	16AWG+16AWG	1/1.68+6/1.68	1190	1/4.11	1.14	111
Shepherd	16AWG+16AWG	1/1.68+6/1.68	1190	7/1.56	1.14	113
Eskimo	14AWG+14AWG	1/2.12+6/2.12	1860	1/5.19	1.14	171
Terrier	14AWG+14AWG	1/2.12+6/2.12	1860	7/1.96	1.14	173
Chow	12AWG+12AWG	1/2.67+6/2.67	2850	7/2.47	1.14	266
Bull	11/0AWG+11/0AWG	1/3.37+6/3.37	4380	19/1.89

Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
