11kv Aluminum Secondary Distribution Quadruplex Service Drop 370+170 ABC Self-Sustaining Cable

Name: 11kv Aluminum Secondary Distribution Quadruplex Service Drop 3*70+1*70 ABC Self-Sustaining Cable
Brand: all-electronics-online.com
SKU: 732101462
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 0.25-36.9/Meter
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JKLYJ
Rated Voltage:	11kv
Test Voltage:	45 Kv/50 Hz
Bending Radius (Min.):	18 X D of Cable
Application:	Public Power Distribution Network 12/20 Kv
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	SGS
Sheath Material:	PE, HDPE, LDPE, LLDPE
Wire Core Material:	Aluminum
Model:	Al/XLPE/HDPE
Brand:	Hongda

Product Description

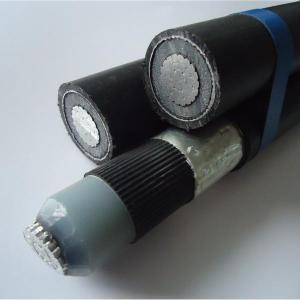

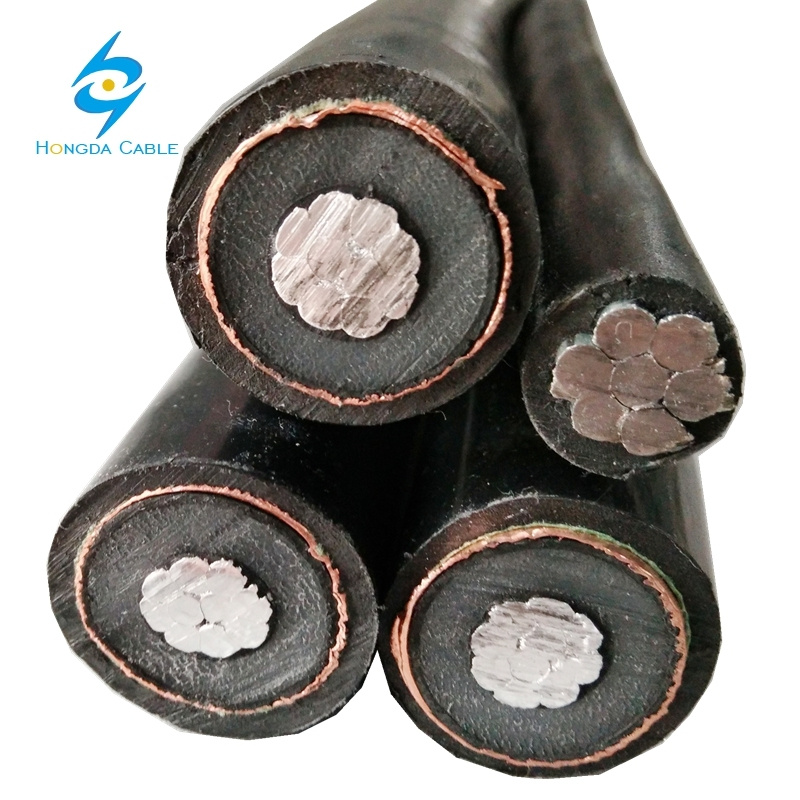

11kv aluminum Secondary distribution Quadruplex Service drop 3*70+1*70 ABC Self-sustaining cable

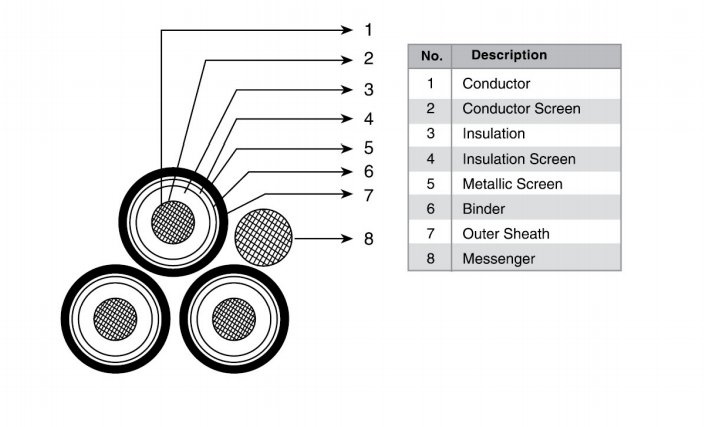

Phase Conductor	Aluminium
Conductor Screen	Extruded semi-conductive layer.
Insulation	XLPE.
Insulation Screen	Extruded semi-conductive layer.
Outer Sheath	PE, HDPE, LDPE, LLDPE.
Color	Black

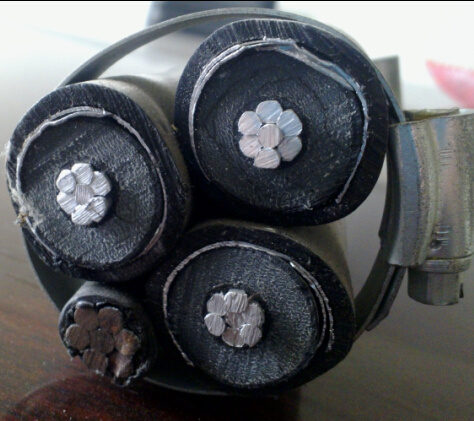

Assembly	Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay.

Application:

NF C 33-226 cables are the new generation of cables for public power distribution network 12/20 kV.
The cable can be used for overhead power transmission . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , etc.

Standard

NF C 33 226

11kv aluminum Secondary distribution Quadruplex Service drop 3*70+1*70 ABC Self-sustaining cable Specifications:

Dimensions

Product Name	Conductor material
1x50	Aluminum
3x1x50	Aluminum
1x95	Aluminum
3x1x95	Aluminum
1x150	Aluminum
3x1x150	Aluminum
1x240	Aluminum
3x1x240	Aluminum
1x630	Aluminum
1x240/0.15	Copper
3x1x240/0.15	Copper

OPTIONS

NF C 33-226 cables can be manufactured with the following options:

Copper conductor
Other voltage
Other section
Grounding conductor
Thicker aluminium screen
Bunch
Re-enforced burying resistance (EDR) is ensured with an extruded polyethylene protection.

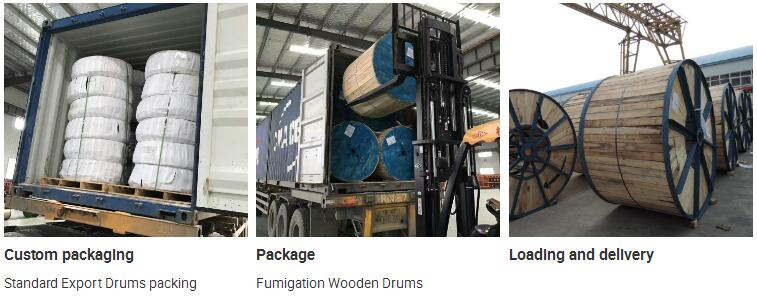

Packing shipping

Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.

Certification:
Low Voltage Copper PVC Insulated 4 Core 95mm Power Cable

Low Voltage Copper PVC Insulated 4 Core 95mm Power Cable

if need more information, please contact me:

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
