| Prod Model: |
LZZBJ9-12/150b/4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
CT |
| Frequency: |
Epoxy Resin |
| Accuracy: |
Current Transformer |
| Instrument Transformer: |
25-20k Hz 45-600Hz |
| 11kv: |
High Quality PC Materials |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

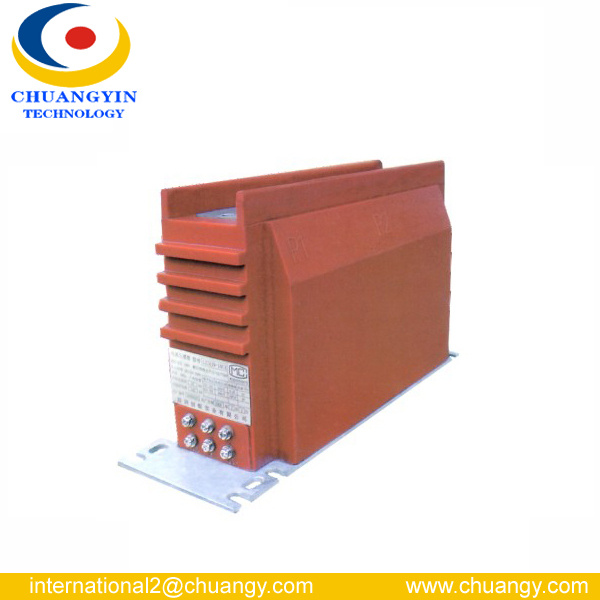

LZZBJ9-12/150b/2/LZZBJ9-12/150b/4 current transformer (CT) epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body.
The product has the feature of lightweight, omni-directional installation: withstanding nastiness and dampness, it is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV, IEC61869-1&2.
Technical Data:
1) Rated insulation level: 12/28/75kV
2) Rated frequency: 50/60Hz
3) Installation site: Indoor
4) Technical standard: IEC 60044-1:2003, IEC 61869-1&2
Specification
1) LZZBJ9-12/150b/2 Single Ratio
| Rated transformation ratio (A) | Accuary classes combination | Rated output (VA)
COS=0.8 | ALF | FS | Short-time thermal current Ith (KA/S) | Rated dynamic current Idyn (KA) |
| Measuring | Protective |
| 0.2 (s) | 0.5 | 10p |
| 10-200/5 | 0.2 (s)/0.2 (s)
0.2 (s)/0.5
0.2 (s)/10p
0.5/10p
0.2s/0.5/10p
0.2/0.5/10p | 10
15 | 15 | 15
20 | 10
15
20 | 5
(10) | 100I1n | 250I1n |
| 300/5 | 31.5 | 80 |
| 400/5 | 31.5 | 80 |
| 500/5 | 40 | 100 |
| 600/5 | 50 | 125 |
| 800/5 | 63 | 125 |
| 1000/5 | 80 | 160 |
| 1200,1250/5 | 100 | 160 |
Note:Upon request we are glad to offer transformers according to other technical specs.
2) LZZBJ9-12/150b/2 Double Ratio
| Rated transformation ratio (A) | Accuary classes combination | Rated output (VA)
COS=0.8 | ALF | FS | Short-time thermal current Ith (KA/S) | Rated dynamic current Idyn (KA) |
| Measuring | Protective |
| 0.2 (s) | 0.5 | 10p |
| 10-20/5 | 0.2 (s)/0.2 (s)
0.2 (s)/0.5
0.2 (s)/10p
0.5/10p | 10
15 | 15 | 15
20 | 10
15
20 | 5
(10) | 1.5 | 3.75 |
| 20-40/5 | 3 | 7.5 |
| 50-100/5 | 8 | 20 |
| 100-200/5 | 15 | 37.5 |
| 200-400/5 | 30 | 75 |
| 400-800/5 | 63 | 130 |
| 500-1000/5 | 63 | 130 |
| 600-1200/5 | 80 | 160 |
Note:Upon request we are glad to offer transformers according to other technical specs.
3) LZZBJ9-12/150b/4 Single Ratio
| Rated transformation ratio (A) | Accuary classes combination | Rated output (VA)
COS=0.8 | ALF | FS | Short-time thermal current Ith (KA/S) | Rated dynamic current Idyn (KA) |
| Measuring | Protective |
| 0.2 (s) | 0.5 | 10p |
| 10-200/5 | 0.2 (s)/0.5/10p
0.2/0.5/10p
0.2 (s)/10p/10p
0.5/10p/10p
0.2s/0.5/10p/10p | 10
15 | 15 | 15
20 | 10
15
20 | 5
(10) | 100I1n | 250I1n |
| 300/5 | 31.5 | 80 |
| 400/5 | 31.5 | 80 |
| 500/5 | 40 | 100 |
| 600/5 | 50 | 125 |
| 800/5 | 63 | 125 |
| 1000/5 | 80 | 160 |
| 1200,1250/5 | 80 | 160 |
Note:Upon request we are glad to offer transformers according to other technical specs.
4) LZZBJ9-12/150b/4 Double Ratio
| Rated transformation ratio (A) | Accuary classes combination | Rated output (VA)
COS=0.8 | ALF | FS | Short-time thermal current Ith (KA/S) | Rated dynamic current Idyn (KA) |
| Measuring | Protective |
| 0.2 (s) | 0.5 | 10p |
| 10-20/5 | 0.2 (s)/0.5/10p
0.2/0.5/10p
0.2 (s)/10p/10p
0.5/10p/10p | 10
15 | 15 | 15
20 | 10
15
20 | 5
(10) | 1.5 | 3.75 |
| 20-40/5 | 3 | 7.5 |
| 50-100/5 | 8 | 20 |
| 100-200/5 | 15 | 37.5 |
| 200-400/5 | 30 | 75 |
| 400-800/5 | 63 | 130 |
| 500-1000/5 | 63 | 130 |
| 600-1200/5 | 80 | 160 |
Note:Upon request we are glad to offer transformers according to other technical specs.
