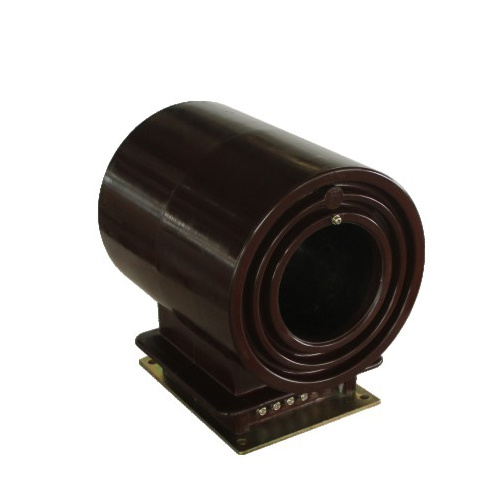

11kv Busbar Epoxy Resin Type Indoor Current Transformers (1000~5000, 0.2~5P)

Name: 11kv Busbar Epoxy Resin Type Indoor Current Transformers (1000~5000, 0.2~5P)
Brand: all-electronics-online.com
SKU: 757567255
Availability: InStock
Rating: 4.5 (128 reviews)

Price:	US $ 200-210/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMZBJ9-11X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Transformer:	CT
Indoor:	Epoxy
Busbar:	Transformer
High Voltage Transformer:	Low Voltage Transformer
1000~5000:	0.2~5p
Epoxy Resin Type:	11kv
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

LMZBJ9-11X epoxy resin casting busbar type current transformer, is widely used for measuring current, electric energy and protective relaying in the electrical system with rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV. The product has three secondary windings (one measuring winding & two protective windings or two measuring windings &one protective winding). Rated primary current is 1000-5000A and rated secondary current is 5A/1A
Busbar

Main technical parameter

Rated voltage: 6 kV or 11 kV etc
Rated insulation level: 7.2/20/60 kV or 12/28/75 kV or 17.5/38/95 kV
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
Two windings

Specification

Rated primary current (A)	Accuracy classes combination	Accuracy class and relative rated output (VA)
		0.2	0.5	5P20
1000	0.2/0.2 0.5/0.5 0.5/5P20 5P20/5P20	20	40	40(20)
1500				50(30)
2000 3000 4000 5000		30	60	60(40)

Three windings

Rated primary current (A)	Accuracy class and relative rated output (VA)
1000	0.2/0.5/5P20 0.5/5P20/5P20	20/40/20 40/15/15
1500		20/40/30 30/20/20
2000 3000 4000 5000		30/60/40 60/30/30
		30/60/40 60/30/30
		30/60/40 60/30/30

Note:Upon request we are glad to offer transformers according to other technical specs.

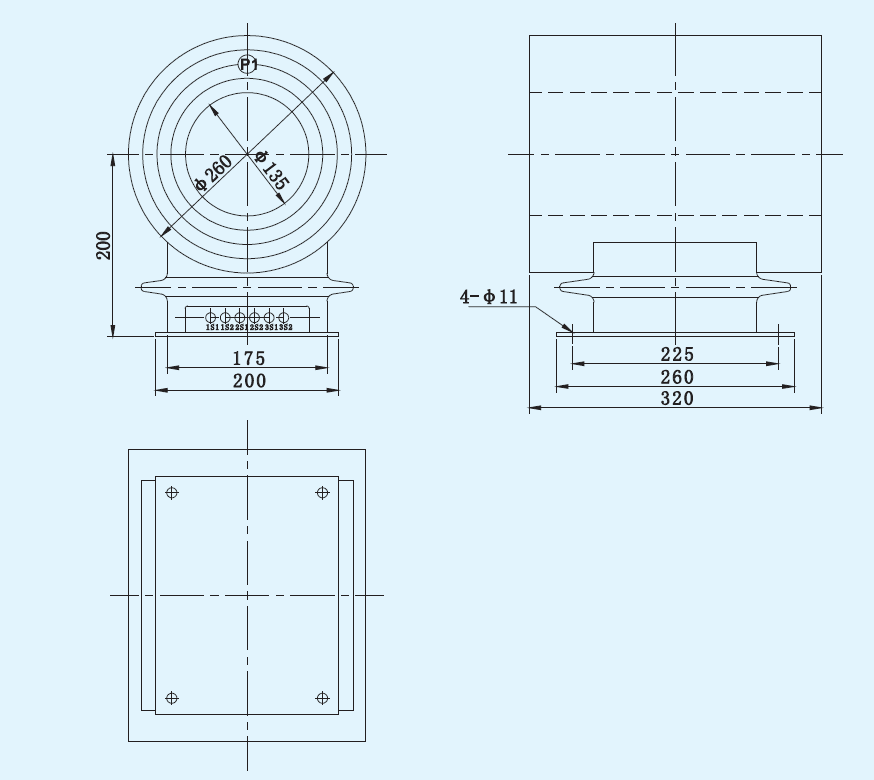

Outline Drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
