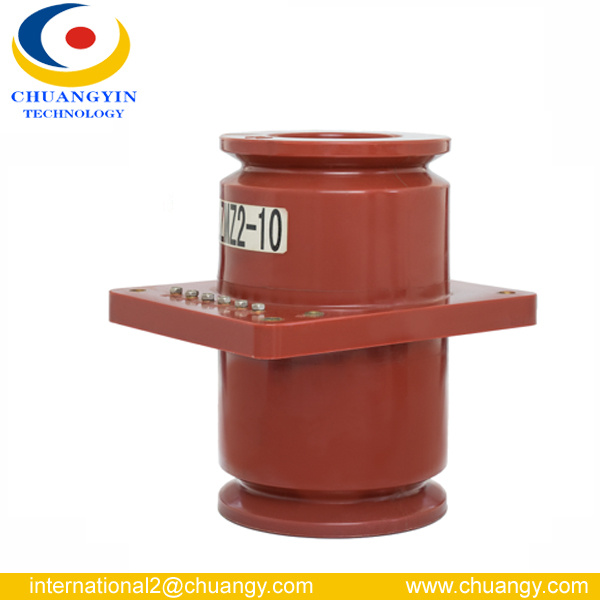

11kv Dry Type Indoor Epoxy Resin Busbar Type CT /Current Transformer (1000~5000/5, 0.2S~10P)

Name: 11kv Dry Type Indoor Epoxy Resin Busbar Type CT /Current Transformer (1000~5000/5, 0.2S~10P)
Brand: all-electronics-online.com
SKU: 789842845
Availability: InStock
Rating: 4.9 (99 reviews)

Price:	US $ 190-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMZB2-11-004
Indoor:	CT
Current Transformer:	Cts
11kv:	Indoor
Epoxy Resin Busbar Type:	Voltage Transformer
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

LMZB(J)2-11 epoxy resin casting busbar type current transformer, is widely used for measuring current, electric energy and protective relaying in the electrical system with rated frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV. The product has three secondary windings (one measuring winding & two protective windings or two measuring windings &one protective winding). Rated primary current is 1000-5000A and rated secondary current is 5A.
Main technical parameter

Rated voltage: 5 kV or 11kV etc
Rated secondary current: 5A or 1A
Rated insulation level: 7.2/20/60 kV or 12/28/75 kV
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers

Type	Rated Transformation ratio (A)	Accuracy classes combination	Rated output Cos∮=0.8 (VA)			FS	ALF
			Measuring		Protective
			0.2(S)	0.5	10P
LMZB2-11	400~1000/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2S/0.5/10P 0.2/0.5/10P	10	15	5. 10	5 (10)	10 15 20
LMZBJ2-11	1000/5		15 20	15 20 30	15 20 30 40
	1200/5
	1500/5
	2000/5
	3000/5
	4000/5
	5000/5

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

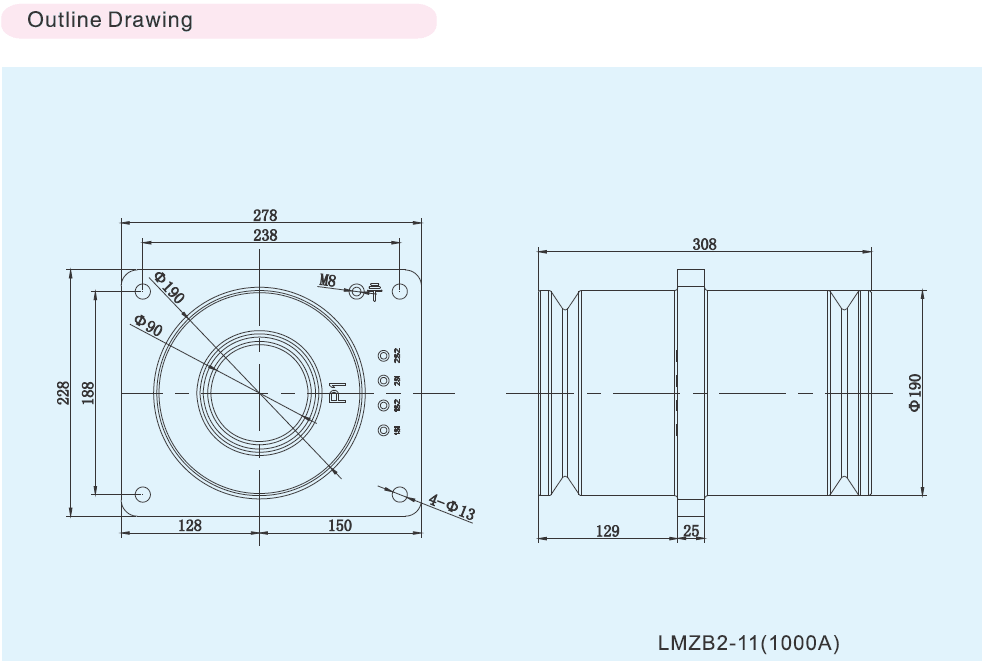

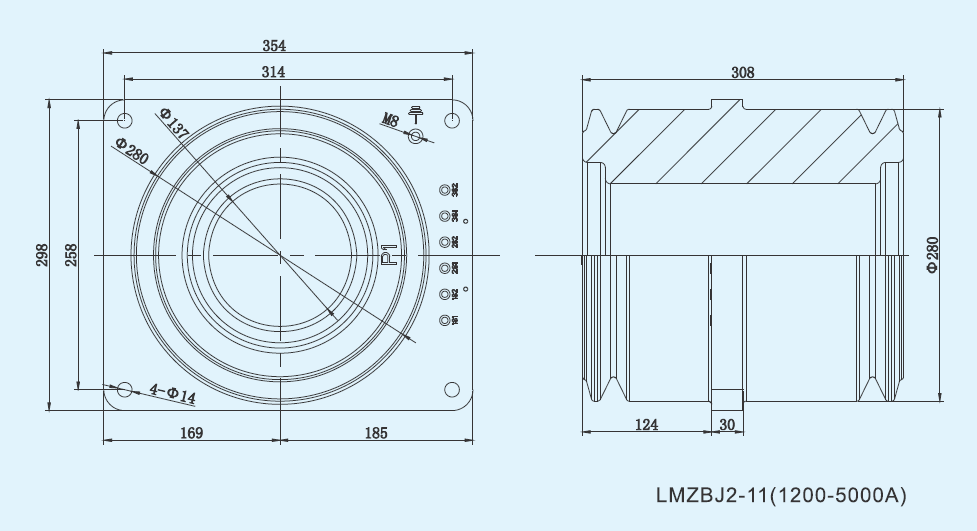

Outline drawing
