11kv High Voltage Current Transformer

Name: 11kv High Voltage Current Transformer
Brand: all-electronics-online.com
SKU: 829803105
Availability: InStock
Rating: 4.6 (84 reviews)

Price:	US $ 235/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZBJ9-10A
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

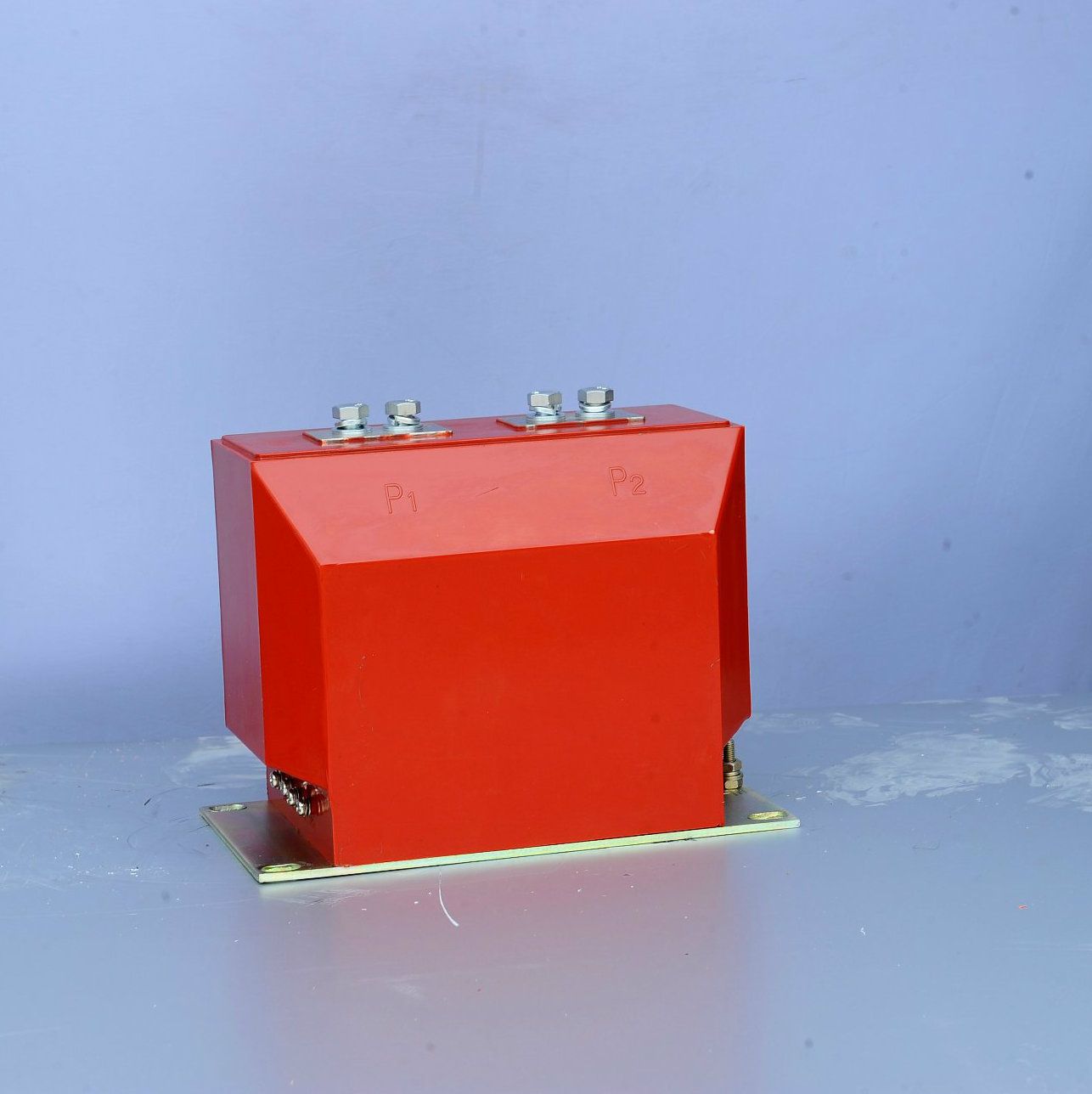

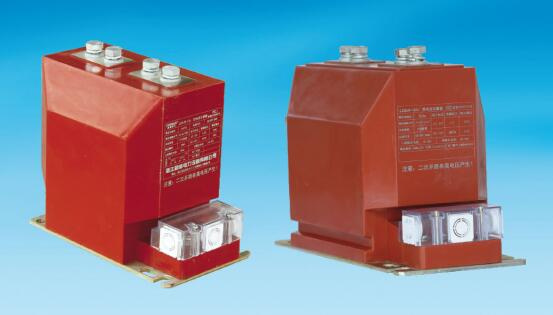

10KV 50HZ LZZBJ9-10A Support type Hermetically casted insulation current transformer

Product description

LZZBJ9-10A, A1G, A2G type current transformer is epoxy resin cast strut conditions indoors. For protection or energy measurement of the power system with the rated frequency 50Hz rated voltage of 10kV and below, which LZZBJ9-10A1G, the A2G installed in the center switchgear or other types of switchgear

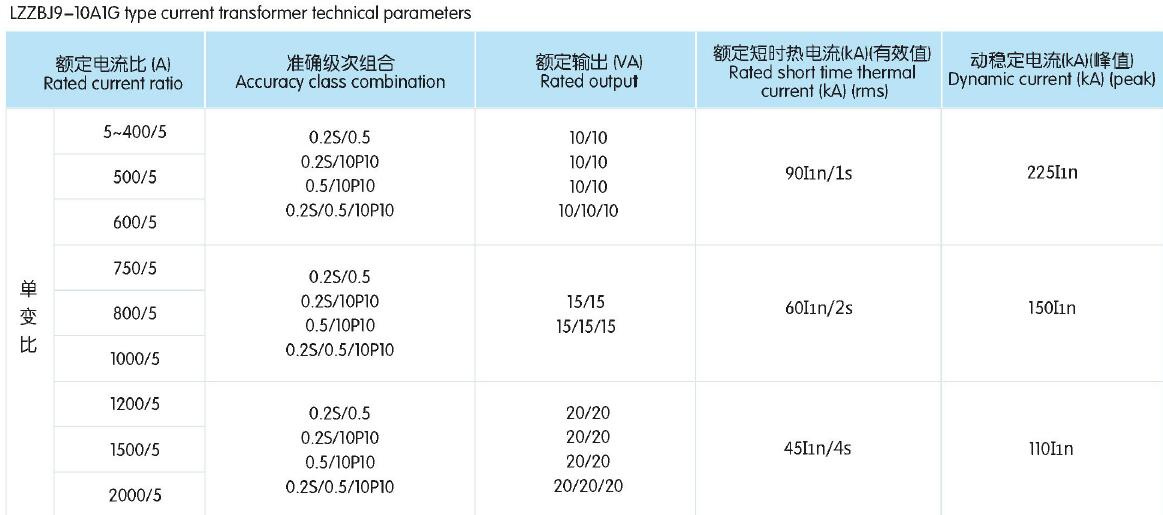

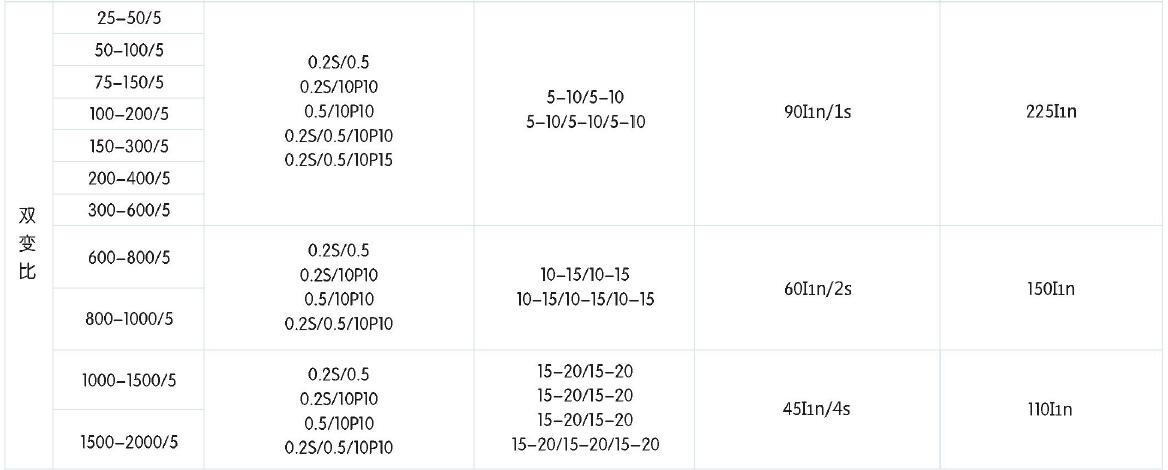

Technical Parameters:

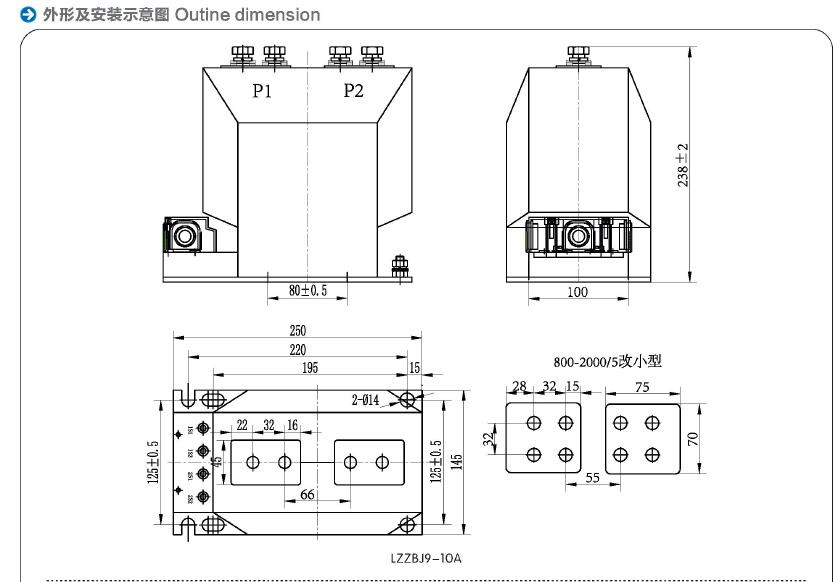

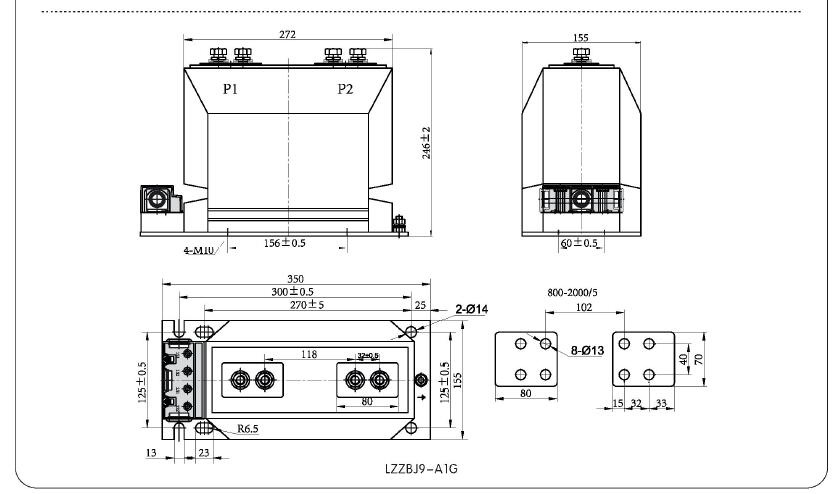

Outline Dimension
