11kv Indoor Block Type CT/ Current Transformer with Large Ratio for Switchgear

Name: 11kv Indoor Block Type CT/ Current Transformer with Large Ratio for Switchgear
Brand: all-electronics-online.com
SKU: 780867615
Availability: InStock
Rating: 4.4 (140 reviews)

Price:	US $ 265-280/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-11G-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Current Transformer:	Mv
Instrument Transformer:	Three Phase
12kv:	Epoxy Resin
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

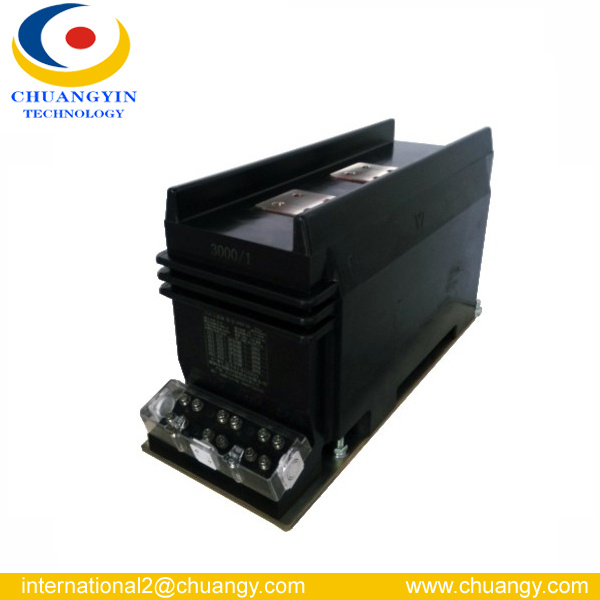

LZZBJ9-11G current transformer (CT) epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the current, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

The iron core adopts advanced cold-rolled silicon steel sheet, high voltage outgoing line of primary winding was fetched out from top of the product, outgoing line of secondary winding was fetched out from transverse side of the product, IEC68869-1&2.

Technical Data:

1) Rated insulation level: 12/28/75kV
2) Rated frequency: 50/60Hz
3) Installation site: Indoor
4) Technical standard: IEC 60044-1:2003, IEC 61869-1&2

Specification

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p 0.2 (s)/0.5/10p 0.2 (s)/0.5/10p/10p/10p 0.2 (s)/0.5/10p/10p/10p/10p	10 15	15	15 20	10 15 20	5 (10)	150I1n	375I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2500-3150/5							100	160
3500-4000/5							100	160

Note:Upon request we are glad to offer transformers according to other technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
