11kv Indoor Epoxy Resin Block Type Current Transformer

Name: 11kv Indoor Epoxy Resin Block Type Current Transformer
Brand: all-electronics-online.com
SKU: 757271595
Availability: InStock
Rating: 4.3 (98 reviews)

Price:	US $ 100-110/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ15-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Small Size:	11kv
Current Transformer:	Epoxy Resin
China:	Factory
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

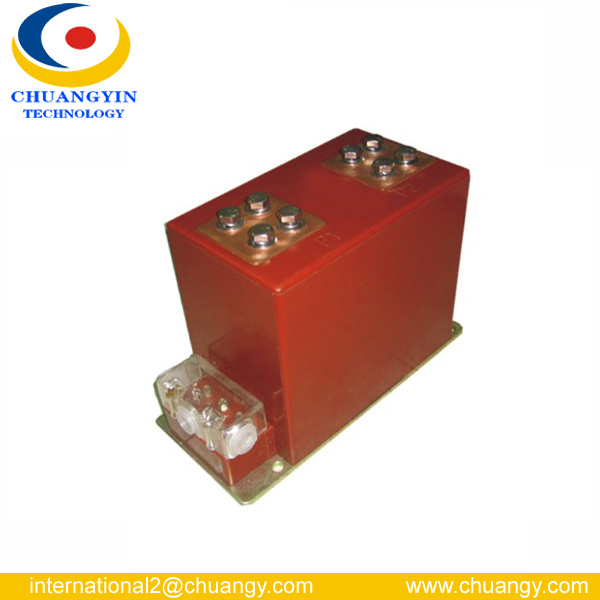

LZZBJ15-11 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has two secondary windings (one measuring winding and one protective winding). It is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
Main technical parameter

Rated voltage: 11kV
Rated secondary current: 5A or 1A
Rated insulation level: 12/28/75kV
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
Other technical parameter pls see as follow:

Rated current ratio (A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
10-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15	15	5 (10)	10 15 20	100I1n	250I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5				20			63	125
1000/5							80	160
1200~1500/5							80	160
1500~2000/5							100	160
2000~2500/5							100	160

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

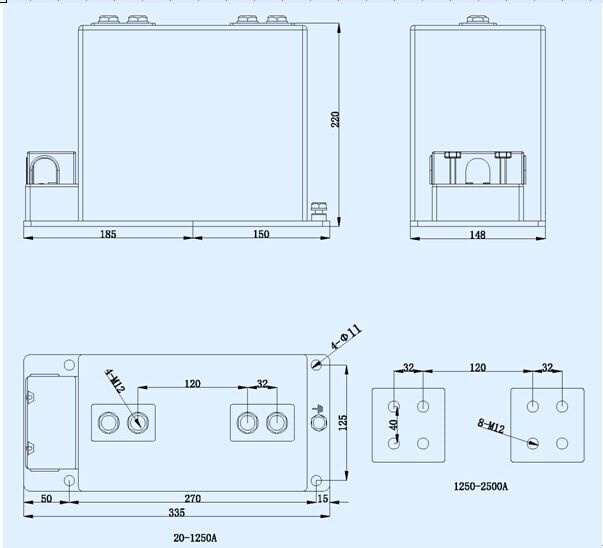

Outline drawing
