Product Description

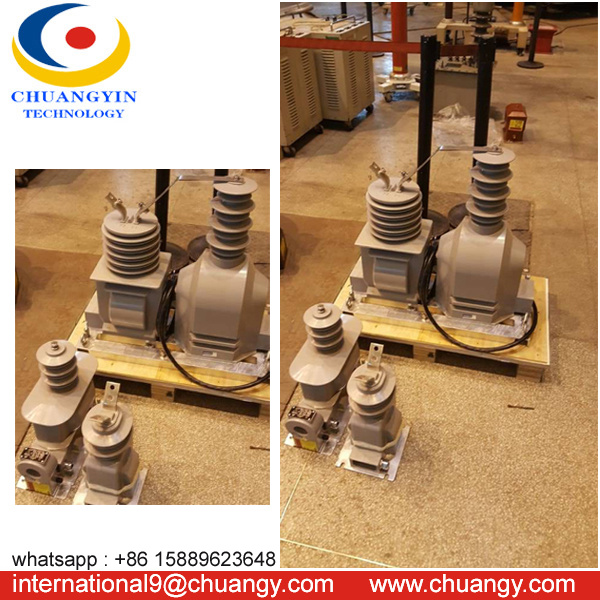

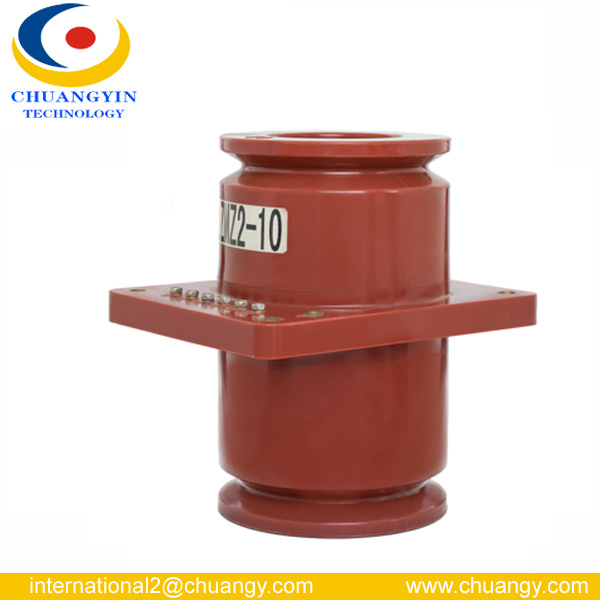

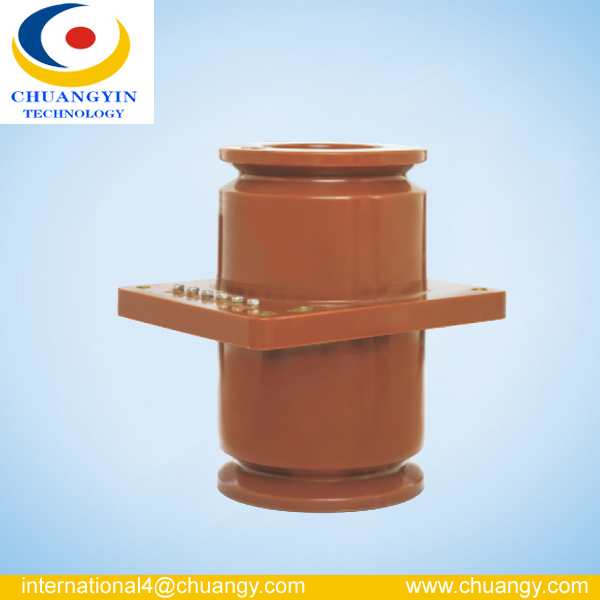

We are Manufacturer.LMZB(J)2-11 epoxy resin casting busbar type current transformer, is widely used for measuring current, electric energy and protective relaying in the electrical system with rated frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV. The product has three secondary windings (one measuring winding & two protective windings or two measuring windings &one protective winding). Rated primary current is 1000-5000A and rated secondary current is 5A.
Main technical parameter:1. Rated voltage: 5 kV or 11kV etc
2. Rated secondary current: 5A or 1A
3. Rated insulation level: 7.2/20/60 kV or 12/28/75 kV
4. Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers| Type | Rated Transformation ratio (A) | Accuracy classes combination | Rated output Cos∮=0.8 (VA) | FS | ALF |
| Measuring | Protective |
| 0.2(S) | 0.5 | 10P |
| LMZB2-11 | 400~1000/5 | 0.2(S)/0.2(S)
0.2(S)/0.5
0.2(S)/10P
0.5/10P
0.2S/0.5/10P
0.2/0.5/10P | 10 | 15 | 5.
10 | 5
(10) | 10
15
20 |
| LMZBJ2-11 | 1000/5 | 15
20 | 15
20
30 | 15
20
30
40 |
| 1200/5 |
| 1500/5 |
| 2000/5 |
| 3000/5 |
| 4000/5 |
| 5000/5 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

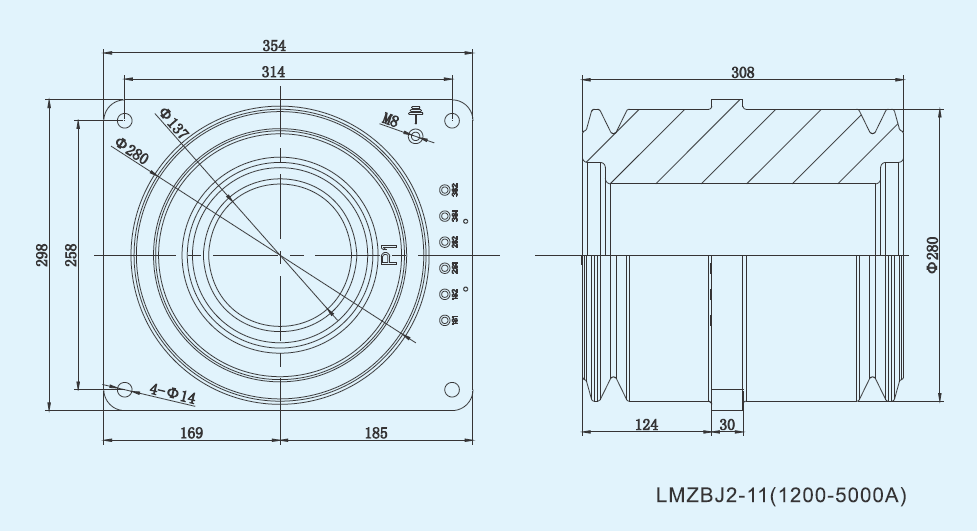

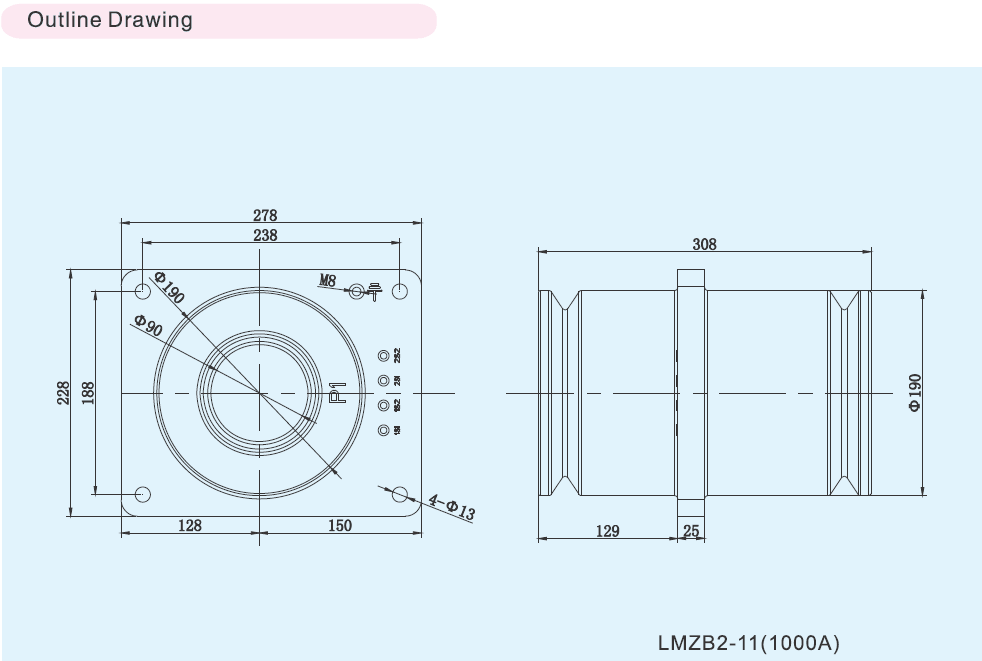

Outline drawing
Remarks:Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Laboratory:

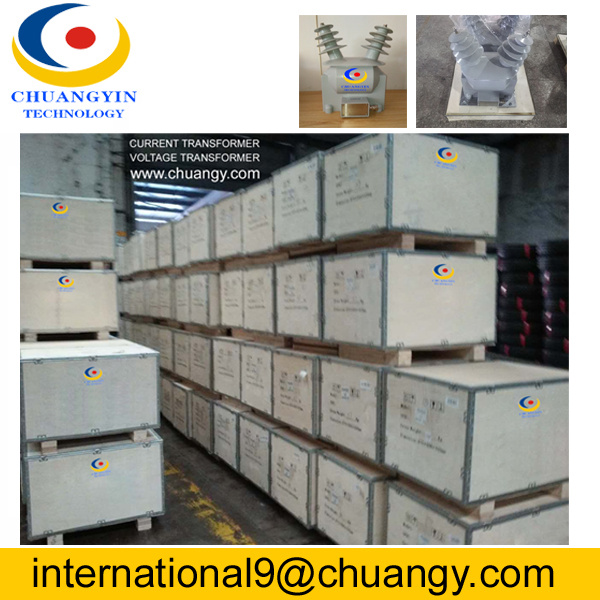

Packing list:
VT/PT/Potential Transformer/Tension Transformer/Pressure Transformer/Voltage Transformer:
CHUANGYIN LMZB(J)2-11 12kV Outdoor, Single Phase Epoxy Resin Voltage Transformer.
Unit Price: USD300.00 (FOB SHENZHEN).
Net Weight: 22.5kg.
Gross Weight: 92.5kg.(3pcs/plywood)
Volume: 1250* 450 * 550 = 0.03CBM.
Delivery Time: 3 Days.
Catalog Please Check The Attachment: LMZB(J)2-11, Please Contact Ms.Becky
