Name: 11kv Indoor Phase-Phase/Double-Pole Potential Transformer (PT) of Voltage Transformer (VT)
Brand: all-electronics-online.com
SKU: 757596465
Availability: InStock
Rating: 4.5 (97 reviews)

Price:	US $ 105-110/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZ10-11C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	PT
Voltage Transformer:	Vt
Potential Transformer:	Double-Pole
Phase-Phase:	11kv
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

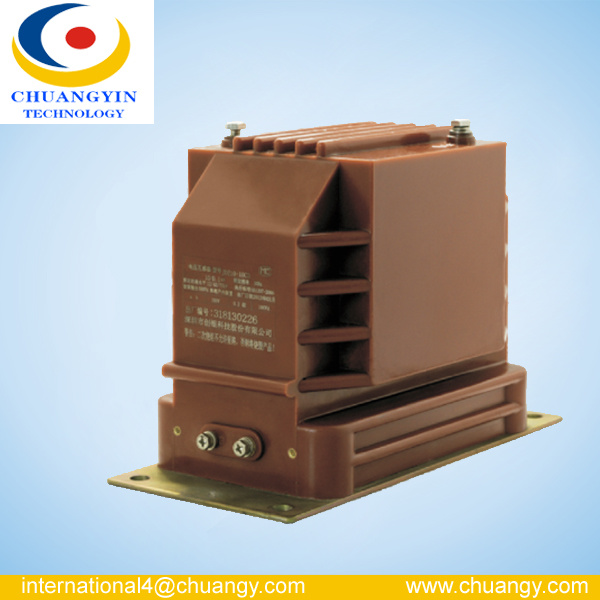

JDZ10-11C voltage transformer/PT/VT, epoxy resin casting and double pole insulated fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.

Main technical parameter

1. Rated primary voltage: 11kV
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers

Type	Rated primary voltage (kV)	Rated secondary voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZ10-3C JDZ10-6C JDZ10-11C	3 6 11	0.1 0.11	0.2	15	300	3.6/10/40 7.2/20/60 12/28/75
			0.5	30
			1	60
		0.1/0.1 0.11/0.11	0.2/0.2	10/10	150
			0.2/0.5	10/15
		0.1/.022 0.11/0.22	0.2/6P(3P)	15/200	300
			0.5/6P(3P)	25/200

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

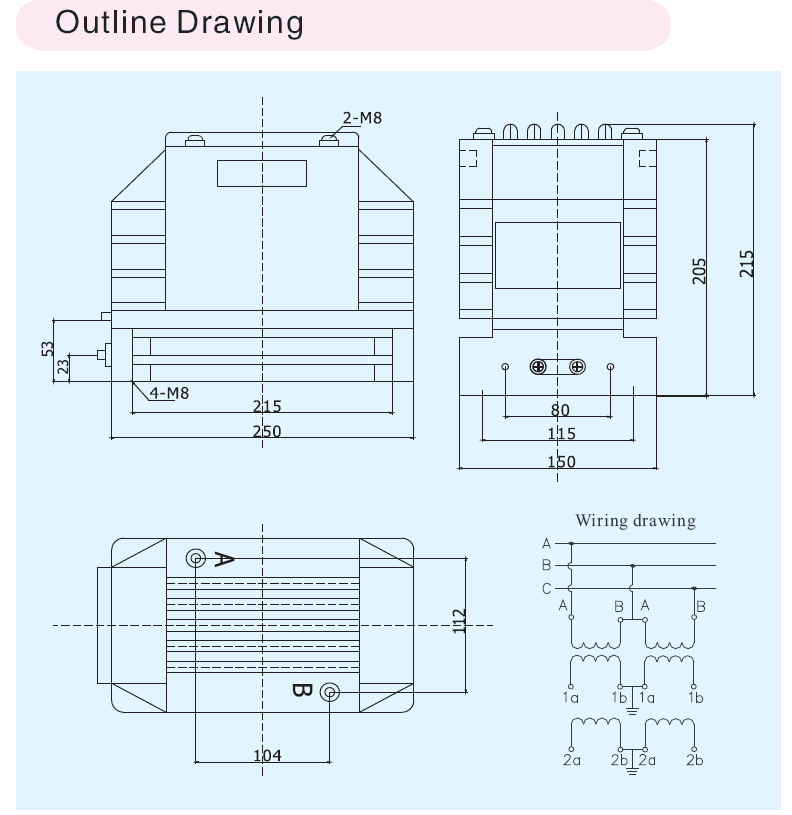

Outline Drawing
