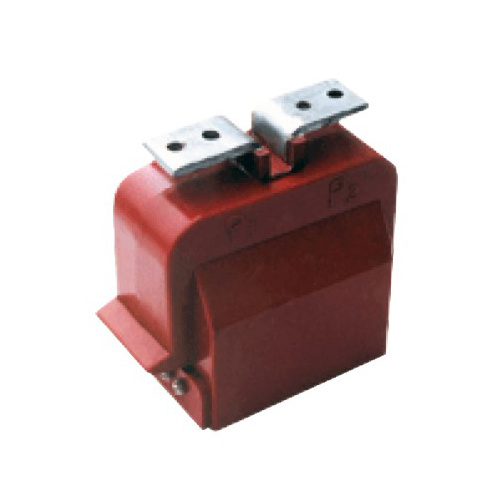

11kv Indoor Single-Phase Epoxy Resin Type CT/Current Transformer

Name: 11kv Indoor Single-Phase Epoxy Resin Type CT/Current Transformer
Brand: all-electronics-online.com
SKU: 757272775
Availability: InStock
Rating: 4.8 (82 reviews)

Price:	US $ 95-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LFS-11 Current Transformer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Mv:	Epoxy Resin
11kv:	Current Transformer
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

LFS-11 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has two secondary windings (one measuring winding and one protective winding). It is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
Main technical parameter

Rated voltage: 11kV
Rated secondary current: 5A or 1A
Highest voltage for equipment: 12kV
Rated power-frequency withstand voltage: 28kV
Rated lightning impulse withstand voltage: 75kV
Rated insulation level: 12/28/75kV
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
Other technical parameter pls see as follow:

Rated current ratio(A)	Secondary accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
5~200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15	15	5 (10)	10	80I1n	200I1n
300/5							20	50
400/5							30	75
500/5							30	75
600/5							40	80
800/5							40	80
1000/5							63	105

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

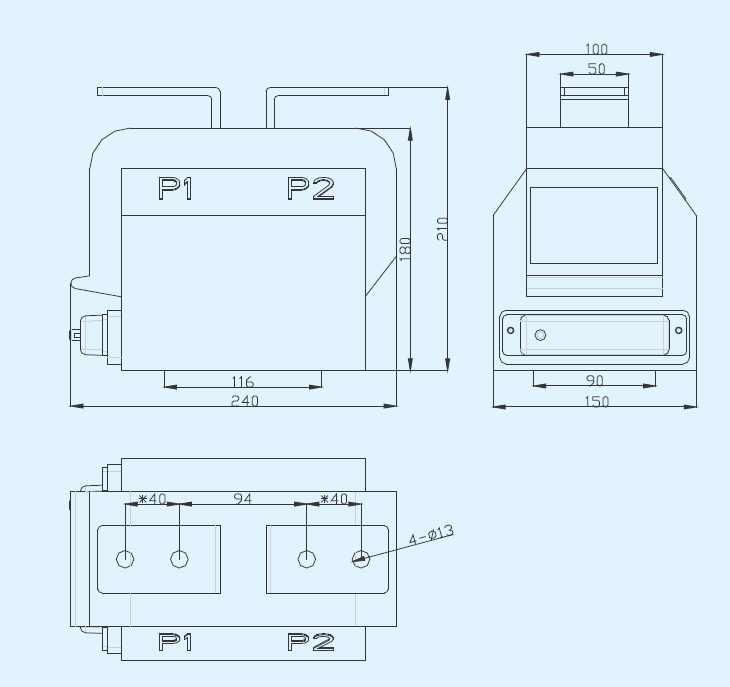

Outline drawing
