11kv Indoor Single Pole Potential/ Voltage Transformer/PT/Vt

Name: 11kv Indoor Single Pole Potential/ Voltage Transformer/PT/Vt
Brand: all-electronics-online.com
SKU: 757599615
Availability: InStock
Rating: 4.7 (99 reviews)

Price:	US $ 220-230/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZXF14-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	PT
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

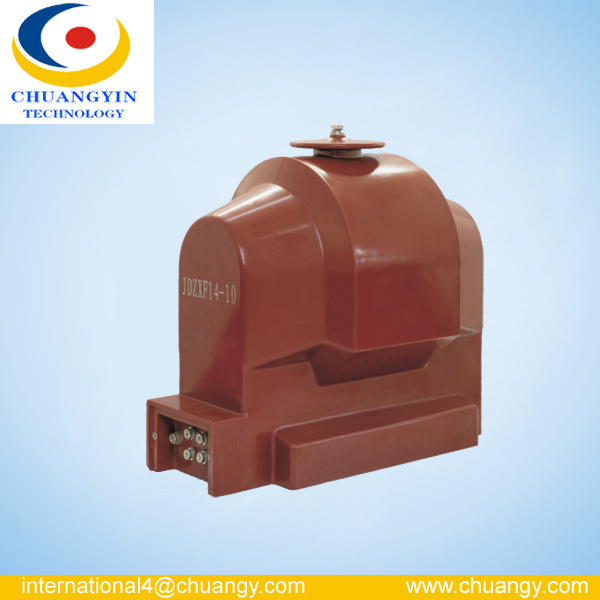

JDZXF14-11 single phase, four-winding earthed voltage transformer, adopts indoor epoxy resin material casting and half enclosed construction, is used for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5kV.
The product has three secondary windings used for measuring, supervising and protection. Secondary windings and primary windings are winded one concentric circle, the iron core is winded core with small no-load current and no-load loss.

Technical parameter

1.. Rated primary voltage: 11/ kV etc.
2. Rated voltage of metering windings and supervising windings: 100/ V or 110/ V
3. Rated voltage of residual voltage windings: 100/ 3 V or 110/ 3 V

Type	Rated transformation ratio(kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZXF14-11	13..8/ /0.1/ /0.1/3 13.8/ /0.11/ /0.11/3	0.2/6P(3P)	40/120	600	12/28/75
		0.5/6P(3P)	80/120
		1/6P	120/120
	13..8/ /0.1/ /0.1/ /0.1/3 13..8/ /0.11/ /0.11/ /0.11/3	0.2/0.2/6P(3P)	15/15/120	300
		0.2/0.5/6P(3P)	20/30/120
		0.5/0.5/6P(3P)	50/50/120

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

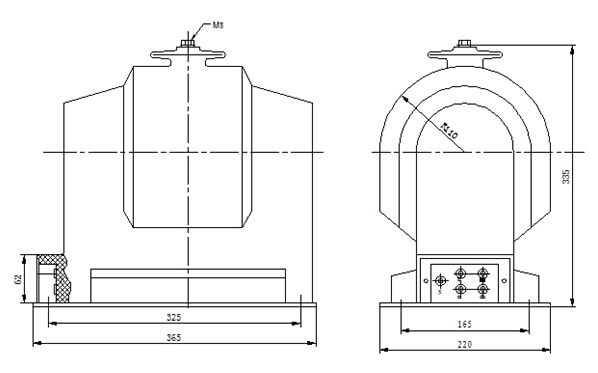

Outline drawing
