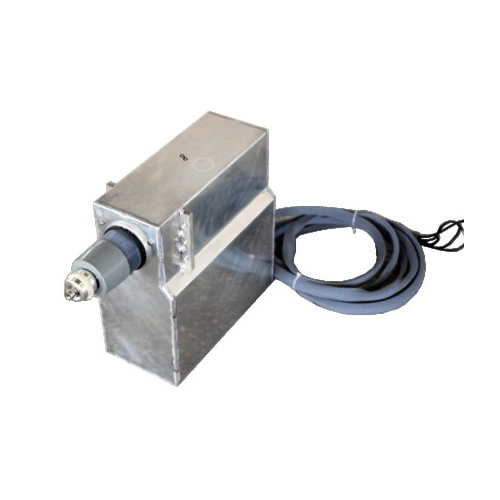

11kv Metal Shell Potential/Voltage Transformer/PT/Vt

Name: 11kv Metal Shell Potential/Voltage Transformer/PT/Vt
Brand: all-electronics-online.com
SKU: 757601095
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	US $ 145-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZXJ1-11RC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	Voltage Transformer
Metal Shell:	11kv
Vt:	PT
Power Supply:	Factory
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

JDZXJ1-11RC voltage transformer(PT/VT), is used indoor single phase or three phase AC circuit for measuring electric capacity, voltage and protective relaying with the frequency of 50Hz-60Hz and rated voltage 11kV.

The product adopts epoxy resin casing full-closed structure with low magnetism density and large creepage distance of external insulation, the product has high reliability and maintenance free.

Qualification:CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA

Commpany Information:
With Green and Smart concept,we are offerring all series of split core Current Transfermer/Sensor,Rogowski coil to over 30 countries in the world.

Specification

Type	Rated Primary Voltage (kV)	Rated Secondary Voltage (kV)	Accuracy Classes Combination	Rated Output (VA)	Thermal Limiting Output (VA)	Rated Insulation Level (kV)
JDZXJ1-11RC	11/√3	0.11/√3	0.2	15	300	12/28/75
			0.5	50
			1	80
		0.1111/√3/0.1111/√3	0.2/6P(3P)	15/100	300
		0.1111/√3/0.1111/√3	0.5/6P(3P)	50/100	300

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
