11kv Outdoor Combined of Instrument Transformer Three-Phase

Name: 11kv Outdoor Combined of Instrument Transformer Three-Phase
Brand: all-electronics-online.com
SKU: 788645745
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	US $ 978-1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JLSZW6-12-002
Outdoor:	CT
11kv:	Outdoor Combined
Instrument Transformer:	Transformer
Three-Phase:	Voltage Transformer
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

Description:

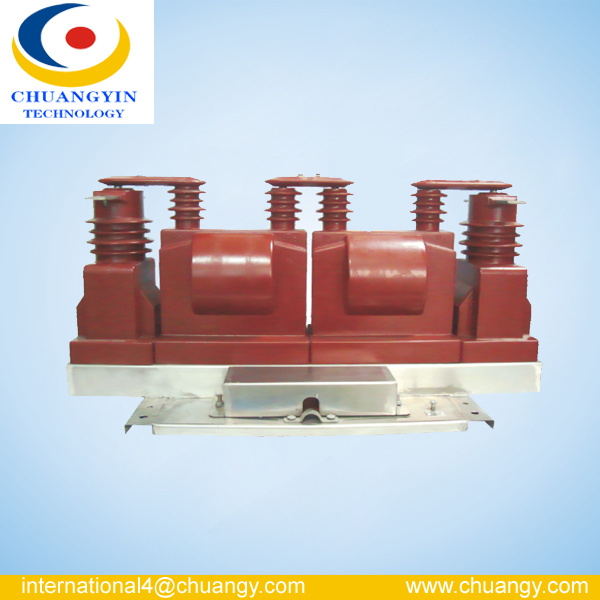

JLSZW6-12 three-phase outdoor epoxy resin casting combined transformer (also called high voltage outdoor powers
metering cabinet), is made up of two current transformers and two potential transformers
Widely used outdoor for measuring current and electric energy in the electric system with the frequency 50Hz or 60 Hz and highest voltage for equipment 12kV
The product has the feature of high precision, low temperature rise, fireproofing, explosion protection, electricity theft prevention and good dynamic hot stability and more
The product has the feature of high precision, low temperature rise, fireproofing, explosion protection, electricity theft prevention and good dynamic hot stability and more

Main Technical Parameter:

Voltage transformer

Rated voltage ratio (kV)	Accuracy class	Rated output (VA)	Max output (VA)	Rated insulation level (kV)
11/0.11 11/0.11	0.2 or 0.5	15 or 25	300	12/28/75kV

Current transformer

Rated voltage ratio (kV)	Accuracy class	Rated output (VA)	Rated short-time themal current (Ith)	Rated dynamic current	Rated insulation level (kV)
5-300/5	0.2 or 0.2S	7.5 or 15	15 or 25	2.5 Ith	12/28/75kV

Remarks:Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

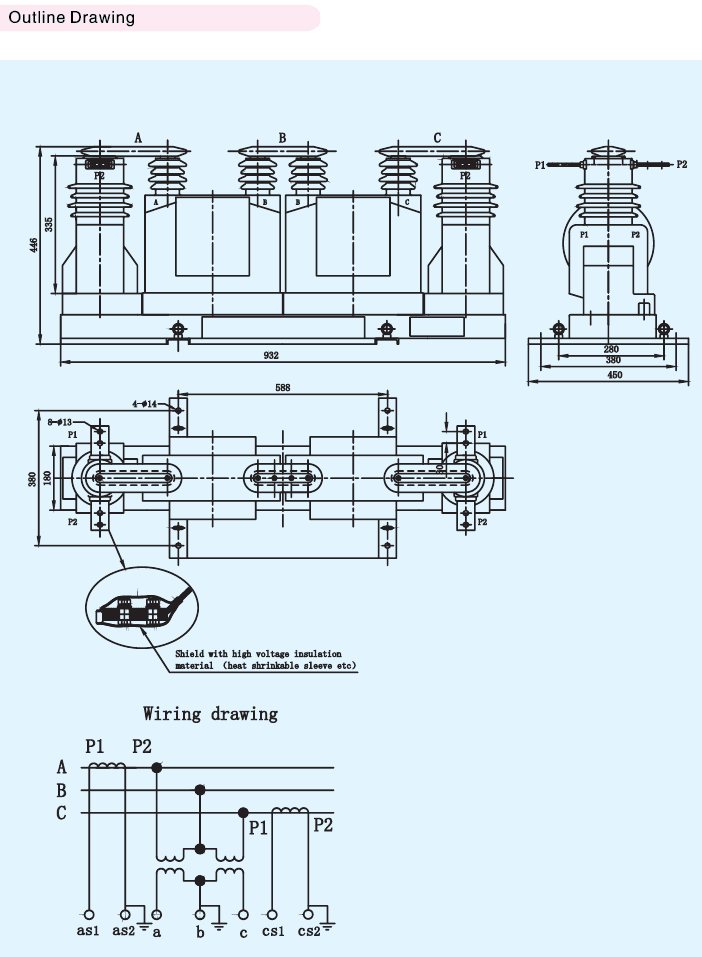

Outline Drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
