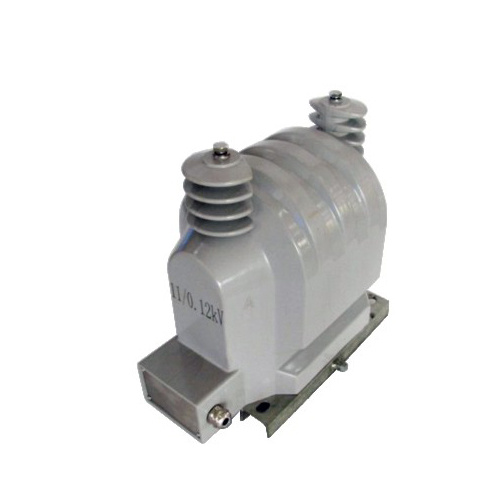

11kv Outdoor Double Pole Potential Transformer (PT)

Name: 11kv Outdoor Double Pole Potential Transformer (PT)
Brand: all-electronics-online.com
SKU: 757687315
Availability: InStock
Rating: 4.3 (75 reviews)

Price:	US $ 466-480/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZW14-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
11kv:	Double Pole
Outdoor:	Epoxy Resin
PT:	Vt
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

JDZW14-12 voltage transformer, outdoor epoxy resin casting and full-closed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV

Usage Terms
1. Ambient Temperature -25-40ºC
2. Installation Site outdoor
Key Technical Data

Rated Frequency: 50-60Hz
Load power factor cosΦ=0.8 (lagging)
Technical standard accords with IEC60044-2:2003

Type	Rated primary Voltage (kV)	Rated secondary Voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting Output (VA)	Rated Insulation level (kV)
JDZW14-12	11	0.1 0.11	0.2	60	1000	12/28/75
			0.5	100
			1	150
		0.22	6P	600	1000
		0.1/0.1 0.11/0.11	0.2/0.2	25/25	500
			0.2/0.5	25/50
			0.5/0.5	40/40
		0.1/0.22 0.11/0.22	0.2/6P	25/500	800
		0.1/0.22 0.11/0.22	0.5/6P	50/500	800
JDZXW14-12	11/	0.1/ /0.1/3 0.11/ /0.11/3	0.2/6P	40/150	600
			0.5/6P	80/150
			1/6P	150/150

Remarks: Upon request we are glad to offer transformers according to other technical specs.

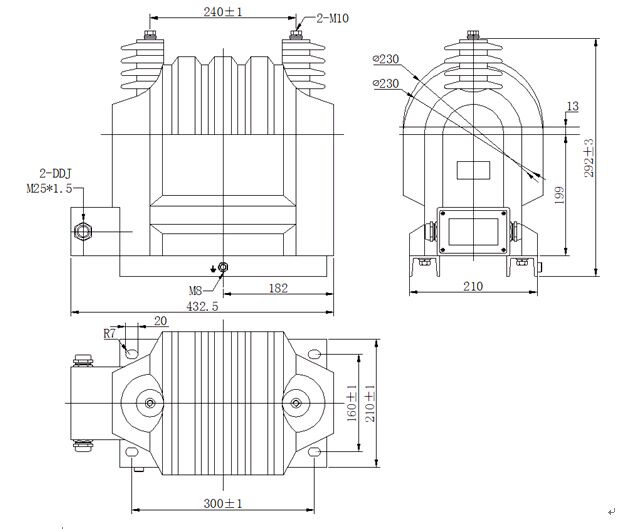

Outline Drawing

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Outline Drawing

Note:
Please browse our website and download product catalogue for detailed information.
Pls contact me for much more information below:

SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY GROUP )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code: 518057
Tel: +86 0755-86000302/ 8600709
Fax: +86 0755-86000614
Web: www.chuangy.com

Ms.Becky Wang
Business Development Executive
Mob: +86 15889623648
