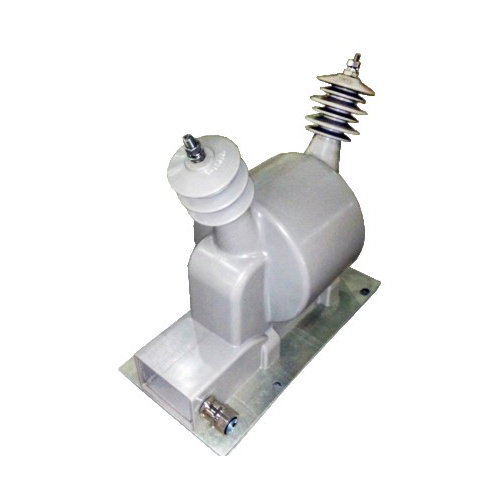

11kv Outdoor Phase-Phase/Double-Pole PT of Voltage Transformer

Name: 11kv Outdoor Phase-Phase/Double-Pole PT of Voltage Transformer
Brand: all-electronics-online.com
SKU: 757687655
Availability: InStock
Rating: 4.8 (96 reviews)

Price:	US $ 410-420/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZW14-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outdoor:	PT
11kv:	Double Pole
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

JDZW16-12 voltage transformer, outdoor epoxy resin casting and full-closed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV

Key Technical Data

Rated Frequency: 50-60Hz
Load power factor cosΦ=0.8 (lagging)

C Installation Site outdoor
D Technical standard accords with IEC60044-2:2003

Type	Rated primary Voltage (kV)	Rated secondary Voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting Output (VA)	Rated Insulation level (kV)
JDZW16-12	11	0.1 0.11	0.2	30	500	12/28/75
			0.5	50
			1	80
		0.1/0.1 0.11/0.11	0.2/0.2	15/15	500
			0.2/0.5	15/25
		0.1/0.22 0.11/0.22	0.2/6P(3P)	30/800	800
			0.5/6P(3P)	50/800

Remarks: Upon request we are glad to offer transformers according to other technical specs

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
