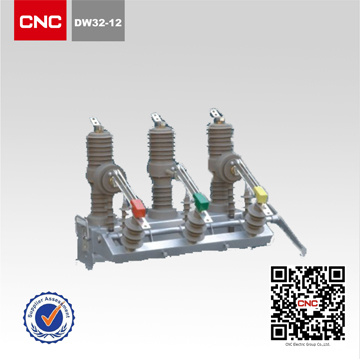

11kv Pole Mounted Vacuum Circuit Recloser (ZW32-12C)

Prod Model:	ZW32
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Insert
Poles Number:	3
Certification:	CCC
Structure:	Conventional Circuit Breaker

Product Description

ZW32-type outdoor high voltage vacuum circuit breake

1. Rated voltage 12kV, AC 50Hz
2. Long life, high reliability and good weather resistance, easy to transport, cost-effective.
3. Mechanical life: Up to 10, 000 times.

General:
ZW 32 type is outdoor medium voltage vacuum circuit breaker for rated voltage 12kV, three-phase AC 50Hz outdoor distribution equipment, which applies to power distribution system substation and industrial and mining enterprises to protect and control, and rural power grid frequency operation premises. It is mainly used for breaking and closing the power system load current, over load current and short-circuit current.
Vacuum interrupt outdoor insulation using silicone rubber sleeves, long life, high reliability and good weather resistance, structure, mechanical life of up to 10000 times.
The circuit breaker can be with controller as recloser, to achieve remote control, telemetry, remote, remote adjust, "four remote" features.
Features: No combustion and explosion hazards, maintenance-free, small size, light weight (less than 100kg), long life, safe, reliable, simple operation, maintenance and easy installation.


Working Condition:

1. Altitude not exceeding 2000m;
2. Ambient temperature: -30° C ~+40° C;
3. Pressure: No more than 700 pa(the equivalent of wind speed 34m/s)
4. Earthquake level not exceeding 8 class;
5. Pollution level: 3

Item	Unit	parameter
Rated  voltage	KV	12
Rated  short-term  frequency  withstand  voltage	KV	42
Rated  lightning  impulse  withstand  voltage	KV	75
Rated  frequency	HZ	50/60
Rated  current	A	630	1250
Rated  short-circuit  break  current	KA	20
Rated  short-term  withstand  current	KA	20
Rated  peak  withstand  current	KA	50
Rated  short  circuit  close  current	KA	50
Rated  single/back  to  back  capacitor  bank  break  current	A	630/400
Rated  short-circuit  current  duration	S	4
Rated  short-circuit  current  breaking  times	t	50
Rated  operation  voltage	V	220
Meachanical  life	t	10000
Over-current  regulation	A	1~10
Fast  tripping  current	A	6~20
Delay  time	ma	40~850
Telecontrol  distance	m	> 30
Coincidence  time	t	0~3
Rated  operation  order		O-0.3s-CO-180s-CO
Output  capacity	W	600
Delay  time	ms	40~850
