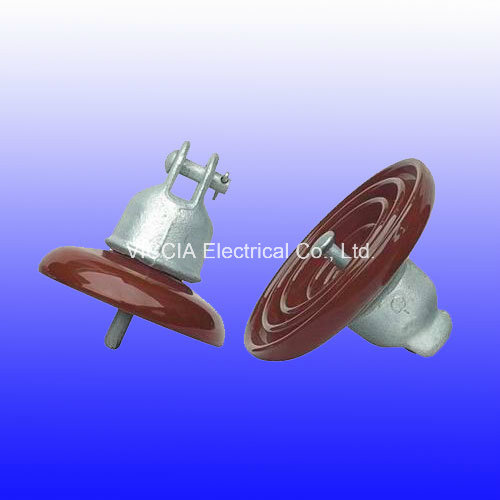

11kv Porcelain Disc Insulator

Name: 11kv Porcelain Disc Insulator
Brand: all-electronics-online.com
SKU: 740851315
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	US $ 3-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI 52-3
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	Disc Type

Product Description

ANSI 52-3 70kn disc electrical porcelain Insulator
material: porcelain
main dimension:D=255mm,H=146mm
leakage distance::292mm

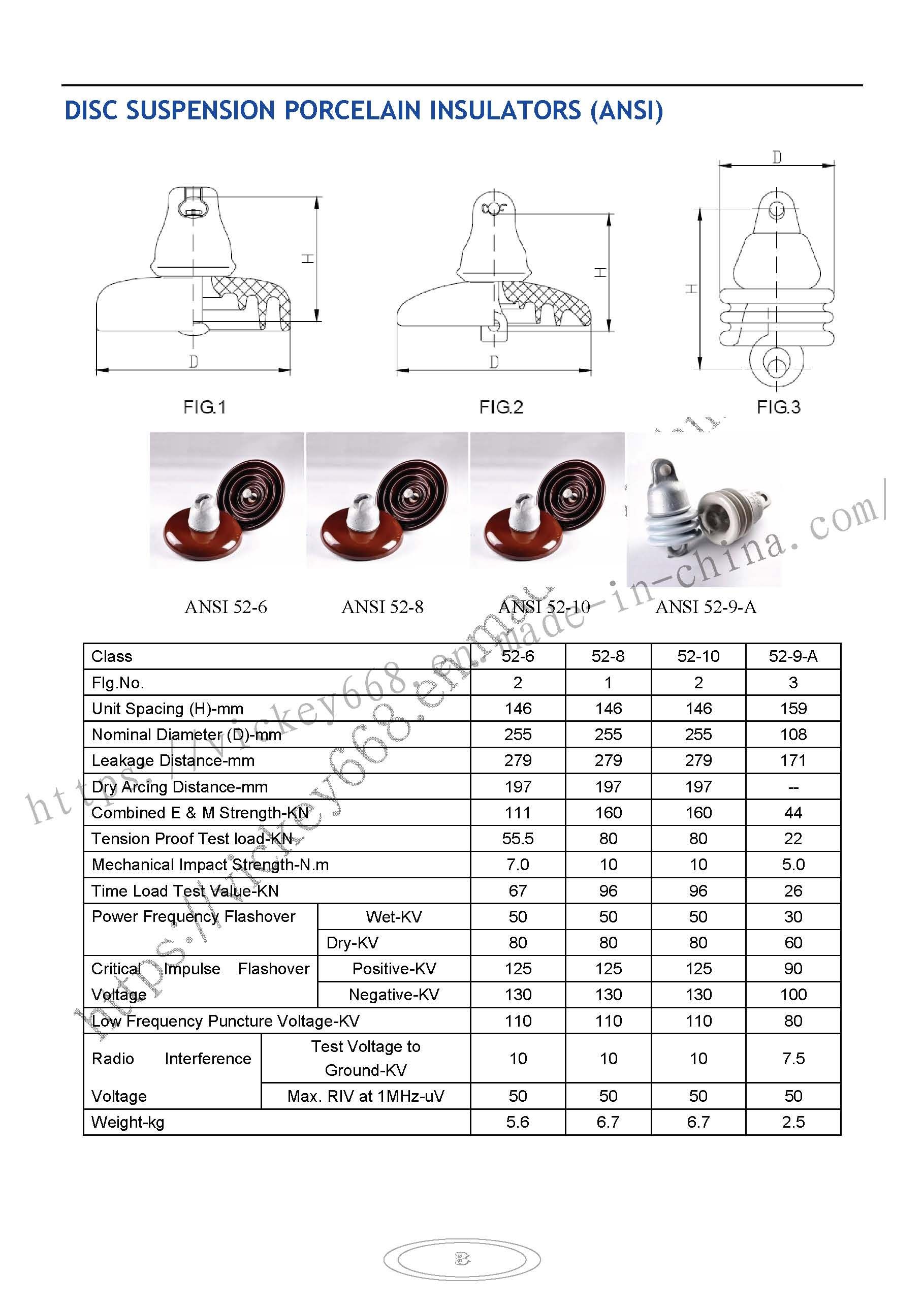

Class ANSI	Main Dimension in (mm)		Leakage Distance in (mm)	Combined M & E Strength b (KN)	Mechanical Impact Strength in-1b(N-m)	Time Load Test Value 1b (KN)	Average Flashover Voltage				Power Frenquency Puncture Voltage KV	Radio Influence Voltage
	D (max)	H					Power Frequency		Critical Impulse			Test Voltage To Ground KV	Max Riv At 1MHz Uv
	D (max)	H					Dry kv	Wet kv	Positive kv	Negative kv		Test Voltage To Ground KV	Max Riv At 1MHz Uv
52-1	6 1/2 (165)	5 1/2 (141)	7 (178)	10000 (44)	45 (5.0)	6000 (27)	60	30	100	100	80	7.5	50
52-2	8 (203)	5 3/4 (146)	8 1/4 (210)	15000 (67)	50 (5.5)	10000 (44)	65	35	115	115	90	7.5	50
52-3	10 3/4 (255)	5 3/4 (146)	11 1/2 (292)	15000 (67)	55 (6.0)	10000 (44)	80	50	125	130	110	10	50
52-4	10 3/4 (255)	5 3/4 (146)	11 1/2 (292)	15000 (67)	55 (6.0)	10000 (44)	80	50	125	130	110	10	50
52-5	10 3/4 (255)	5 3/4 (146)	11 (279)	25000 (111)	60 (7.0)	15000 (67)	80	50	125	130	110	10	50
52-6	10 3/4 (255)	5 3/4 (146)	11 (279)	25000 (111)	60 (7.0)	15000 (67)	80	50	125	130	110	10	50
52-9	4 1/2 (114)	6 1/4 (160)	6 3/4 (171)	10000 (44)	45 (5.0)	6000 (27)	60	30	100	90	80	7.5	50

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
