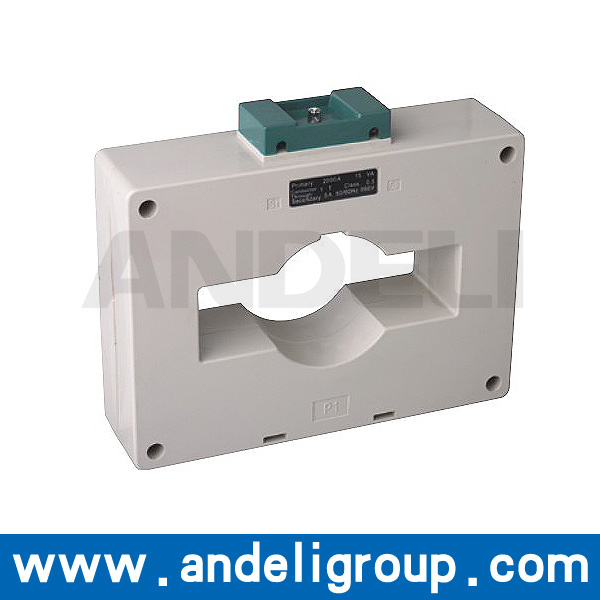

| Prod Model: |
MSQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Primary Current: |
5A-150A |
| Type: |
Current Transformer |
| Phase: |
Single |
| Application: |
Instrument |
Product Description
Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application
Primary current: 5A-150A
Secondary current: 5A, 1A
Standard approval: VDE0414, BS7626, IEC185
Maximum voltage: 0.66KV
Frequency: 50-60KV
Rated load: 10VA
Class: 0.5, 1.0
Short-time thermal current: 1th=60Ih
Rated security coefficient: FS5
Mounting methods: By once-lead or by copper bar
WITH BUSBAR
|
Type |
Rated current(A) |
Rated power(VA) |
Weight(Kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-A |
30/5 |
5-10 |
5-10 |
0,60 |
|
40/5 |
5-10 |
5-10 |
0,60 |
|
20/5 |
5-10 |
5-10 |
0,60 |
|
60/5 |
5-10 |
5-10 |
0,60 |
|
75/5 |
5-10 |
5-10 |
0,60 |
|
80/5 |
5-10 |
5-10 |
0,60 |
|
100/5 |
5-10 |
5-10 |
0,60 |
|
120/5 |
5-10 |
5-10 |
0,60 |
|
125/5 |
5-10 |
5-10 |
0,60 |
|
200/5 |
5-10 |
5-10 |
0,60 |
|
250/5 |
5-10 |
5-10 |
0,60 |
WINDOWS TYPE
Bar: 30x10mm conductor: 20mm
|
Type |
Rated current(A) |
Rated power(VA) |
Weight (Kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-30 |
30/5 |
- |
1 |
0.4 |
|
40/5 |
- |
1 |
0.4 |
|
50/5 |
- |
1 |
0.4 |
|
60/5 |
- |
1 |
0.4 |
|
75/5 |
1 |
1.5 |
0.4 |
|
80/5 |
1.5 |
2.5 |
0.4 |
|
100/5 |
2.5 |
5 |
0.4 |
|
150/5 |
5-10 |
5-10 |
0.4 |
|
200/5 |
5-10 |
5-10 |
0.4 |
|
250/5 |
5-10 |
5-10 |
0.4 |
|
300/5 |
5-10 |
5-10 |
0.4 |
WINDOWS TYPE
Bar: 40x10mm conductor: 30mm
|
Type |
Rated current(A) |
Rated power(VA) |
Weight(Kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-40 |
100/5 |
2.5 |
2.5 |
0.38 |
|
150/5 |
3 |
5 |
0.38 |
|
200/5 |
5 |
5-10 |
0.38 |
|
300/5 |
5-10 |
5-10 |
0.38 |
|
400/5 |
5-10 |
5-10 |
0.38 |
|
500/5 |
5-10 |
5-10 |
0.38 |
WINDOWS TYPE
Bar: 60x20mm conductor: 40mm
|
Type |
Rated current(A) |
Rated power(VA) |
Weight (Kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-60 |
250/5 |
5 |
5 |
0.60 |
|
300/5 |
5 |
5 |
0.60 |
|
400/5 |
5-10 |
5-10 |
0.60 |
|
500/5 |
5-10 |
5-10 |
0.60 |
|
600/5 |
10-15 |
10-15 |
0.60 |
|
750/5 |
10-15 |
10-15 |
0.60 |
|
800/5 |
10-15 |
10-15 |
0.60 |
|
1000/5 |
15 |
15 |
0.60 |
WINDOWS TYPE
Bar: 60x20mm conductor: 80mm
|
Type |
Rated current(A) |
Rated power(VA) |
Weight (Kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-80 |
750/5 |
15 |
15 |
0.75 |
|
800/5 |
15 |
15 |
0.82 |
|
1000/5 |
15 |
15 |
0.89 |
|
1200/5 |
15 |
15 |
0.99 |
|
1500/5 |
15 |
15 |
1.02 |
WINDOWS TYPE
Bar: 60x20mm conductor: 80mm
|
Type |
Rated current(A) |
Rated power(VA) |
Weight (Kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-100 |
1500/5 |
15 |
15 |
0.80 |
|
1600/5 |
15 |
15 |
0.80 |
|
2000/5 |
15 |
15 |
0.94 |
|
2250/5 |
15 |
15 |
0.98 |
|
2500/5 |
15 |
15 |
1.10 |
|
3000/5 |
15 |
15 |
1.16 |
WINDOWS TYPE
Bar: 60x20mm conductor: 80mm
|
Type |
Rated current(A) |
Rated power(VA) |
Weight (Kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-125 |
1500/5 |
15 |
15 |
1.0 |
|
2000/5 |
15 |
15 |
1.15 |
|
2500/5 |
15 |
15 |
1.45 |
|
3000/5 |
15 |
15 |
1.60 |
|
4000/5 |
15 |
15 |
1.90 |
|
5000/5 |
15 |
15 |
2.20 |
|
