11kv Split Core Current Transformer (Chuangyin brand)

Prod Model:	Split core CT
Operation Condition:	Indoor Outdoor
Model:	Clamp on Split Core DC/AC Current Transformer
Opening Dimension:	15mm
Operating Temperature:	-40c- 80c
Rated Primary Current:	DC/AC 1-100A
Is Customized:	Yes
Rated Voltage:	0.6kv/ 11kv/ 24kv
Rated Current:	50/75/100/150/200/300/400/500/600/800/1250A
Frequency:	50/60Hz
Rated Burden:	1.5va, 2.5va, 3.75va, 5va, 7.5A, 10va
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

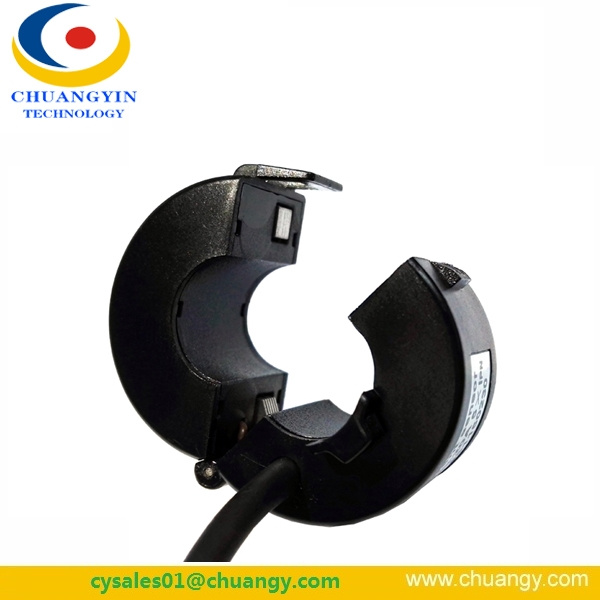

100A Split-Core CT Clamp On Current Transformer


Character:
.Small size
.Low temperature drift, broad band
.Perfect reaction time
.Current Overland ability

Typical Application:
.Static conversion for DC motor tractionstatic conversion
.Speed regulation of AC frequencyconversion, servo motor
.Power supply for battery/welding machineUPS.SMPS

Environment Condition:

Environment temperature	-40 ºC-+80 ºC
Air pressure	70kpa-106kpa
Relative Humidity	5%-95%(no condensation)
Storage Temperature	-40 ºC-+85 ºC


Electrical Character:

IPN	Rated primary current rms	20	A
IPM	Primary current range	AC/DC 0-100	A
VS	Working Voltage(±5%)	5	V
Vo	Output voltage	1.6±(0.907.IP/IPN	V
VREF	Basic Reference Voltage	1.65	V
IS	Current consumption	7mA@IP=0 53mA@IP=100A	mA
P	Max power loss	0.28	W
RL	Load resistance	>2	KΩ


Accuracy:

X	Accuracy	±0.5@Ipn	%
L	Linearity error	<0.3	%
Vos	Zero offset voltage@TA=25ºC	5(max)	mV
Vom	Magnetic field offset voltage	2.9(max)5xIpn	mV
TCVo	Vo temperature drift@-40 ºC-80 ºC	87.5	ppm
TCVREF	Output temperature drift @Vom=0  Vot=0	50	ppm
Tr	Step response time(90%Ipn)	<1	Us
BW	Band width (-3dB)	DC-100	kHz


Isolation Feature:


Ud	AC RMS voltage isolation test 50Hz . 1min	3	Kv
Uw	Impact pressure 1.2/50us	5	kV


Mechanical Dimension:

Method of Application:
.Primary current direction should be as perthe arrow in CT case
.Primary conductor temperature not morethan 100 º C
.When primary conductor fully occupy the CThole ,then performance of di / dt and response time are the best



Note:
The above parameter is only for reference as typical data, customer-made is subject to customers' request.
Please contact us for more information


SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY Group )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for power transformer, instrument transformer, CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT, Switchgear,Distribution Rransformer )

Arvin Q.
Business Development Executive
Mob:  +86 13925284622



Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd.,  Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code:   518057
Tel:    +86 0755-86000716/ 86007806
Fax:    +86 0755-86000614
Web:  www.chuangy.com

How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.or tell us your techincal requirement
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 6-10 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.

Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
6.For large order ,there is air shipment or seashipment ,and you tell us the forwarder details

Payment:
1. We accept 100% T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.

Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

OurCommitment:
BETTER PRICE than other suppliers for you because of Factory Direct Sale;
BETTER QUALITY than before caused by our 10+ years experience about CT;
STOCK IN TRADE awlays own to our Fast & Professional production line;
FAST DELIVERY as awlays made by our GROUP's Enthusiam;
TIMING REPLY in 24 hours all about our TEAM's Passion & Patience.

FAQ:
1) What is the difference between a moulded case current transformer and a split core current transformer?
A moulded case current transformer is a solid ring of steel in a plastic or resin case and can only be used when you fit the cable through the hole in the middle of the plastic/resin case.

A split core current transformer is manufactured with the steel core in two pieces. This enables the core to be separated, allowing you to fit the cores around the cable without disconnecting the cables. The disadvantage with split core current transformers is that they can be larger than standard moulded case and the price is approximately four times more expensive.

2) Which way round do the Current Transformers go?
The current transformers must be fitted and connected in the correct way or the meter will not be accurate. The current transformers are marked on two sides: 'P1' and 'P2.' 'P1' must face the mains side and 'P2' must face the load side. 'S1' must be connected to the main side of the meter and 'S2' to the load side. Refer to appropriate wiring diagram of the meter for correct connections.

3) Can the current transformers be a higher or lower ratio then my maximum load?
The current transformers should ideally be about 80% of the normal running load, thus allowing a 20% allowance of increasing the load in the future.
