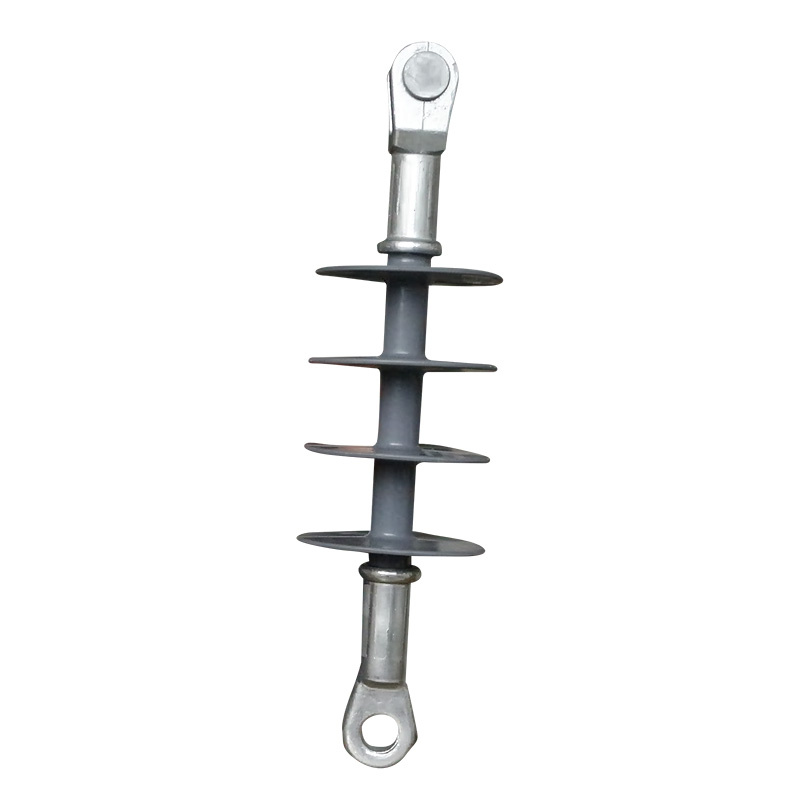

11kv Suspension Composite Long Rod Insulator (FXBU-11)

Name: 11kv Suspension Composite Long Rod Insulator (FXBU-11)
Brand: all-electronics-online.com
SKU: 740903765
Availability: InStock
Rating: 4.4 (38 reviews)

Price:	US $ 8-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBU-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Color:	Grey
Brand:	Ruily

Product Description

Company Introduction:

Item			Value
Electrical Ratings	Rated voltage		45kv	35kv	25kv	15kv
	Low frequency dry flashover voltage test		190kv	170kv	150kv	100kv
	Low frequency wet flashover voltage test		170kv	140kv	115kv	70kv
	Critical impluse flashover voltage test	Positive	275kv	255kv	235kv	180kv
	Critical impluse flashover voltage test	Negative	370kv	345kv	320kv	260kv
	Radio influence voltage test Max.voltage test		1μ/(Max)	1μ/(Max)	1μ/(Max)	1μ/(Max)
Mechanical	Failing load test		10,000kgf	10,000kgf	10,000kgf	10,000kgf
Mechanical	Number of sheds		10	8	6	4
Dimensions	Section Length		630mm	540mm	449mm	352mm
	Leakage distance		1100mm	886mm	674mm	445mm
	Minimum arcing distance		500mm	410mm	320mm	215mm

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.

And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.

Our company has complete sale, logistic, after-sales service and

Consultation system. Link with honest and credit, quality is first, satisfying

The requirement of cutomers is its own responsibility so as to make enterprise, society, workers harmoniously and uniformly.

"Ruili Electric" set up nice future with you together.
