11kv Three-Phase Dry Type Step up/Down Transformer

Name: 11kv Three-Phase Dry Type Step up/Down Transformer
Brand: all-electronics-online.com
SKU: 723724552
Availability: InStock
Rating: 4.6 (55 reviews)

Price:	US $ 5000-50000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCB10
Application:	Rectifier
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Zenele

Product Description

SCB10/10 Desctription:
10(10.5/11/6/6.3/6.6)kv tranformer to 0.4/0.415/0.433kv dry type transformer/Dyn11/Yyn0

General Description:

Application: for power distribution system and large industrial enterprises, etc.

Standards: IEC 60076-11

Parameters: Rated Voltage: 6kV~35kV.
Rated Capacity: 30-20000kVA.

Features:   1.High security and reliability in operation.
                 2.Economic and efficient to reduce network loss and working cost.
                 3.Low temperature rise.
                 4.Low noise.
                 5.Operation in moist place with high moisture-proof capability.
                 6.Customized transformers are available on your requirement.

Dry type transformer Technical parameter table
nominal capacity	Voltage combination			Join group label	No-load loss(W)	load loss(W)	No-load current(%)	Short circuit impedance(%)
nominal capacity	HV(KV)	High voltage range	LV(KV)	Join group label	No-load loss(W)	load loss(W)	No-load current(%)	Short circuit impedance(%)
30	6 6.3 6.6 10 10.5 11	±5%	0.4	Dyn11/ Yyn0	175	670	2.72	4.0
50					245	950	2.38
80					335	1310	2.21
100					360	1500	2.04
125					425	1755	1.86
160					495	2020	1.87
200					565	2400	1.70
250					650	2620	1.70
315					795	3300	1.53
400					885	3790	1.53
500					1050	4640	1.53
630					1215	5585	1.36
630					1170	5665	1.36	6.0
800					1370	6610	1.36
1000					1600	7720	1.19
1250					1885	9210	1.19
1600					2210	1150	1.19
2000					2990	13730	1.02
2500					3600	16320	1.02

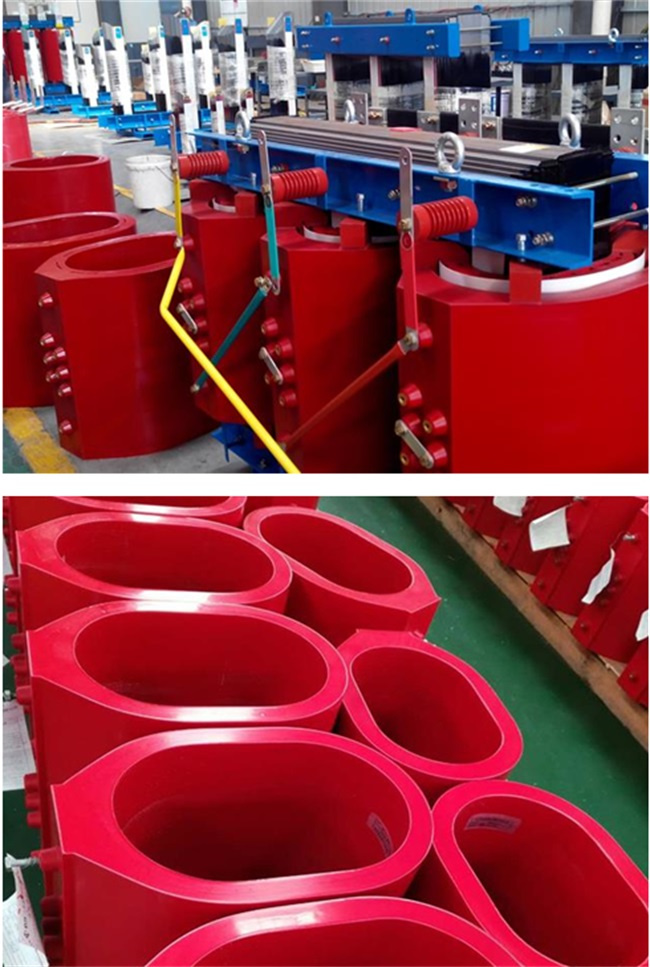

Product detail:

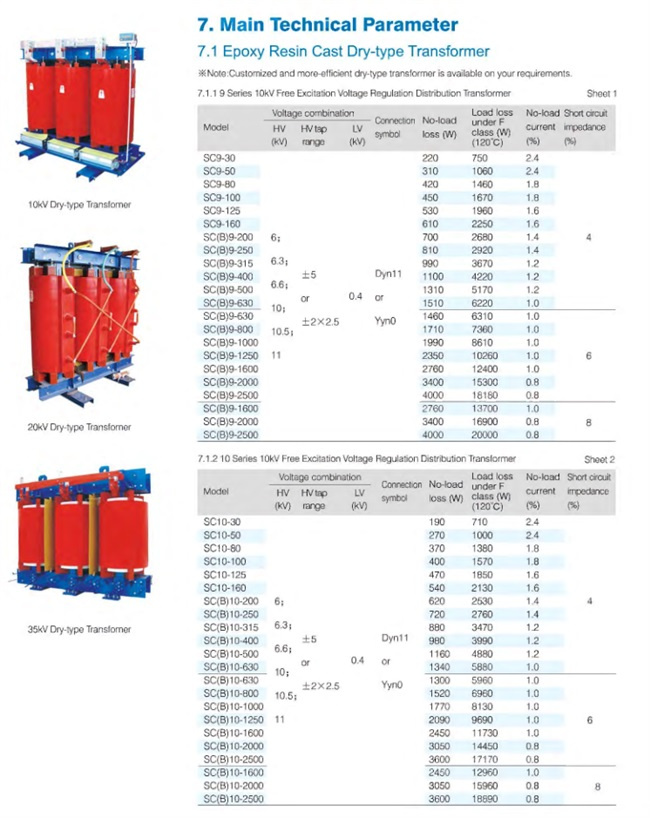

Technical specification:

Packing & Shipping:

Packaging Details: One unit per wooden case

Delivery Detail: 15-20 work days after the whole payment

Our Service:

1.OEM is available.

2.Your inquiry related to our product & price will be replied within 24 hours

3.Well-trained & experienced staff are to answer all your inquiries in English

4.Working time: 8:00am ~17:45pm, Monday to Saturday. (UTC+8)

5.Customized solution & perfect after-sale service

6. Payment: we can accept T/T, L/C, Western Union.

7. For large order, engineer can be sent to your country for on-site mainternace instructions.
