| Prod Model: |
PLD020-1SCF51T-XXX |
| Output Power: |
12~20W |
| Dimming: |
Triac/Elv Dimming |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
95X40X25 mm |
| Brand: |
Fsp-Powerland |
Product Description

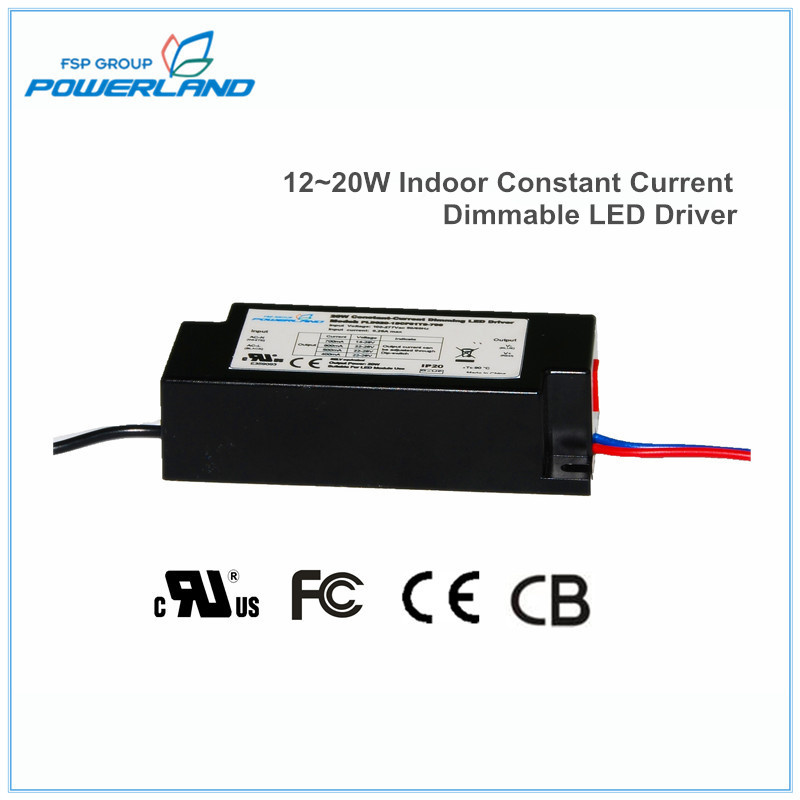

12~20W Indoor Constant Current Dimmable LED Driver
Powerland's PLD020-1SCF51T(S) series offers constant current drivers with wide-range dimmable output current and 90~305Vac universal input.
The output current of this series is up to 0.4/0.5/ 0.6/0.7A with DIP switch current setting (TS version), and designed for Triac/ELV dimming applications.
Applications
Indoor LED lights
LED lights with flexible current settings
Downlights, spotlights, LED panels
Features
100,000 hours lifetime at 65oC Tcase
5 years warranty at 50oC Tcase
Constant current output
Compatible with Triac/ELV dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 &EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit ProtectionSpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 12~20W | 14V
…
28V | 0.4A
…
0.7A | 83.5% | 90oC | 0.27A | 24W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD020-1SCF51T-400 | PLD020-1SCF51T-500 | PLD020-1SCF51T-600 | PLD020-1SCF51T-700 | PLD020-1SCF51TS-700 |
Output Voltage | 22~28V | 22~28V | 22~28V | 14~28V | 22~28/22~28/
22~28/14~28V |
Output Current | 400mA | 500mA | 600mA | 700mA | 400/500/600/700mA |
Dimming
| Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV |
Output Power | 12W | 14W | 17W | 20W | 20W |
Max. Current Ripple | ±30% | ±30% | ±30% | ±30% | ±30% |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.17A | 0.20A | 0.22A | 0.27A | 0.27A |
Max. Input Power | 15.3W | 17.5W | 20.5W | 24W | 24W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.75 @ 277Vac & 80~100% load |
Efficiency | 82% | 82% | 84% | 84% | 84% |
Max. Open Circuit Voltage | 35V | 35V | 35V | 35V | 35V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp |
Working Temperature | -20~+60oC |
Max. Case Temperature | 90oC |
Surge Protection | 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 95x40x25 mm (3.74x1.57x0.98 inch) |
Mounting Length | 85 mm (3.35 inch) |
Overall Length | 95 mm (3.74 inch) |
Weight | 0.15 kg (0.33 lb) |
Life Time | 100,000 hours @ full load, 65oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics

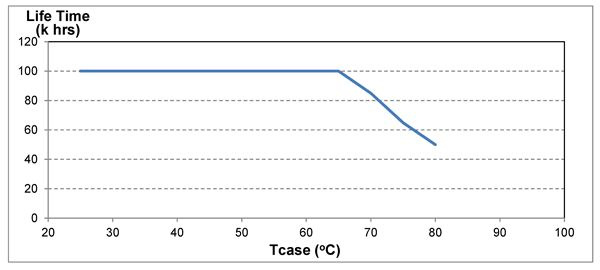

Life Time vs. Case Temperature
