12 24 Core Om3 100g MPO MTP Fiber Optic Trunk Cable

Name: 12 24 Core Om3 100g MPO MTP Fiber Optic Trunk Cable
Brand: all-electronics-online.com
SKU: 822016905
Availability: InStock
Rating: 4.3 (27 reviews)

Price:	US $ 1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO trunk cable
Item Name:	12 Core MPO-LC Patch Cord
Key Words:	MPO/MTP-LC Patch Cord,MPO MTP Jumper
Core Qty:	12 Core
Connector Type:	1 PCS 12 Core MPO to 6 Duplex LC
Insert Loss:	Standard 0.7dB,Elite 0.3dB
Cable Jacket:	LSZH
Wire Type:	3.0mm Round Wire
Length:	Customized
Application:	Probe
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

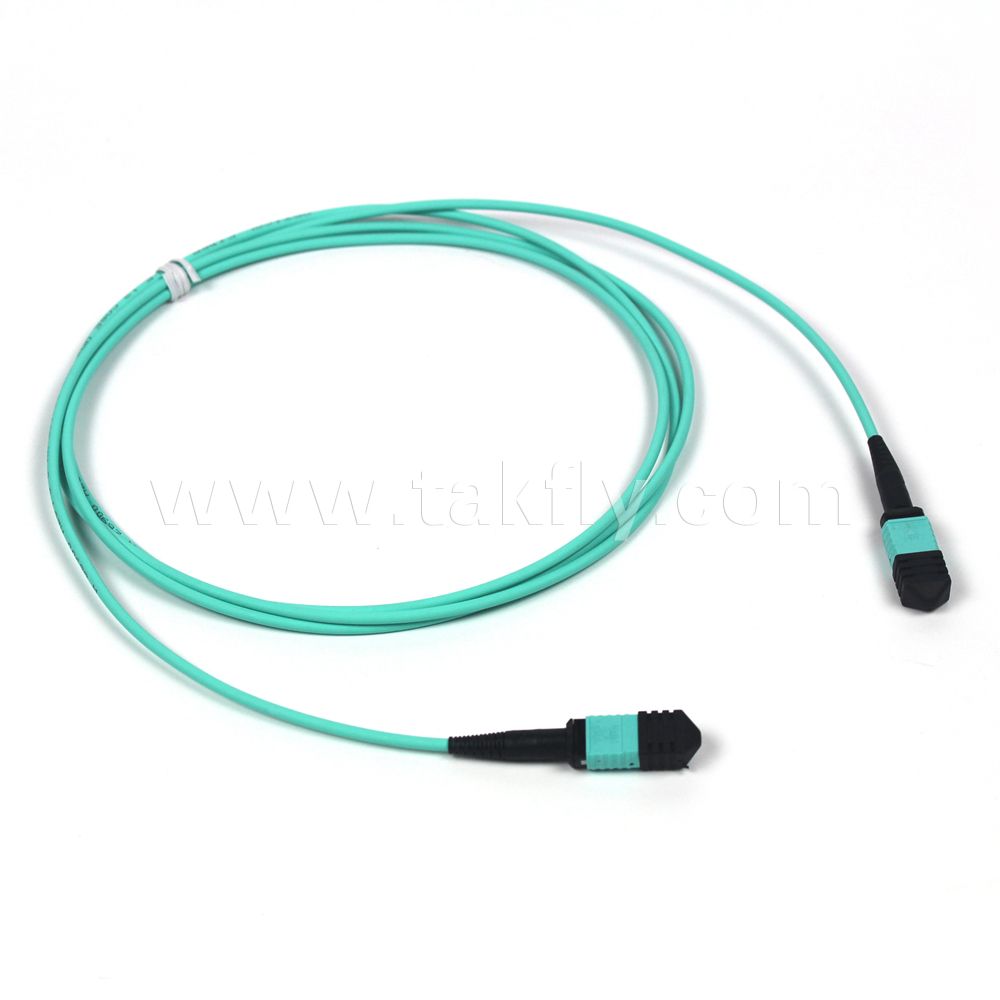

12 24 Core Om3 100g MPO MTP fiber optic Trunk Cable

MPO MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

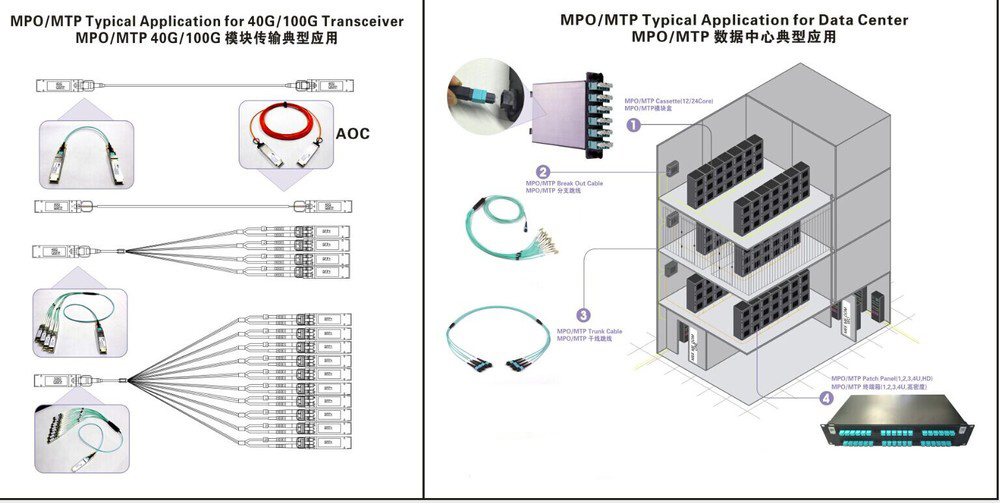

Typical Application of MPO trunk cable

Main feature

1. CABLE Quality Assurance System:
* Test Specifications for Bellcore GR-409-core
* Smoke density Purpose IEC-61034
* Halogen Acid Content IEC-754-1
* Flame Resistance IEC 60332-1, IEC 60332-3
* Conform to WEEE RoHS standard.

2. Fiber Type: OS2/OM3/OM4
Fiber Count: 4/8/12/24 core
Cable Type: Bare fiber/Flat/Round

Fiber Optic Performance:

Item		Parameter
MPO/MTP Connector		Standard SM	Low Loss(Elite) SM	Standard MM	Low Loss MM
Insertion Loss	Typical	0.35dB	0.20dB	0.35dB	0.20dB
	Maximum	0.70dB	0.35dB	0.60dB	0.30dB
Return Loss		≥60 for APC (8 Angle Polish)		≥20 for PC
		≥50 for PC		--
Male/Female		Male: With Pins, Female: Without Pins
Tensile Strength		≤0.3 (Max 66N)
Vibration		≤0.3 (10 ~ 55Hz)
Thermal Cycle		≤0.3 (-40 ~ 75ºC, 21Cycles)

Why Choose Takfly

1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week

2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery

3.Competitve price.As a factory,costs are controllable

4.Flexible payment term.T/T,L/C,paypal is availble

5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc

6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.

Would you like 1pcs 12 core Om3 MPO MTP trunk cable for testing?Please leave me an inquiry or contact me directly.
