| Prod Model: |
MTP/MPO Fiber Optic Patch Cord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Business Type: |
Manufacturer |
| Lead Time: |
3-7days |
| Connector Type: |
MTP/MPO/LC |
| Mode: |
Multimode |
| Polishing: |
PC, Upc |
| Fiber Type: |
50/125 |
| Length: |
0.5m/1m/3m/5m or Customized |
| Payment Terms: |
Tt/Paypal/LC |
| Cable Color: |
Aqua |
| Application: |
Testing, FTTH, FTTB, LAN, CATV |
| Type: |
Multi-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
MPO, MTP |
| Core: |
12, 24 |
| Sheath Material: |
LSZH |
Product Description

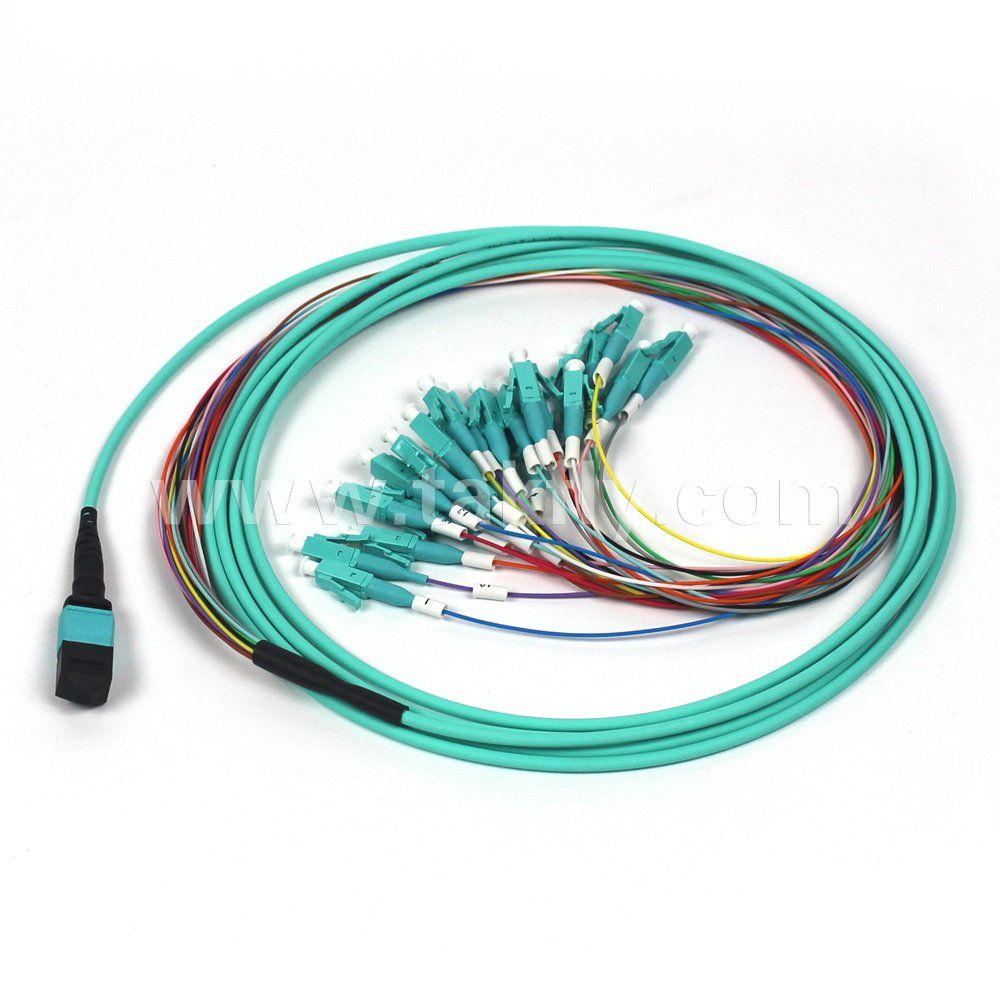

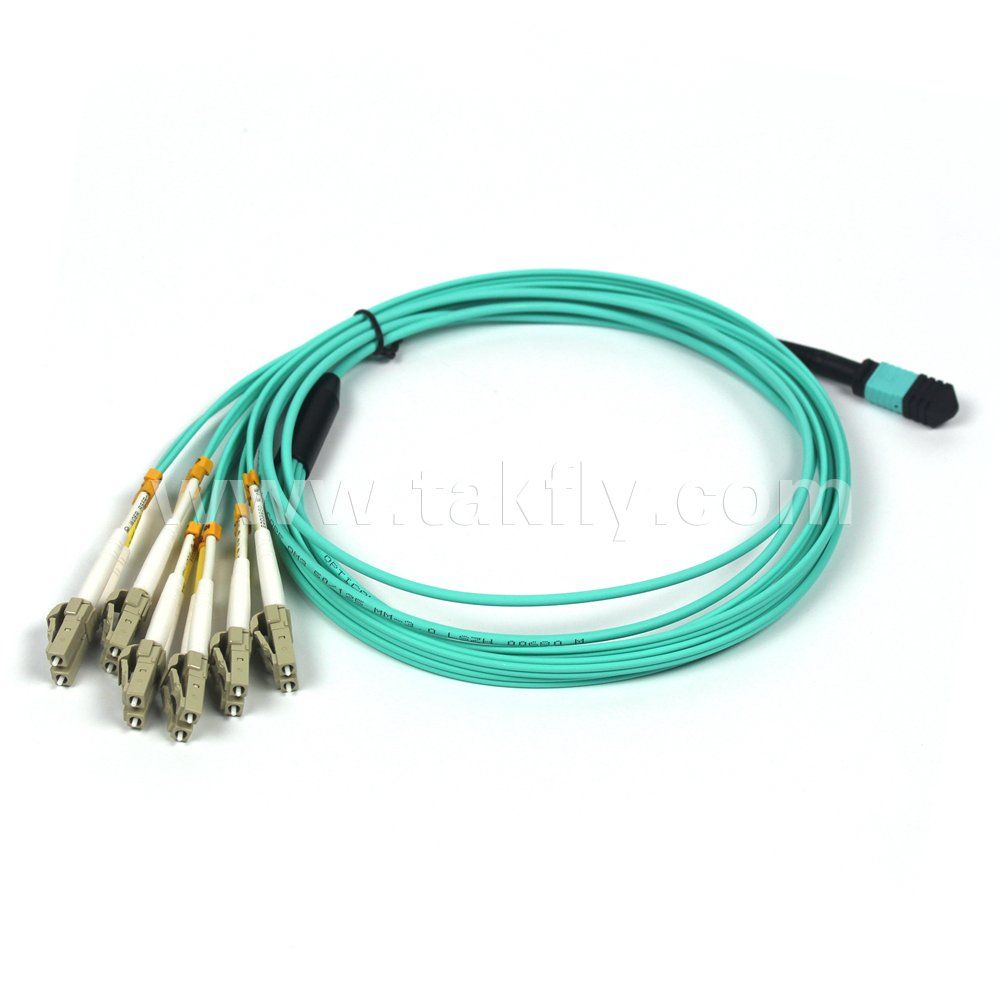

12/24 Cores Multi-Mode Om3 MTP/MPO Fiber Optic PatchCord
MTP/MPO hybrid transitions are terminated with MTP/MPO connector on one end & Standard LC, FC, SC, ST, MTRJ, MU connectors on other end to meet a variety of fiber cabling requirements. Such patch cords are widely used to interconnect with the current installed base of transmitters, receivers and patch panels.
Features
- Factory pre-terminated, eliminates the need for field terminations or splices, reduce installation time & save on-site labor cost
- 8 or 12 fibers for option
- SM 9/125, MM 50/125 or 62.5/125, MM 10Gig fiber cable available
- Full range of SC, LC, ST, FC, MTRJ, MU, DIN, D4 connectors available
- PC, UPC or APC end-face polishing for all discrete connectors
- Customized length, staggering, connector type, breakout style(0.9mm or 2.0mm), and labeling
- 100% factory tested with complete test results
- Pulling eye available for connecter protection, easy and quick installation
Specification
| ITEM | PARAMETER |
| Applicative connector type | MTRJ,MPO,MTP |
| Fiber mode | Single mode(PC) | Multi-mode(PC) |
| Operating wavelength | 1250~1650nm | 850nm, 1300nm |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | MT-RJ: typical≤0.40dB,Max≤0.50dB
MPO: typical≤0.50dB,Max≤0.70 dB | MT-RJ: typical≤0.25dB,Max≤0.30dB
MPO: typical≤0.40dB,Max≤0.50dB |
| Return Loss | APC≥50dB | / |
| Applicative cable OD. | MTRJ: Duplex ∮2.0mm / Simplex ∮3.0mm; MPO: Ribbon fiber/breakout fiber |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB typical change,500 mating |
| Tensile Strength | ≥120N(without 0.9mm patchcord) or customized |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
| Fiber Type | Cable Type | Connector | Boot Size | Boot Color | Polishing Type | Length |
| SM: 9/125μm | Simplex(2-fiber) | Male | 2.0mm | Black | PC | Customized |
| MM: 50/125μm | Duplex | Female | 3.0mm |
| APC |
|
| MM: 62.5/125μm | Ribbon |
| Ribbon |
|
|
|
| MM: OM3 | Breakout |
|
|
|
|
|
Applications
1. Telecommunication Networks
2. Computer networks
3. CATV networks
4. FTTx Termination
5. Gigabit Ethernet
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Packaging
1. All products will be packed in double corrugated carton , so the product can get effective protection to avoid damage.2. Packaging according to customer requirement Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.3. You can choose your own shipping agent, we will provide good cooperation for it. After-Sales Service
1. TAKFLY can provide detail documents and remote help for device installation and configuration.
2. Warranty: 2 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. TAKFLY promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.

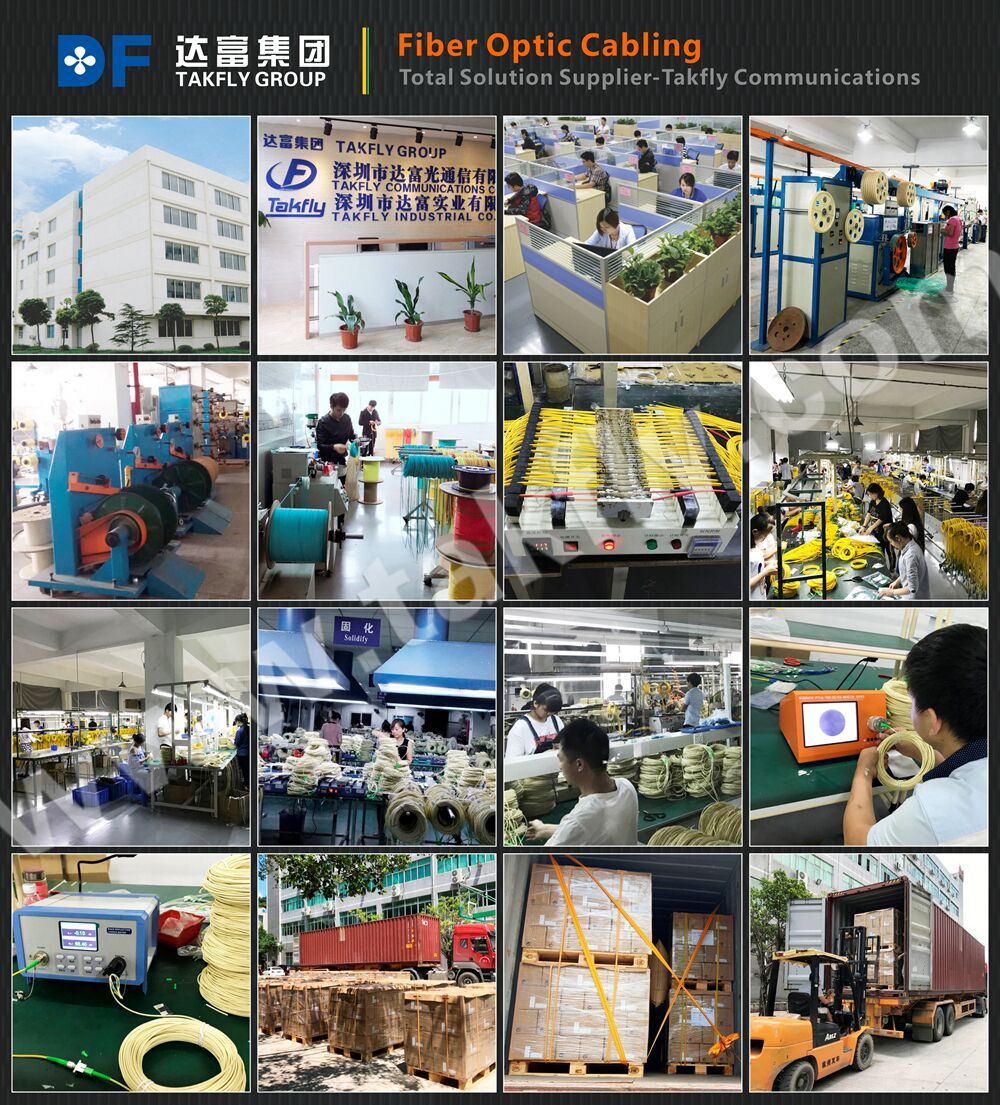

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
