| Prod Model: |
GOT10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Got10 |
| Color: |
Black |
| Weight: |
56g |
| Working Voltage: |
12VDC/24VDC |
| GPS Positioning Accuracy: |
5-15 Meters |
| Lbs Accuracy: |
About 200 M |
| Battery Capacity: |
200mAh |
| OBD Port: |
Yes |
| Application: |
Car,Bus,Taxi, Fleet,Logistics Distribution |
| Alarm Type: |
Speed / Geo-Fence /Shift/Vibration |
Product Description
Product Description
GOT10 OBD GPS Tracker has a very wide range of industrial and commercial applications, OBD interface, OBD diagnostic, plug and play, Voltage detection ACC, can be trackered on the platfrom through computer & smart phone.
Real-Time GPS Tracking System software and tracking abilities, Eelink OBD II offers ability to obtain and transmit vehicle diagnostic information from On-Board Diagnostics port (OBD-II). Device plugs into and is powered by vehicle's OBD-II port, allowing uninterrupted GPS tracking. Also equipped as standard, motion sensor alerts users if car is moving when engine is turned off. Users can track their vehicles in real-time as well as gather diagnostic information. The OBD ii is a GPS Tracking Device provided by GPS Tracking Tracker that installs in the OBD ii port of any vehicle. The tracker will provide updates every one minute and runs off the car itself. The OBD tracker installs within seconds.
Product Features
*Supports quad bands, I. E. 850/900/1800/1900MHz, worldwide used
*Plug and play, Easy to install and just connects OBD interface to work.
*GPS precise positioning with A-GPS and uploaded by GPRS regularly
*Tracks real-time and playback
*Cloud storage OBD data, Vehicle speed, Coolant temperature, fuel consumption and *other standard OBD2 diagnostic data, support read mileage, remaining oil. By some cars' module.
*Web browser platform, Smart phone APP platform and SMS query.
*Supports multiple alarm, Built-in acceleration sensor with vibration, collision and falling alarm.
*Built-in battery and unplugging alarm
*OTA upgrade program.
Alarm Type
Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm
Main Function
GPS OK
AGPS OK
Remote cut oil/engine OK
Monitor/listen NO
ACC OK
OBD diagnostics OK
Built-in battery OPTIONAL
Pedometer NO
Power failure Alarm OPTIONAL
Low power Alarm OPTIONAL
SOS Alarm NO
Speed Alarm OK
Shift Alarm OK
Collision Alarm OK
Falling Alarm OK
Vibration Alarm OK
Geo-fencing Alarm OK
Typical Application Areas
Car rental solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Police and public safety solution
Installation
How to find your OBDII Connector?
Start by looking around the underside of your dashboard, below your steering wheel but above your gas and brake pedals. The diagram below will show you the general area to search. The connector may be covered by a small flap, but will usually be visible without requiring any disassembly.
Installing the OBDII-GPS
Once the OBDII connector has been located, all that is required is to plug the OBDII-GPS into the connector. Once you turn the ignition of the vehicle on, the small lights on the unit will blink. During your first installation, you will need to give the OBDII-GPS unit a minimum of 15 minutes fully initialize.

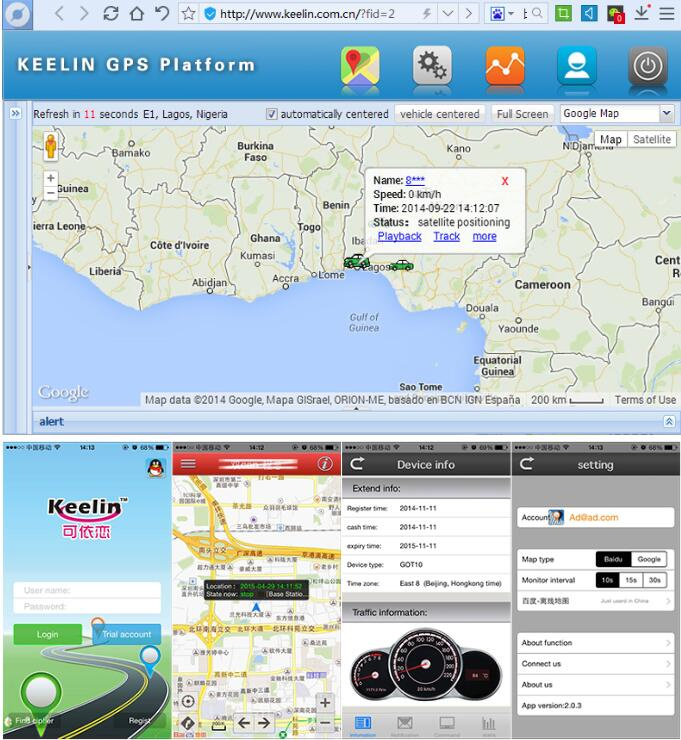

Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
DeliveryDHL/Fedex/UPS/TNT/EMS etc airexpress are optional, we can send goods as the requirement of client.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, please contact our sales to make sure the current inventory.
Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.Warranty1.All products have been strictly Quality Checked in house before packing.
2.All products have been well packed before shipping.
3.One year warranty is provided for all models. We will bear maintenance cost during warranty. OEM&ODM Service
1.Customize logo and brand print on the device,MOQ is 1000pcs.
2.Customize the tracker for special functions, MOQ is 3000pcs.
3.Offer software customization service,such as communication protocol.
| Base Specification |
| Voltage | 12VDC/24VDC |
| Work Current | <40mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Dimensions (mm) | 56.5(L)X 47(W) X 24.6(H) |
| Net Weight | 56 g |

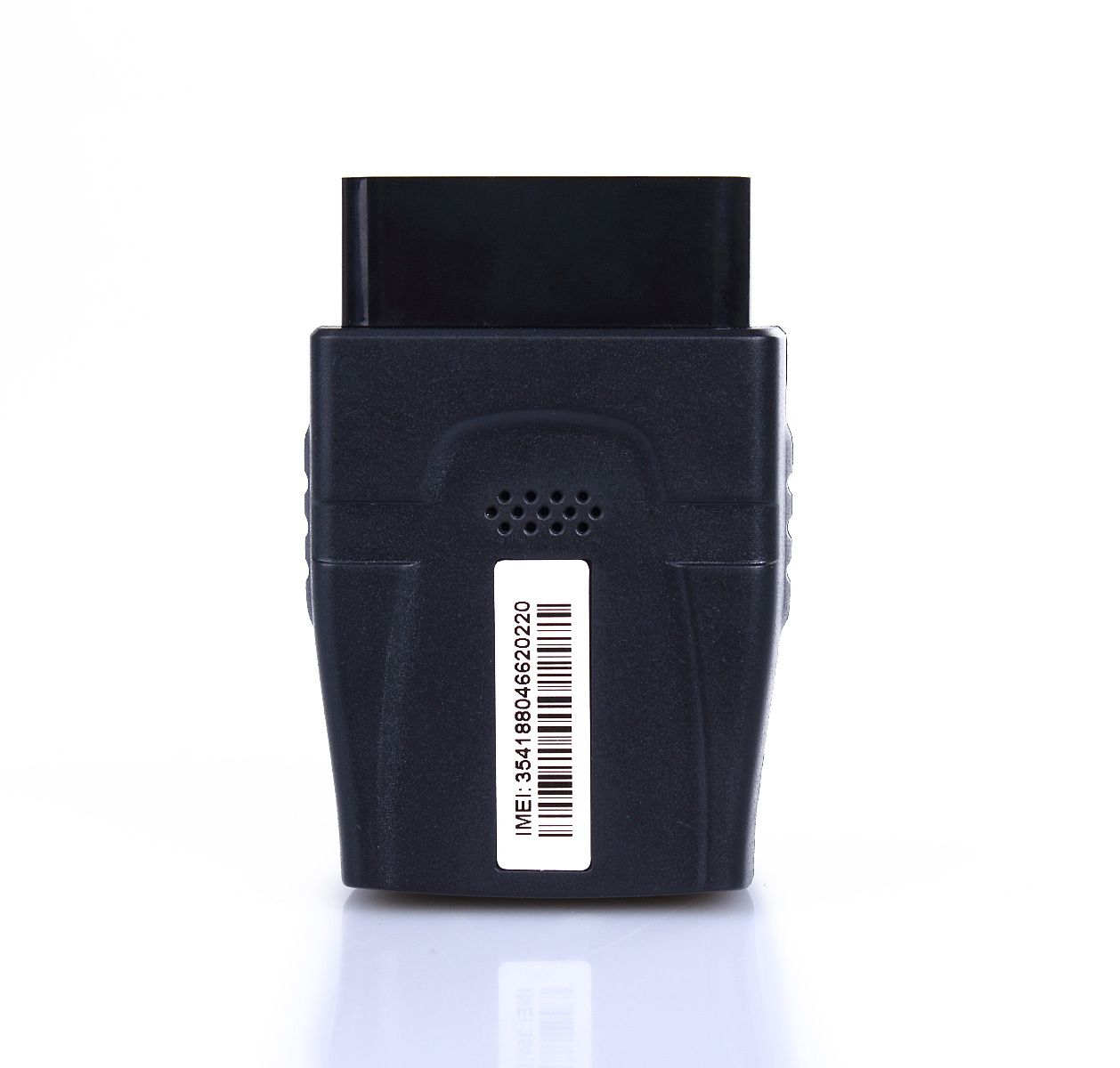

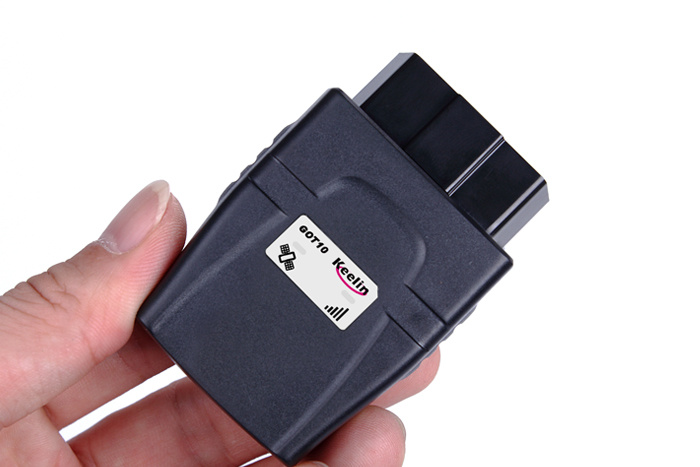

OBD GPS tracker GOT10 Photo
DeliveryDHL/Fedex/UPS/TNT/EMS etc airexpress are optional, we can send goods as the requirement of client.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, please contact our sales to make sure the current inventory.
Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.Warranty1.All products have been strictly Quality Checked in house before packing.
2.All products have been well packed before shipping.
3.One year warranty is provided for all models. We will bear maintenance cost during warranty. OEM&ODM Service
1.Customize logo and brand print on the device,MOQ is 1000pcs.
2.Customize the tracker for special functions, MOQ is 3000pcs.
3.Offer software customization service,such as communication protocol.

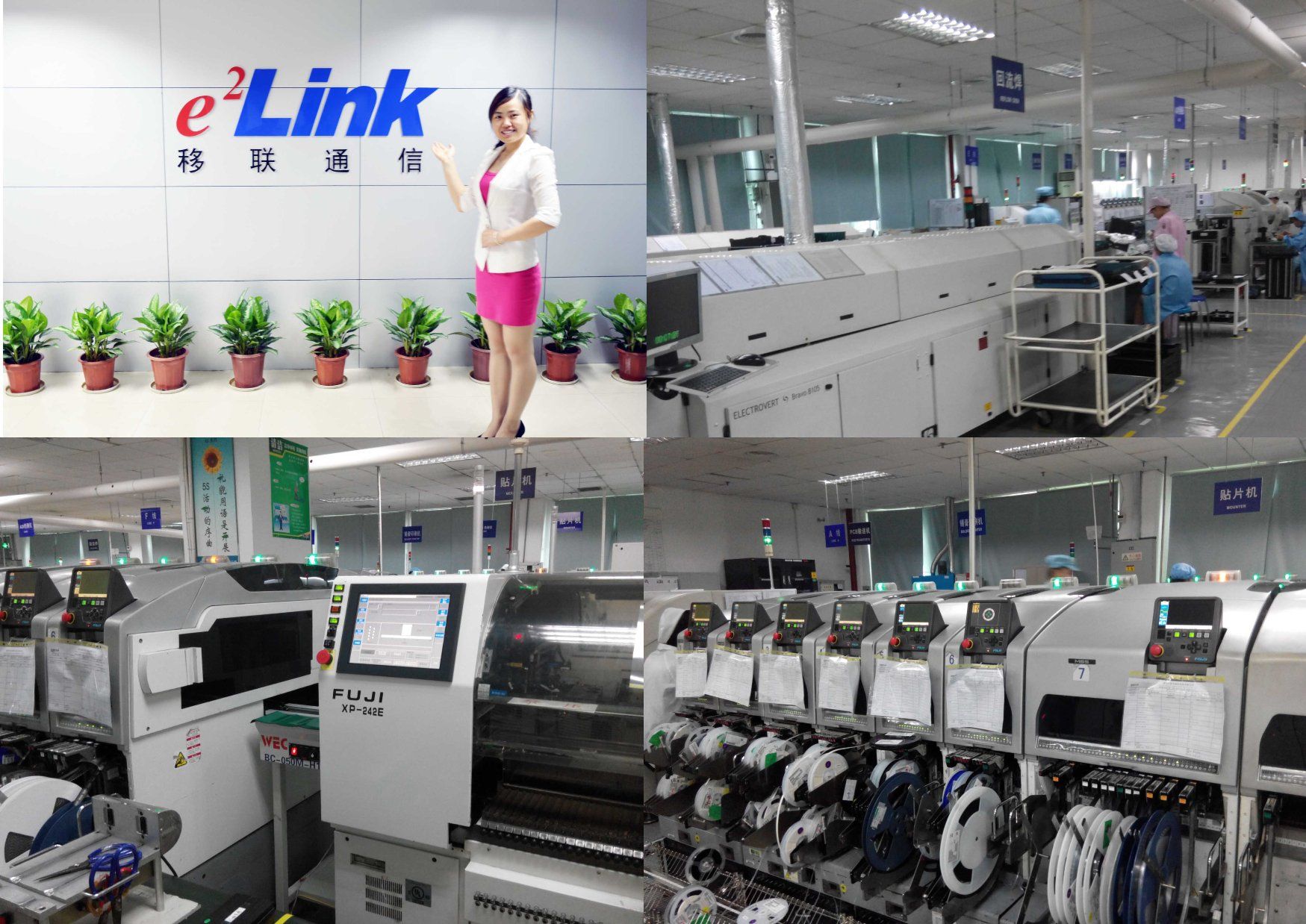

Shenzhen Eelink Communication Co. Ltd Introduction
We are a manufacturer and exporter of GPS trackers, GPS OBD II tracking devices, vehicle tracking devices and personal tracking devices. We also offer mature GPS tracking solutions and comprehensive OEM and ODM services.
We are engaged in GPRS / WCDMA + GPS / Beidou positioning products, OBD and CAN bus and related services; GPS positioning platform's development, including PC / Android / iOS
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
