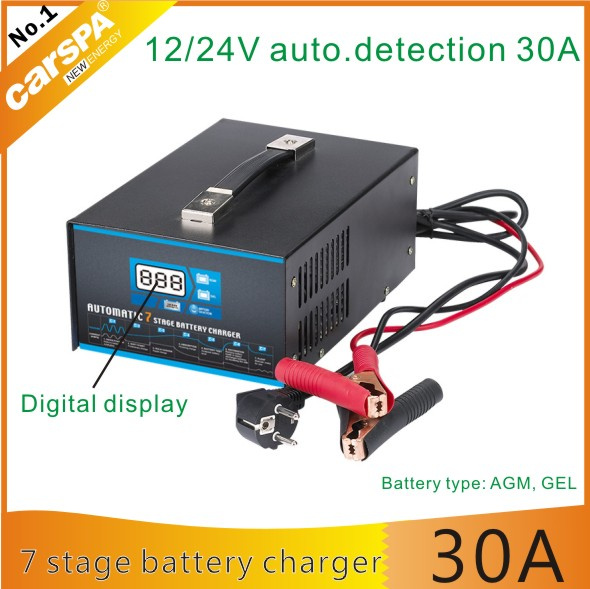

12/24V 30A Automatic 7 Stage Battery Charger with Digital Display & Temp. Compensation
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ENC12/24-30D |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temp. Probe: |
Selectable |
| System Voltage: |
12 or 24V Auto. Detection |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Electric Charger |
Product Description
Automatic 7 stage battery charge with digital display
Features:
1. LED digital display: U-I -P
U: battery voltage I: charge current P: over heat protection
2. LED indicator: AGM /GEL battery
3. AGM/GEL battery charge mode selection
4. Numerous protection functions: overheat, over charge, short circuit, soft start, internal temperature compensation, reverse polarity, over charge protection.
7 Stage automatically charging:
C-1—Desulphation: The desulphation stage may break down sulphation that occurs in batteries that have been left flat for extended periods of time, returning them back to full charge. Sulphation occurs when lead-sulphate hardens and clogs up the battery cells.
C-2—Soft-Start: A preliminary charge processes that gently introduces power to the battery. This protects the battery and increases battery life.
C-3—Bulk (Constant Current): bulk mode charges the battery at the maximum rate (constant current)putting a large amount of power into the battery in a short amount of time. This stage will charge the battery to approximately 80%, until the voltage reaches 14.4 volts for 12V battery or 28.8volts for 24V charger.
C-4—Absortion (Constant Voltage): the charge rate slows down so the battery can absorb more power and reach 100% charge. The voltage remains at a constant 14.4 volts for 12V charger or 28.8 volts for 24V charge while the current is gradually reduced until no more power can be added without over-charging the battery.
C-5—Battery Test: an automatically battery test is conducted immediately after the absorption stage. The test monitors the voltage for 90 seconds to determine if the charge was successful.
C-6—Recondition: The battery reconditioning function is initiated automatically in the case that the battery fails the battery test (stage 5). Failing the battery test indicates that the absorption stage was unable to fully charge the battery. The recondition mode will then begin to introduce a low constant current for a period of 4 hours. Then the charger will go into the float charging mode. This recondition stage can recover batteries from a deeply discharged state increasing performance and battery life.
C-7—Float: the float stage maintains the battery at 100% charge without overcharging or damaging the battery. This means the charger can be left connected to the battery indefinitely.
| Model | ENC12/24-30D | ENC12/24-40D | ENC12/24-50D | ENC12/24-60D |
| Input voltage range (AC) | 90-165V (110V) / 190-265V (220V) |
| Battery voltage | 12/24V auto. detection |
| Max. charging current | 30A | 40A | 50A | 60A |
| Charging way | 7 stage automatic charging |
| LED digital display | U-I-P |
| LED indicators | AGM, GEL |
| Qty/ Ctn | 6pcs |
| Meas./Ctn | 43*33.5*59cm |
| Certification | CE, RoHS |
| Warranty | 2 years |
Through unremitting efforts over manny years, the scale has leaping development. In 2010, we moved to our new building, and we changed our company name to "Zhejiang Carspa New Energy Co., Ltd" (former name is Wenzhou Carspa Electronics Technology Co., Ltd) in 2011.
We have research center in Shenzhen (Shenzhen Sunpulse Industrial Co., Ltd), and in 2012, we establish our own import & export company ( Wenzhou Sunpulse Import & Export Co., Ltd).
We are a high and new technology manufacturer and exporter in China which is mainly specialized in researching, developing, manufacturing and marketing of power inverter which including mini car inverter, smart inverter, modified sine wave power inverter, pure sine wave power inverter, battery charger, pure sine wave inverter with charger, modified sine wave inverter with charger, domestic and industrial use UPS, DC voltage booster, negative booster, stabilizer, air purifier & ozone sterilizer and other car electrical products, solar modules, PV on grid inverter, microinverter, High-tech off grid inverter, solar charge controller, solar and wind system and other solar related products. Also, we deal with some other low voltage electric appliances and power supply products.
Established in 2004, Carspa Company located in wenzhou, the largest manufacturing base of low voltage electric equipment in China, and has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Carspa products have exported to many regions and many countries. Along with several leading experts, our company has developed a sound operation system consists of manufacturing, studying, researching, marketing, and servicing.
Our company has obtained ISO9001 quality certificate, CE-EMC/LVD, RoHS, E-MARK, SONCAP etc. Certification. And we have won numerous honors at home and abroad for our good quality, competitive prices and considerate services. Our motto is '' Harmony, Sincerity, Creativity and Win-Win ". We have been constantly pursuing to promote the development of the technology of the renewable energy, we try to make great efforts for saving global energy resources, making our future brighter.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
