12-24V 3A*3CH Mini LED Dim CT RGB Controller

Name: 12-24V 3A*3CH Mini LED Dim CT RGB Controller
Brand: all-electronics-online.com
SKU: 785822645
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	US $ 15-19/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL-S-3A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Terminal:	Screw
Size:	873928mm
Color:	White
Application:	LED Strip LED Module
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12-24V

Product Description

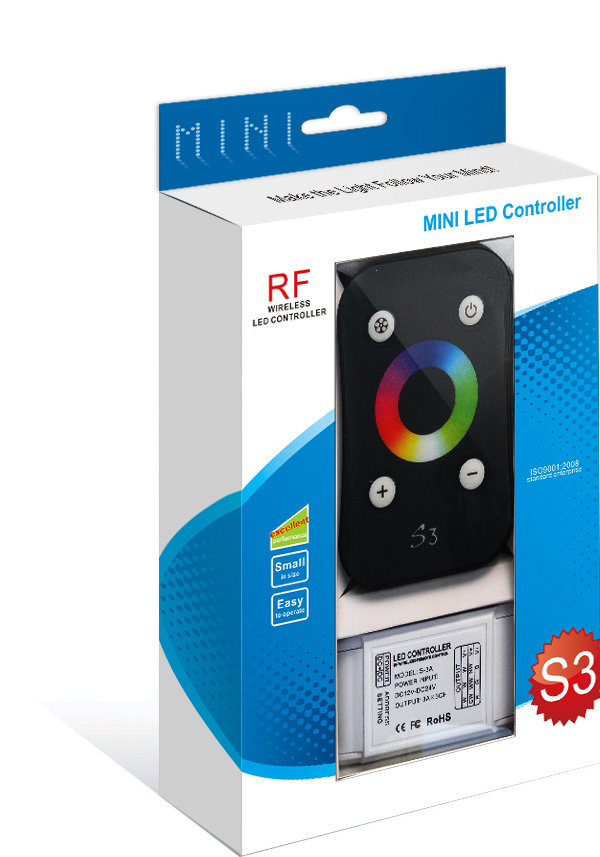

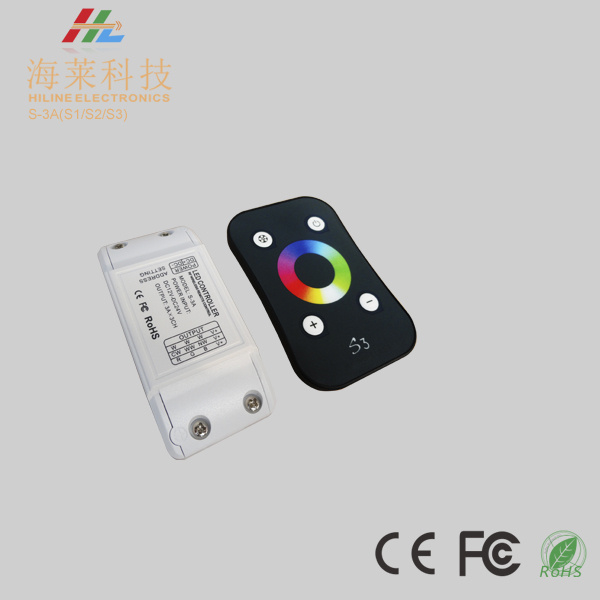

12-24V 3A*3CH mini LED DIM CT RGB controller features:

1. RF remote is fashionable and super thin and light, easy to carry; receiver is small and easy to install.
2. RF remote is low power consume, long distance, with penetrating power and independend ID, without interference.
3. 4096 grey levels(most are 256 levels on the market) makes the softer dimming and more colorful dynamic changes.

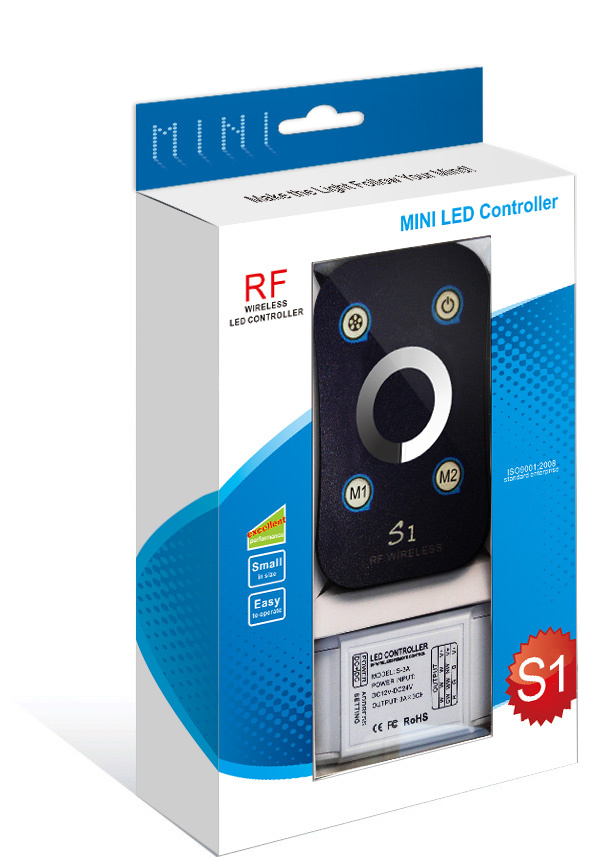

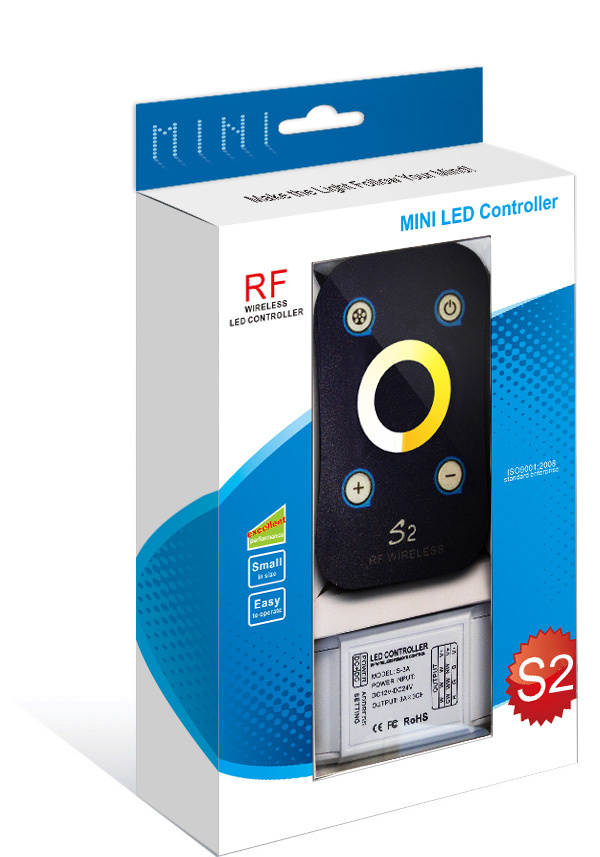

4.1 receiver can load 3 different remotes, 1 receiver can make brightness dimming(Remoter: S1), color temperature(Remoter: S2) and RGB control (Remoter: S3).
5.Simple design of remote control, easy to use.

12-24V 3A*3CH mini LED DIM CT RGB controller parameter:

Remoter Technical Parameter

Model(Optional)	S1(DIM)/S2(CT)/S3(RGB)
Working voltage	DC3V battery CR2025
Working Voltage	433.92MHz
Working temperature	20C---55C
Remote distance	30m
Product size(mm)	L94W60H7
N.W.	42g
G.W.	115g

Receiver Technical Parameter

Model	S-3A
Input voltage	DC12-24V
Max current	3A*3CH,Max 9A
Max power	108W(12V)/216W(24V)
Grey level	Max 409640964096
Working Temperature	-30C---55C
Product size(mm)	L87W39H28
N.W.	31g
