| Prod Model: |
Hanker Power Star Series 1KW-12KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Phase: |
Single Phase |
| Off Or On Grid: |
off Grid |
| Frequency: |
50Hz/60Hz |
| Transformer: |
Yes |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Home Theater |
| Brand: |
Upsen |
Product Description
12/24V/48VDC Low Frequency Power Inverter with LCD Display
Pure Sine Wave Inverter Charger Hanker Power Star Series 1KW-12KW (1ph in/1ph out)

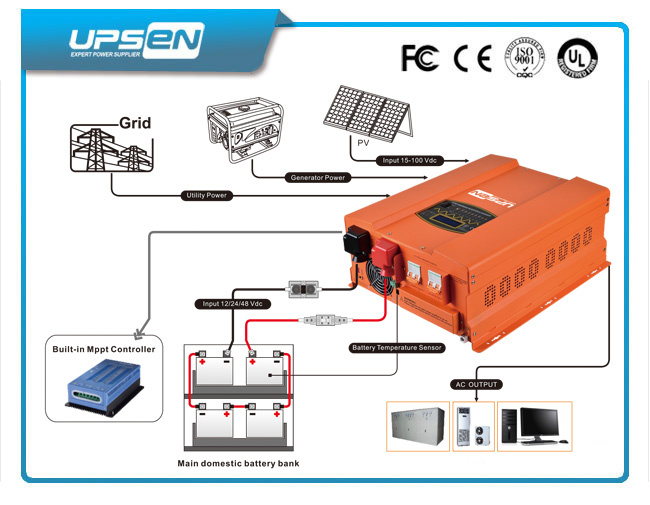

HP Series Pure Sine Wave Inverter is a combination of an inverter, charger, solar power and Auto-transfer switch into one complete system . It is packed with unique features and it is one of the most advanced inverter/chargers in the market today.
Feature of HP Series Inverter & Charger
1:Ability to select power saver mode
2:Suitable for all electrical equipment
3:High efficiency, highest can reach to 95%
4:Multiphase synchronous rectification technology
5:Microprocessor control guarantees high reliability
6:Restoration of electricity, automatically activated
7:Allows start up and through power with depleted batteries
8:Smart battery charger design for optimized battery performance
9:Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
10:Intelligent charge control, can ensure the effective charging, but can not avoid excessive charging
Ultra-load protection
Application
Cable Television,lectronic Test Equipment,Security Systems,Vending Machines,
Medical Equipment,Financial System,Electronic Cash Registers,Telecommunications Systems etc.
| Technical Specification |
| | Model | HP1K | HP1.5K | HP2K | HP3K | HP4K | HP5K | HP6K | HP8K | HP10K | HP12K |
Inverter
Output | Continuous
Output Power | 1.0KW | 1.5KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW |
| Surge Rating(20s) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12.0KW | 15.0KW | 18.0KW | 24.0KW | 30.0KW | 36.0KW |
| Output Waveform | Pure Sine wave/Same as input(Bypass Mode) |
Nominal
Efficiency | >88%(Peak) |
Line Mode
Efficiency | >95% |
| Power Factor | 0.9-1.0 |
Nominal Output
Voltage rms | 100-110-120Vac / 220-230-240Vac |
Output Voltage
Regulation | ±10% RMS |
| Output Frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
Short Circuit
Protection | Yes( 1sec after fault ) |
Typical
transfer Time | 10ms(Max) |
| THD | < 10% |
DC
Input | Nominal Input
Voltage | 12.0Vdc |
| ( *2 for 24Vdc, *4 for 48Vdc) |
Minimum Start
Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5Vdc / 11.0Vdc |
| Low Battery Trip | 10.0Vdc / 10.5Vdc |
| High Voltage Alarm | 16.0Vdc |
Low Battery
voltage recover | 15.5Vdc |
Idle Consumption
-Search Mode | < 25 W when Power Saver On |
| Charger | Output Voltage | Depends on battery type |
Charger
Breaker Rating | 10A | 15A | 20A | 20A | 20A | 30A | 30A | 40A | 40A | 40A |
Max Charge
Power Rate | 1/3 Rating Power |
Battery Initial
Voltage for Start Up | 10-15.7V for 12V( *2 for 24V, *4 for 48V) |
Over Charge
Protection Shutdown | 15.7V for 12V (*2 for 24V, *4 for 48V) |
| Remote Control | Yes(Optional) |
Bypass &
Protection | Input Voltage
Waveform | Sine wave (Grid or Generator) |
| Nominal Voltage | 110Vac | 120Vac | 220Vac | 230Vac |
Max Input
AC Voltage | 150VAC For 120Vac LV Mode;300VAC For 230Vac HV Mode; |
Nominal Input
Frequency | 50Hz or 60Hz (Auto detect) |
| Low Freq Trip | 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz |
| High Freq Trip | 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz |
Overload protection
(SMPS load) | Circuit breaker |
Output Short
circuit protection | Circuit breaker |
Bypass breaker
rating | 10A | 15A | 20A | 30A | 40A | 40A | 40A | 50A | 63A | 63A |
Transfer switch
rating | 30amp for UL & TUV | 40amp for UL | 80amp for UL |
Bypass without
battery connected | Yes (Optional) |
| Max bypass current | 30amp | 40amp | 80amp |
Solar
Charger
(Optional) | Rated Voltage | 12Vdc / 24Vdc / 48Vdc |
Solar Input
Voltage Range | 15-30Vdc / 30-55Vdc / 55-100Vdc |
Rated Charge
Current | 40 ~ 60A |
Rated Output
Current | 15A |
| Self Consumption | < 10mA |
| Bulk Charge | 14.5V(default) | (*2 for 24Vdc, *4 for 48Vdc) |
| Floating Charge | 13.5V(default) |
| Equalization Charge | 14.0V(default) |
Over Charge
Disconnection | 14.8V |
Over Charge
Recovery | 13.6V |
Over Discharge
Disconnection | 10.8 V(default) |
Over Discharge
Reconnection | 12.3V |
Temperature
Compensation | -13.2mV/°C |
Ambient
Temperature | 0 ~ 40°C(Full load) 40 ~ 60°C(Derating) |
Mechanical
Spec | Mounting | Wall Mount |
Inverter
Dimensions(L*W*H) | 388*415*200mm | 488*415*200mm | 588*415*200mm |
Inverter
Weight
(Solar Chg)KG | 21+2.5 | 22+2.5 | 23+2.5 | 27+2.5 | 38+2.5 | 48+2.5 | 49+2.5 | 60+2.5 | 66+2.5 | 70+2.5 |
Shipping
Dimensions(L*W*H) | 550*520*310mm | 650*520*310mm | 750*520*310mm |
Shipping Weight
(Solar Chg)KG | 23+2.5 | 24+2.5 | 25+2.5 | 29+2.5 | 40+2.5 | 50+2.5 | 51+2.5 | 62+2.5 | 68+2.5 | 72+2.5 |
| Display | Status LEDs / Status LEDs+LCD |
| Standard Warranty | 3 Years (Optional) |
