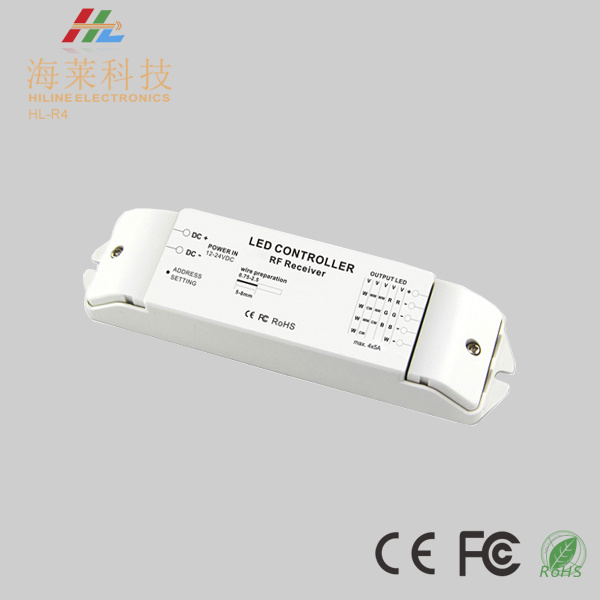

12-24V Linear 3A*4CH RF Wireless LED RGB Controller

Name: 12-24V Linear 3A*4CH RF Wireless LED RGB Controller
Brand: all-electronics-online.com
SKU: 785827615
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	US $ 19-29/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL-R4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Terminal:	Screw
Size:	1353020mm
Color:	White
Application:	LED Strip LED Module
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12-24V

Product Description

12-24V linear 3A*4CH RF wireless LED RGB controller features:

1.Automatically adapt to LED light which works from DC12V-24V.
2.The receiver volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.
3.Using RF remote control , the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause ,change mode , brightness and speed etc.
4.10 strobe&fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash .

12-24V linear 3A*4CH RF wireless LED RGB controller parameter:

HL-T1/T2/T3/T4/T5 Remoter specs:

Battery type	DC3V (CR2032)
Working Frequency	433.92MHz
Remote distance	40m-50m
Working temperature	-20C---55C
Product size	L106W56H9(mm)
Weight(N.W.)	40g

RF Receiver HL-R4 Technical Parameter

Model	HL-R4
Compatible remoter	T1/T2/T3/T4/T5
Working voltage	DC12V-DC24V
Output current	Max 5A*4CH
Output power	Max 240W(12V)/480W(24V)
Working temperature	-30C---55C
Product size	L176W46H30(mm)
Weight(N.W.)	150g

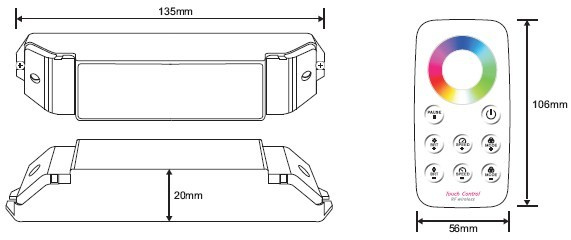

12-24V linear 3A*4CH RF wireless LED RGB controller dimension:

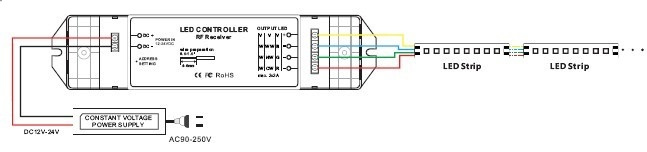

12-24V linear 3A*4CH RF wireless LED RGB controller installation sample:

12-24V linear 3A*4CH RF wireless LED RGB controller changing modes:

Sequence	Modes	Description
1	3 color skipping	Red, green and blue 3-color skipping
2	7 color skipping	Red, green, blue, yellow, purple, cyan, white 7-color skipping
3	White color strobe	White(with all red, green and blue on)strobe
4	3 color smooth	Red, green and blue 3-color gradual changes
5	Full color smooth	All 7-color gradual changes
6	RG color smooth	Red, green 2-color gradual changes
7	R B color smooth	Red, blue 2-color gradual changes
8	GB color smooth	Green, blue 2-color gradual changes
9	White color fade & change	white(with red, green & blue on)gradual bright & fade
10	Great cycle	All changing modes overlap cycle
