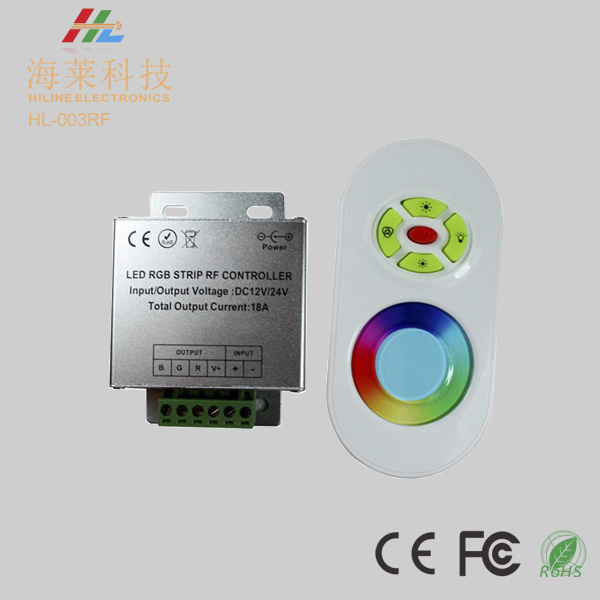

12-24V RF Touch Ring 3A*3CH LED RGB Controller

Name: 12-24V RF Touch Ring 3A*3CH LED RGB Controller
Brand: all-electronics-online.com
SKU: 785819995
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 15-27/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL-003RF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Terminal:	Screw
Size:	666323mm
Color:	White
Application:	LED Strip LED Module
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12-24V

Product Description

12-24V RF touch ring 3A*3CH LED RGB controller features:

1. With sensitive touch function;
2. Provided with a fantastic remoter with dreamy color ring;
3. with power loss memory funtion;
4. With compact size, powerful load capability

12-24V RF touch ring 3A*3CH LED RGB controller Parmeters:

Model:HL-003RF
Input Voltage:	DC12V/DC24V	Wireless mode	touchable/RF
Loadable Current:	Max 6A×3	Output Power:	216W/12VDC; 432W/24VDC
Color Modes:	15 modes	Grey Steps:	256 steps per RGB
Remoter material	ABS+PC	Remoter Size:	L115×W55×H20(mm)
Intensity Steps:	8 Steps	Controller size:	L83×W63×H23(mm)
Working Temp:	-35ºC-55ºC	Packing Size:	L120×W671×H56(mm)
Remote control Distance:	Max 30M	Gross Weight:	152g
Accessories:	2 pcs AAA batteries	Power Amplifier:	Compatible with our power repeater

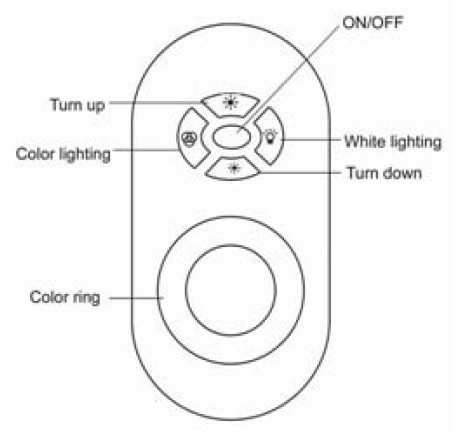

12-24V RF touch ring 3A*3CH remoter instruction:

12-24V RF touch ring 3A*3CH LED RGB controller Modes table:

Sequence	Modes
1	Auto color changing, 8 steps of brightness adjustment
2	3 color Jumpy, 8 steps of brightness adjustment
3	7 color Jumpy, 8 steps of brightness adjustment
4	3 color jumpy to gradual, 8 steps of brightness adjustment
5	7 color jumpy to gradual, 8 steps of brightness adjustment
6	Red color jumpy, 8 steps of brightness adjustment
7	Blue color jumpy, 8 steps of brightness adjustment
8	Purple color jumpy, 8 steps of brightness adjustment
9	Green color jumpy, 8 steps of brightness adjustment
10	Yellow color jumpy, 8 steps of brightness adjustment
11	Cyan color jumpy, 8 steps of brightness adjustment
12	White color jumpy, 8 steps of brightness adjustment
13	Red/blue light twinkles alternatively,8 steps of brightness
14	Geeen/blue light twinkles alternatively, 8 steps of brightness adjustment
15	Red/green light twinkles alternatively, 8 steps of brightness adjustment
