12-24V RGBW Push Dim LED Controller

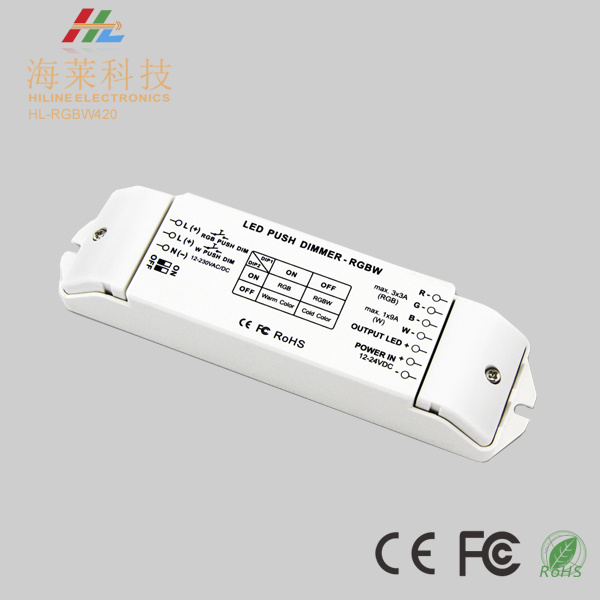

Name: 12-24V RGBW Push Dim LED Controller
Brand: all-electronics-online.com
SKU: 785813165
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	US $ 24-29/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL-RGBW420
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Terminal:	Screw
Size:	1764630mm
Color:	White
Application:	LED Strip LED Module
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	DC12-24V

Product Description

12-24V RGBW push dim LED Controller features:

1. Automatically adapts to DC12V-24V;
2. Output 4 channels, of which 4096 grey levels, soft & stable, flicker free;
3. Static and color changing modes selectable;
4. Power loss memory function;
5. Over current & short circuit protection

12-24V RGBW push dim LED Controller Parameters:

Model:	HL-420
Input voltage:	DC12V-DC24V
Max load current	RGB: 3A3CH, W: 9A1CH
Max load power	RGB: 36W3CH W: 108W(12V)/ RGB: 72W3CH W: 216W(24V)
Changing mode:	8 modes( with special push Dim function)
Grey level:	4096 levels * 4CH
Speed level	16 levels
Output signal	4CH constant voltage PWM
Dimension:	1764630mm
Weight(G.W:)	145g
Control type:	common anode

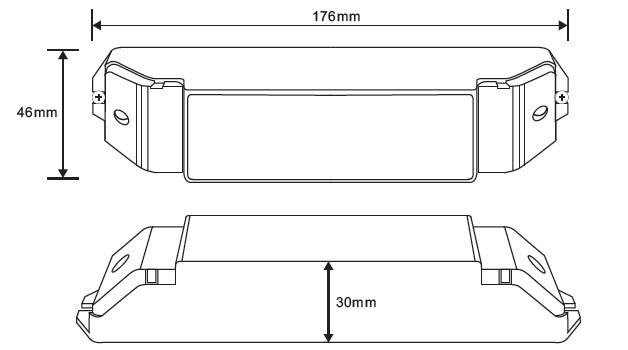

12-24V RGBW push dim LED Controller Size and structure:

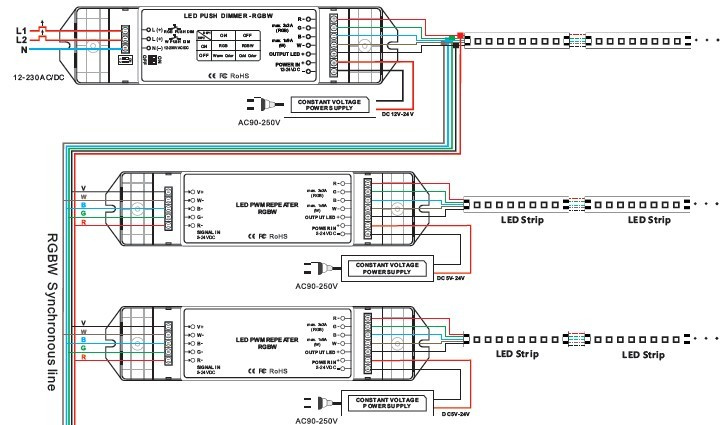

12-24V RGBW push dim LED Controller connection sample:
