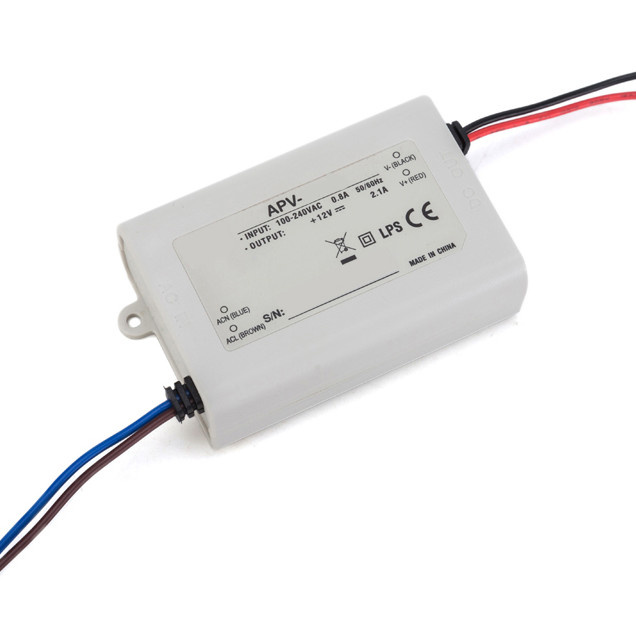

12-35W Single Output LED Driver (APV series)

Name: 12-35W Single Output LED Driver (APV series)
Brand: all-electronics-online.com
SKU: 710239562
Availability: InStock
Rating: 4.5 (119 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-APV
Constant Current:	Apv Constant Current Design (Constant Current Mode
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

APV Series: 12-35W Single output LED driver
*Universal AC input / full range
*Fully sealed insulation plastic shell
*IP 30 design
*Withstand 300VAC surge input for 5 seconds(APV-25/35)
*Class 1 or 2 power supply, by LPS(limited power source)test
*Class 2 isolation, no F.G
*Natural cooling
*Protection function: short circui,Overload,over voltage
*APV Constant current design (constant current mode)
*100%full load ageing test
*Low cost,high reliability
*Applicable to LED lighting and LED electronic display screen
*2 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

Overload protection

Over voltage protection

Withstand Voltage

Working Temperature

EMC standards

Connector
input/output

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

APV-12
(constant voltage mode)

APV-12-5

90~264VAC;127~370VDC

Cold start,
70A/230VAC

>105% hiccup mode,auto-recovery

110%~145% Rated output voltage

I/P-O/P:3.75KVAC

-30ºC~+70ºC

EN55015,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11,EN61547

Input: UL,18AGWx2C(15cm);Output:UL,20AGWx2C(15cm)

5V,0~2A

±5%

100mV

76.0%

77x40x29

APV-12-12

12V,0~1A

±5%

120mV

82.0%

APV-12-15

15V,0~0.8A

±5%

120mV

82.0%

APV-12-24

24V,0~0.5A

±5%

150mV

84.0%

APV-16
(constant voltage mode)

APV-16-5

90~264VAC;127~370VDC

Cold start,
50A/230VAC

>105% hiccup mode,auto-recovery

110%~145% Rated output voltage

I/P-O/P:3.75KVAC

-30ºC~+70ºC

5V,0~2.6A

±5%

100mV

76.0%

77x40x29

APV-16-12

12V, 0~1.25A

±5%

120mV

80.0%

APV-16-15

15V,0~1A

±5%

120mV

81.0%

APV-16-24

24V,0~0.67A

±5%

150mV

83.0%

APV-25
(constant voltage mode)

APV-25-5

90~264VAC;127~370VDC

Cold start,
45A/230VAC

>105% hiccup mode,auto-recovery

110%~145% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11

Input: UL,18AGWx2C(15cm);Output:UL,18AGWx2C(15cm)

5V,0~3.5A

±5%

120mV

75.5%

84x57x29.5

APV-25-12

12V, 0~2.1A

±5%

150mV

82.0%

APV-25-15

15V,0~1.68A

±5%

150mV

83.0%

APV-25-24

24V,0~1.05A

±5%

150mV

83.0%

APV-25-36

90~264VAC;127~370VDC

Cold start,
45A/230VAC

>105% hiccup mode,auto-recovery

110%~145% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

36V,0~0.7A

±5%

150mV

84.0%

APV-35
(constant voltage mode)

APV-35-5

5V,0~5A

±5%

120mV

76.5%

84x57x29.5

APV-35-12

12V, 0~3A

±5%

150mV

83.0%

APV-35-15

15V,0~2.4A

±5%

150mV

84.0%

APV-35-24

24V,0~1.5A

±5%

150mV

84.0%

APV-35-36

36V,0~1A

±5%

150mV

85.0%
