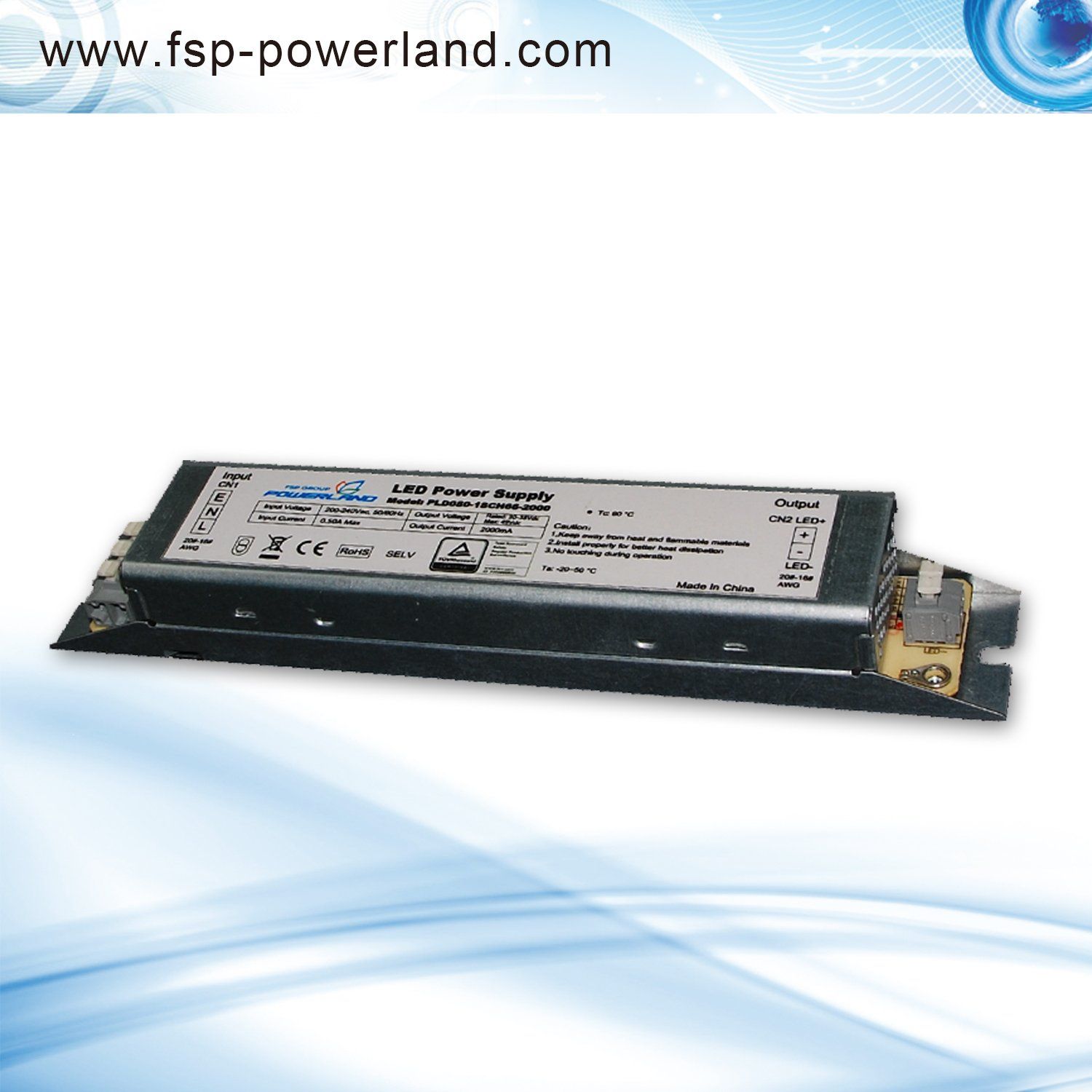

12~76W Constant Current LED Driver with EU AC Input

Name: 12~76W Constant Current LED Driver with EU AC Input
Brand: all-electronics-online.com
SKU: 799484225
Availability: InStock
Rating: 4.9 (80 reviews)

Price:	US $ 1.75-5.55/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD0XX-1SCH681 -XXX
Output Power:	12~76W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	180~264VAC
Pack Sealing Size:	127X40X29 mm&176X41X30 mm
Brand:	Fsp-Powerland

Product Description

12~76W Constant Current LED Drivers with EU AC Input

Powerland's EU AC series offers 12/24/30/40/48/60/76W constant current drivers with 180~264Vac input.

The output current of this series is up to 0.3/0.6/0.7/1.0/1.2/1.4/2.0A,and designed for indoor applications.

Applications
Indoor LED lights

Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 60ºC Tcase

3years warranty at 60ºC Tcase

Constant current output

Safety according to EN61347-1

EMC according to EN55015

Lightning, OVP, SCP, & Open Circuit ProtectionElectrical Specification

Specifications

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
180~264Vac	12~76W	30V … 40V	0.3A … 2.0A	90%	90ºC	0.5A	91W	<20%	>0.92

* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.

Electrical Specifications

Model	PLD012-1SCH681 -300	PLD024-1SCH684-600	PLD030-1SCH684 -700	PLD040-1SCH684 -1000	PLD048-1SCH684 -1200	PLD060-1SCH66 -1400	PLD080-1SCH66 -2000
Output Voltage	30~40V	30~40V	30~40V	30~40V	30~40V	30~40V	30~38V
Output Current	0.3A	0.6A	0.7A	1.0A	1.2A	1.4A	2.0A
Output Power	12W	24W	30W	40W	48W	60W	76W
Max. Current Ripple	180mA	480mA	560mA	800mA	960mA	840mA	1200mA
Voltage Range	180~264Vac	180~264Vac	180~264Vac	180~264Vac	180~264Vac	180~264Vac	180~264Vac
Frequency Range	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz
Max. Input Current @ 230Vac	0.08A	0.16A	0.20A	0.27A	0.35A	0.40A	0.50A
Max. Input Power	15W	29W	34W	47W	57W	68W	91W
Min. Power Factor	0.92	0.93	0.93	0.93	0.93	0.94	0.94
Efficiency	87%	89%	89%	90%	90%	90%	90%
Max. Open Circuit Voltage	55V	55V	55V	55V	55V	55V	55V
THD	<20% @ 230Vac & 80~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-20~+50ºC					-25~+50ºC
Max. Case Temperature	80ºC					90ºC
Surge Protection	1kV					1kV/2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	127x40x29 mm					176x41x30 mm
Mounting Length	137 mm					222 mm
Overall Length	150 mm					232 mm
Weight	0.11 kg	0.11 kg	0.11 kg	0.13 kg	0.13 kg	0.28 kg	0.31 kg
Life Time	50,000 hours @ full load, 60ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

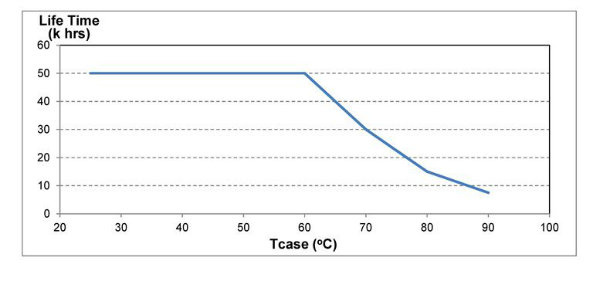

Life Time vs. Case Temperature
