12~76W Indoor Constant Current EU LED Power Supply

Name: 12~76W Indoor Constant Current EU LED Power Supply
Brand: all-electronics-online.com
SKU: 813863605
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 2.75-9.95/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLDXXX-1SCW6-XXX
Output Power:	12~76W
Input Voltage:	90~264VAC
Efficiency:	88%
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~264VAC
Pack Sealing Size:	127X40X29 mm/156X42X30 mm/176X41X30 mm/210X43X30
Brand:	Fsp-Powerland

Product Description

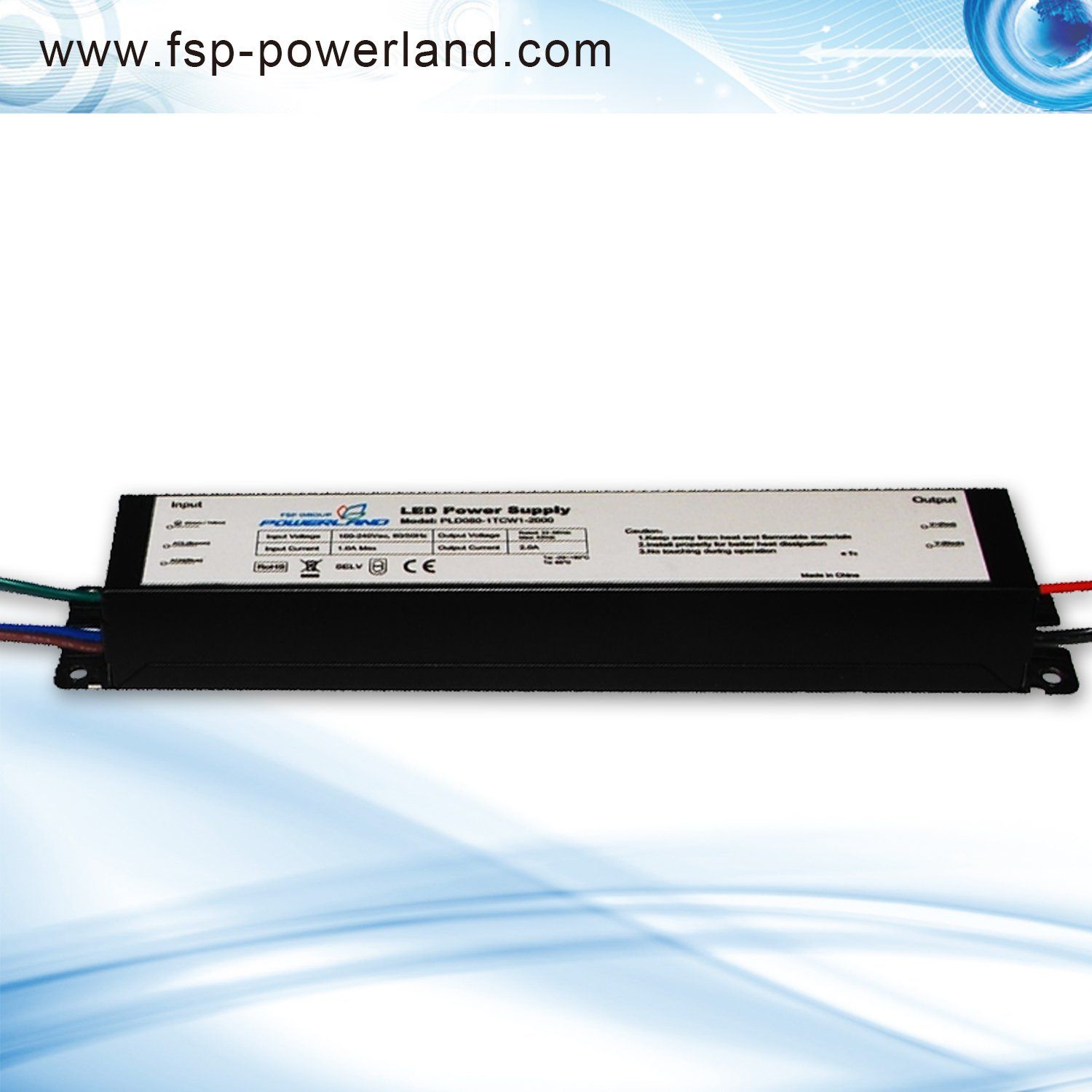

12~76W Indoor Constant Current EU LED Power Supply

Powerland's Univesal AC series offers 12/24/40/48/76W cconstant current drivers with 90~264Vac input.

The output current of this series is up to 0.3/0.6/1.0/1.2/2.0A, and designed for indoor applications.

Applications
Indoor LED lights
Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 55ºC Tcase
3years warranty at 55ºC Tcase
Constant current output
Safety according to EN61347-1
EMC according to EN55015
Lightning, OVP, SCP, & Open Circuit Protection

Specifications

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
90~264Vac	12~76W	30V … 40V	0.3A … 2.0A	88%	90ºC	1.0A	98W	<20%	>0.95

* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.

Electrical Specifications

Model	PLD012-1SCW6-300	PLD024-1SCW6-600	PLD042-1SCF43-1050	PLD048-1SCW2-1200	PLD080-1TCW1-2000
Output Voltage	36~40V	33~38V	30~40V	36~40V	32~38V
Output Current	0.3A	0.6A	1.0A	1.2A	2.0A
Output Power	12W	24W	42W	48W	76W
Max. Current Ripple	180mA	480mA	300mA	720mA	200mA
Voltage Range	90~264Vac	90~264Vac	90~264Vac	90~264Vac	90~264Vac
Frequency Range	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz
Max. Input Current @ 230Vac	0.18A	0.33A	0.54A	0.65A	1.0A
Max. Input Power	16W	31W	50W	63W	98W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	86%	88%	87%	85%	86%
Max. Open Circuit Voltage	49V	49V	55V	44V	43V
THD	<20% @ 230Vac & 90~100% load
Protections	OVP, OCP, SCP				OVP, OTP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-25~+50ºC
Max. Case Temperature	80ºC		90ºC
Surge Protection	1kV			1kV/2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	127x40x29 mm	127x40x29 mm	156x42x30 mm	176x41x30 mm	210x43x30 mm
Mounting Length	137 mm	137 mm	163 mm	222 mm	232 mm
Overall Length	150 mm	150 mm	170 mm	232 mm	240 mm
Weight	0.11 kg	0.11 kg	0.25 kg	0.31 kg	0.40 kg
Life Time	50,000 hours @ full load, 55ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
