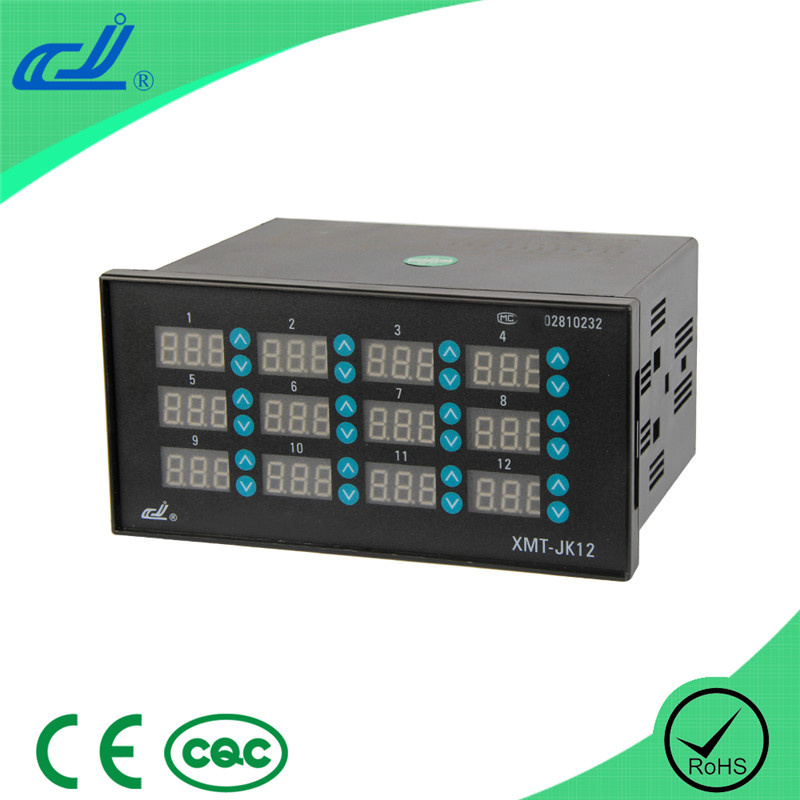

12-Channel Industrial Temperature Controller (XMT-JK1201/2)

Name: 12-Channel Industrial Temperature Controller (XMT-JK1201/2)
Brand: all-electronics-online.com
SKU: 714333862
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	US $ 128/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMT-JK1201/2
Size:	80*160
Type:	Temperature Controller
Control Type:	Digital
Control Method:	Electronic Type

Product Description

The XMT-JK series digital temperature control meter can connection 8 or 12 road sensor and control 8 or
12 road temperature at one time. It is advantage for connection at scene.

Main technical standard

1)Input: Thermocouple: K \J \S \E; Thermal resistance: PT100 \Cu50

2)Display precision: Superior to 0.5 degree

3)Control method: ON/OFF drop in level control, PID control

4)Output method: 7A relay, solid state relay and silicon controlled over zero spring output

5)Working power: AC220V 50Hz, the power's consumption is less than 4W

6)Size: 80 x 160 x 110; Installation hole: 76 x 152

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
