12 Core Fiber Optic Cable with Duct

Name: 12 Core Fiber Optic Cable with Duct
Brand: all-electronics-online.com
SKU: 700117712
Availability: InStock
Rating: 4.9 (70 reviews)

Price:	US $ 0.19/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bending Radius Static:	10d
Bending Radius Dynamic:	20d
Storage/Operating Temperature:	-40c~70c
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	GYFTY
Brand:	Neutral
Sheath Material:	PE

Product Description

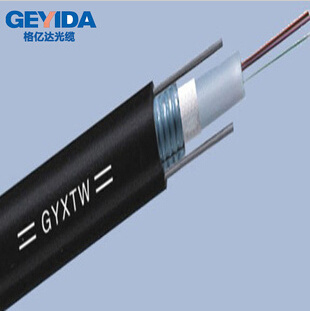

12 CORE FIBER OPTIC CABLE WITH DUCT

Description
The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic(FRP) locate in the center of core as non-metallic strength member. The tubes(and fillers) are stranded around the strength member. The tubes(and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate(APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.

Feature
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Loose tubes filling compound
5. Crush resistance and rlesxibility
6. The following measures are taken to ensure the cable water tight
7. Single fiber reinforoad plastic as the central strength member
8.100% cable core filling
9. Aramid yarn strength member ensure good performance of tensile strength

optical characteristics



		G.652	G.655	50/125um	62.5/125um
attenuation(+20ºC)	@850nm			≤3.0db/km	≤3.0db/km
	@1300nm			≤1.0db/km	≤1.0db/km
	@1310nm	≤0.36db/km	≤0.4db/km
	@1550nm	≤0.22db/km	≤0.23db/km
	@850nm			≤600mhz.km	≤200mhz.km
bandwidth(class A)	@1300nm			≥1200mhz.km	≥600mhz.km
numerical Aperture				0.200±0.015na	0.275±0.015na
cable cut-off waveleng th xcc				≤1620nm	≤1450nm
storage/operating temperature:-40ºC to +70ºC
storage/operating temperature:-40ºC to +70ºC

Mechanical and Environmental Characteristics

Items	Unite	Specifications
Tension(Long Term)	N	500
Tension(Short Term)	N	1000
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	ºC	-20~+60
Operating Temperature	ºC	-40~+70
Storage Temperature	ºC	-40~+70

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
