12 Core Optical Fiber Patch Cord

Name: 12 Core Optical Fiber Patch Cord
Brand: all-electronics-online.com
SKU: 838617625
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 0.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Color:	Green
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	ISO9001
Brand:	Neutral
Sheath Material:	PVC. LSZH

Product Description

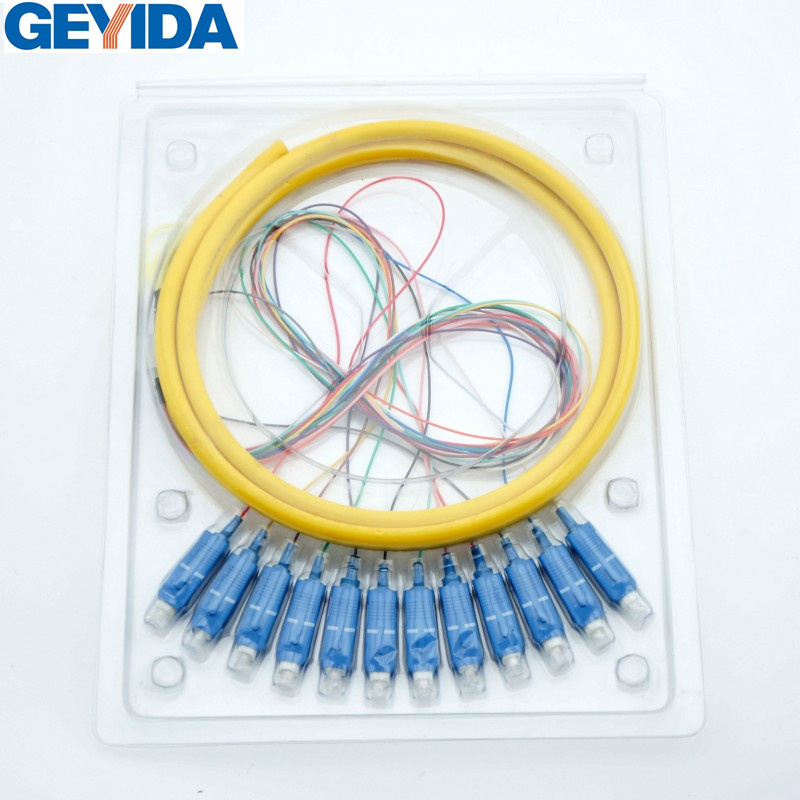

SC/APC 12 Core Fiber Optic Pigtail

Features:
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Insert-pull, key-oriented coupling mechanism which allows high repeatable, low-loss connection Simplex, Duplex and Multi-core accessories for standard or customized structure.
PC/UPC/APC Polish
Comply with Telcordia GR-326-CORE Specification
The material of plastic plug comply with the request of UL94V-O And Standard of RoHS

Parameter	Unit	SM PC	SM UPC	SM APC	MM PC	ST, MU SM PC
Insertion loss(typical)	db	≤ 0.3	≤ 0.2	≤ 0.3	≤ 0.2	≤ 0.3
Return loss	db	≥ 45	≥ 50	≥ 60	≥ 30	≥ 45
Operating wavelength	nm	1310, 1510	1310, 1510	1310, 1510	1310, 1510	1310, 1510
Exchangeability	db	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Vibration	db	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2	≤ 0.2
Operating temperature	° C	-40~75	-40~75	-40~75	-40~75	-40~75
Storage temperature	° C	-45~85	-45~85	-45~85	-45~85	-45~85
Cable diameter	mm	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9	φ 3.0, φ 2.0, φ 0.9

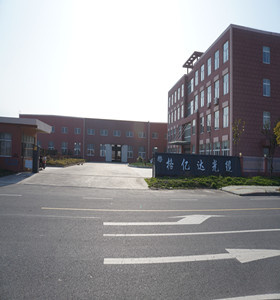

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
