12 Core Sc/Upc Single-Mode Color Fiber Optic Pigtail
| Price: |
US $ 0.21/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Fiber Optic Pigtail |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keyword: |
Pigtail |
| Connector: |
Sc, LC, FC, St etc. |
| Jacket Od: |
0.9/2.0/3.0mm |
| Polish: |
Upc/APC |
| Jacket Material: |
PVC/LSZH/Ofnp |
| Ferrule Material: |
Zirconia Ceramic |
| Warranty Time: |
2 Years |
| Delivery Time: |
1-5 Working Days |
| Shipment: |
by Sea, Air Cargo, DHL, UPS, EMS etc. |
| Place Of Origin: |
Shenzhen, China(Mainland) |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Core: |
12 Core |
Product Description
Fiber Optic Pigtail are a great solution for fusion splicing inside of a fiber optic enclosure. The Low Insertion loss, low backreflection color-coded 900um tight buffer pigtails is designed for high fiber count splicing applications. Color coded to industry standards makes enclosure layout as simple as following the standard color code.
12 core SC/UPC Single-Mode Color Fiber Optic PigtailSpecification:| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 |
| Exchangeability | dB | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | °C | -40~80 | -40~80 | -40~80 | -40~80 |
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 |
12 core SC/UPC Single-Mode Color Fiber Optic PigtailFiber Optic Pigtail Color:| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Purple | Pink | Aqua |
12 core SC/UPC Single-Mode Color Fiber Optic PigtailKey Features and Applications:* Color coded fiber jacked, easy to manage for on-site operation* Low insertion loss, Low back reflection loss* Identifiable fibre buffer colours under all lighting conditions* Reduces installation timeAvoids incorrect patching by possible fiber flipping

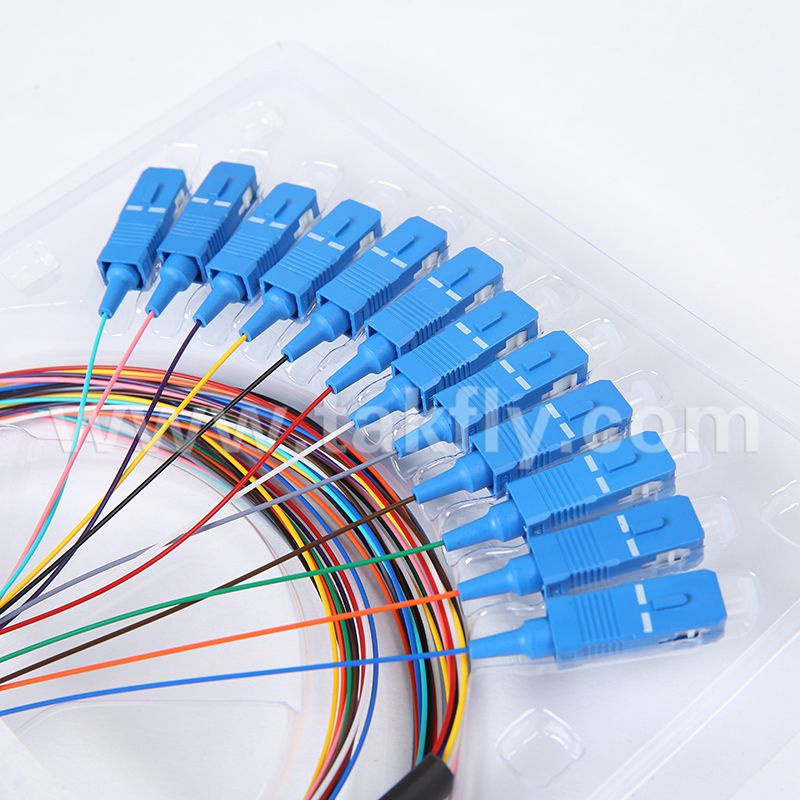

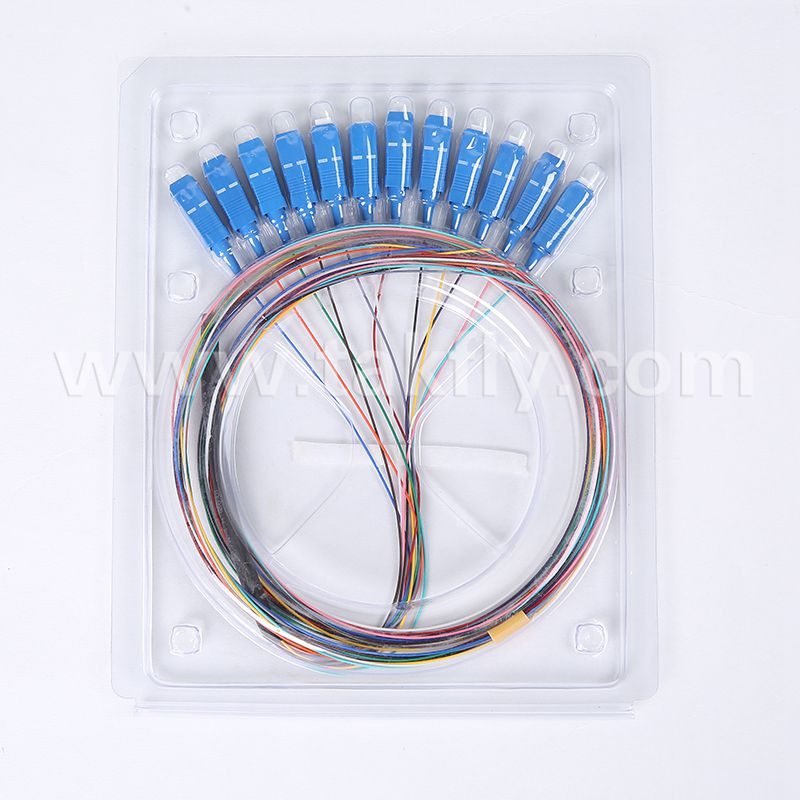

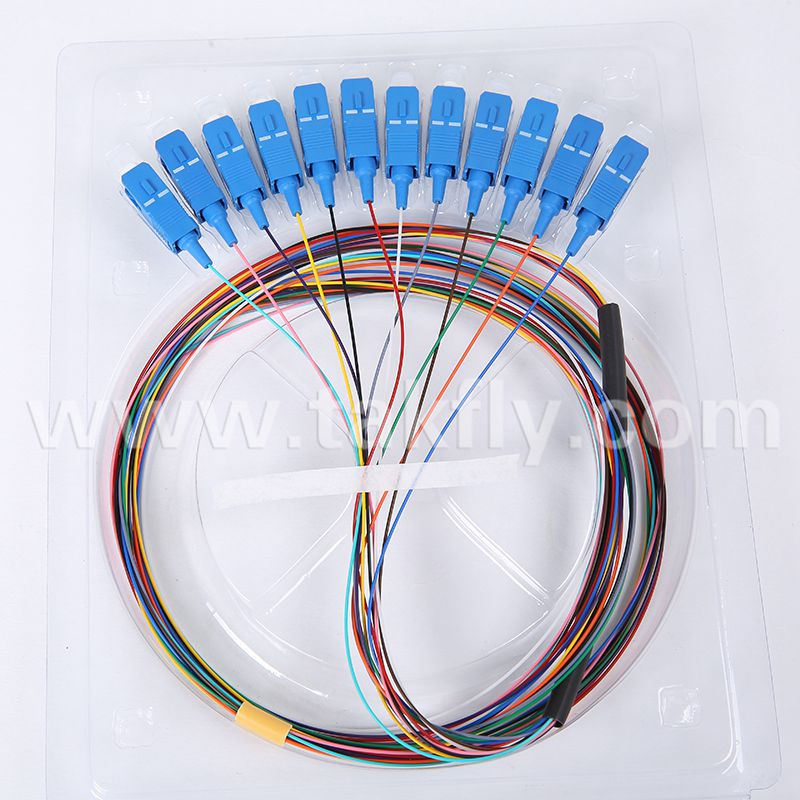

* Data Centres, premise installations* Telecomunication networks* Ethernet, fibre channel, ATM, LAN, MAN and WAN* Data communication* Indoor Applications12 core SC/UPC Single-Mode Color Fiber Optic PigtailProduct Show:

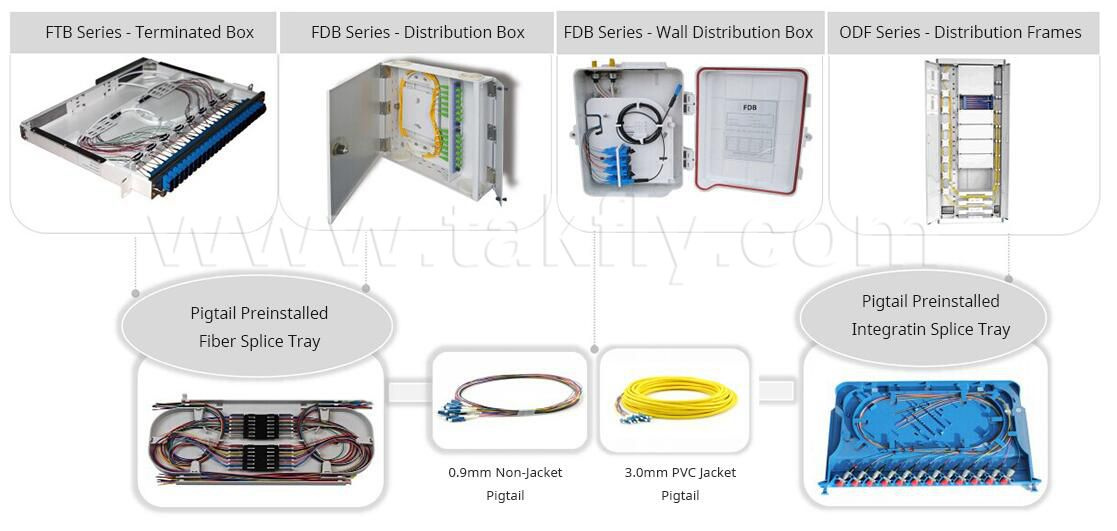

12 core SC/UPC Single-Mode Color Fiber Optic PigtailApplications:

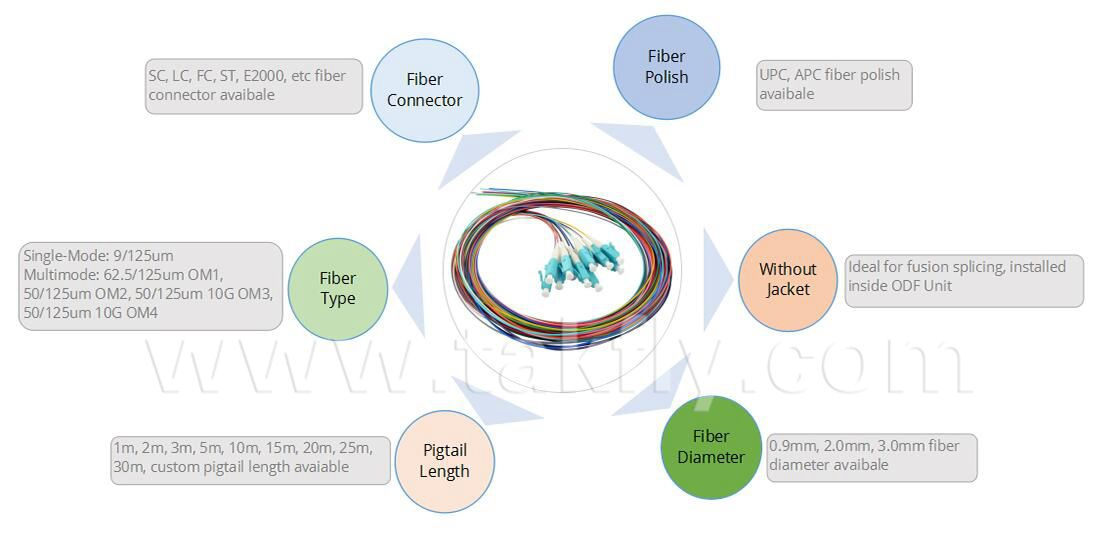

12 core SC/UPC Single-Mode Color Fiber Optic PigtailOrder Information:
Certificates:

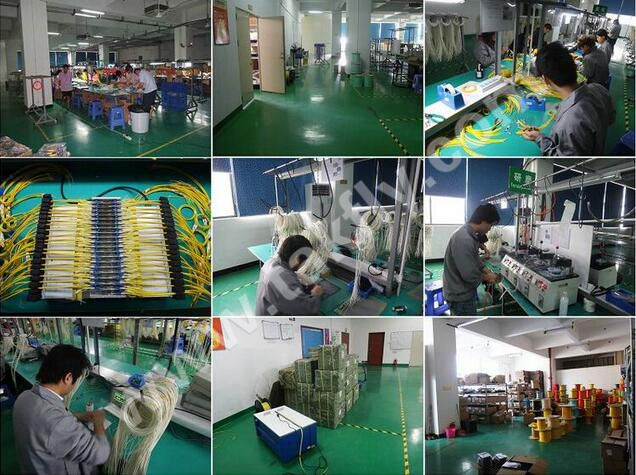

Factory Photo:
If you interest or have any question, Why not send inquiry? Welcome & Just Do It !!!
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
