| Prod Model: |
Indoor Flat Fiber Optic Ribbon Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
Single-Mode or Multi-Mode |
| Jacket: |
PVC/LSZH/Ofnp |
| Shape: |
Flat |
| Cable Count: |
2-12 Cores |
| Operating Temperature: |
-20ºC~+85ºC |
| Installation Temperature: |
-20ºC~+85ºC |
| OEM: |
Available |
| Laying Methods: |
Indoor Distribution |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Optional |
Product Description

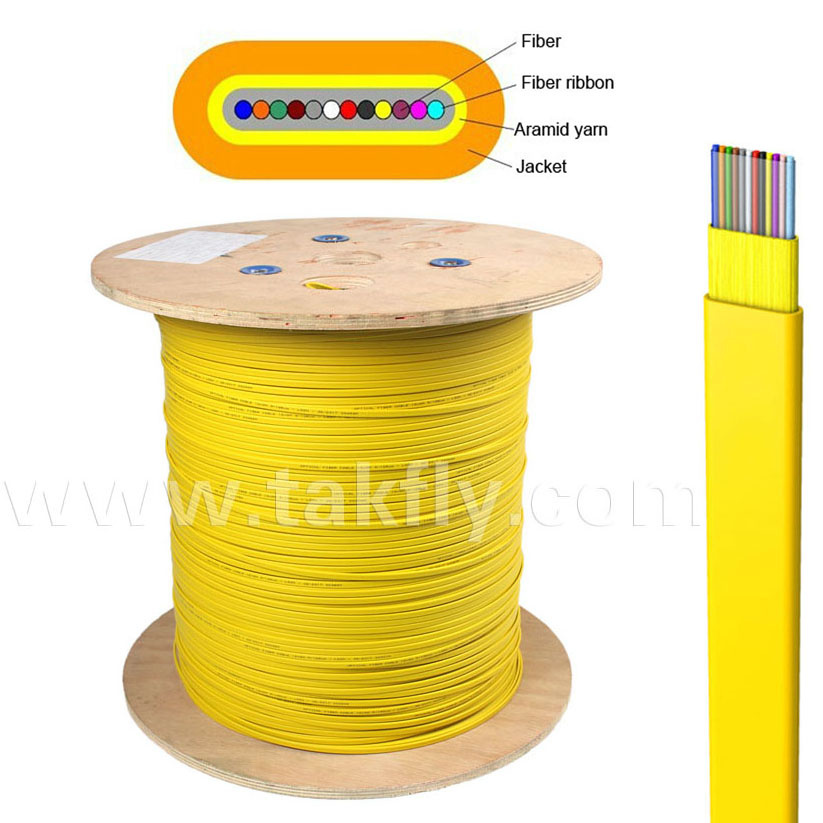

12 Core Singlemode GJDFBV Indoor Flat Fiber Optic Ribbon Cable Description:GJDFJV corning fiber cable flat fiber ribbon cable use fiber ribbon as optical communication medium,the fiber ribbon wrapped with a layer of aramind yard as strength member units,and the cable is completed with a flat PVC or LSZH jacket.
Specifications:12 core Ribbon Fiber Optical Indoor Cable
1.Low Insertion Loss,High Return Loss
2.ROHS compliant
3.Mfg price
Features:1. Aramid yarn as strength member make cable have excellent tensible strength
2. Compact structure with high fibre density,good performance of flexibility and crush resistance
3. The jacket anti-corrosion,anti-water,anti-ultraviolet radiation,flame-retardant and harmless to environment etc.
4. All dielectric structure protect it form electromagnetic influence
5. Scientific design with serious processing art
Application:1. Used in indoor cabling, especially used in good laying conditions
2. Used in optical connections in optical communication equipment rooms and optical distribution frames, optical appqratus and equipments
3. Used in pigtails and patch cords
4. Used as access building cable

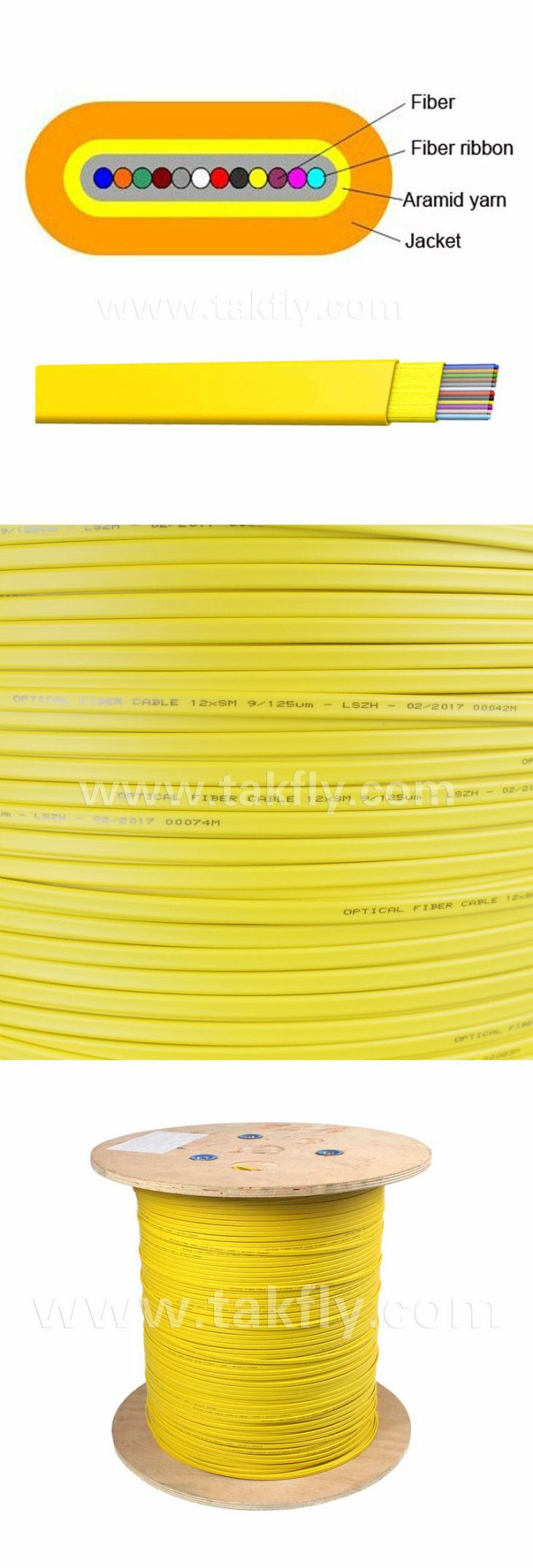

Structure Characters:Adopt optic fiber ribbon as the central.unit aramid strength member around.
Flexible,easy to peel off,small bend radius.
Fiber count:2~12 core
Options avilable for PVC,LSZH,OFNP
Technical Parameters:| No. | Items | Unit | Specification |
| G.652D |
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 |
| 2 | Cladding Diameter | | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | | μm | ≤0.5 |
| 5 | Coating Diameter | | μm | 245±5 |
| 6 | Coating Non-Circularity | | % | ≤6.0 |
| 7 | CCladding-Coating Concentricity Error | | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | | μm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 |
| Fiber Count | 12 |
| Optical Fiber Ribbon | Width | ≤3.4mm |
| Thickness | ≤0.4mm |
| Strength Member | Kevlar |
| Jacket | Dimension | (2.2±0.3)mm×(5.0±0.4)mm |
| Material | LSZH |
| Color | Yellow |
Mechanical and Environmental Characteristics:
| Items | Unite | Specifications |
| Tension(Long Term) | N | 80 |
| Tension(Short Term) | N | 200 |
| Crush(Long Term) | N/10cm | 200 |
| Crush(Short Term) | N/10cm | 500 |
| Min. Bend Radius(Dynamic) | mm | 20H |
| Min. Bend Radius(Static) | mm | 10H |
| Installation Temperature | ºC | -20~+85 |
| Operating Temperature | ºC | -20~+85 |

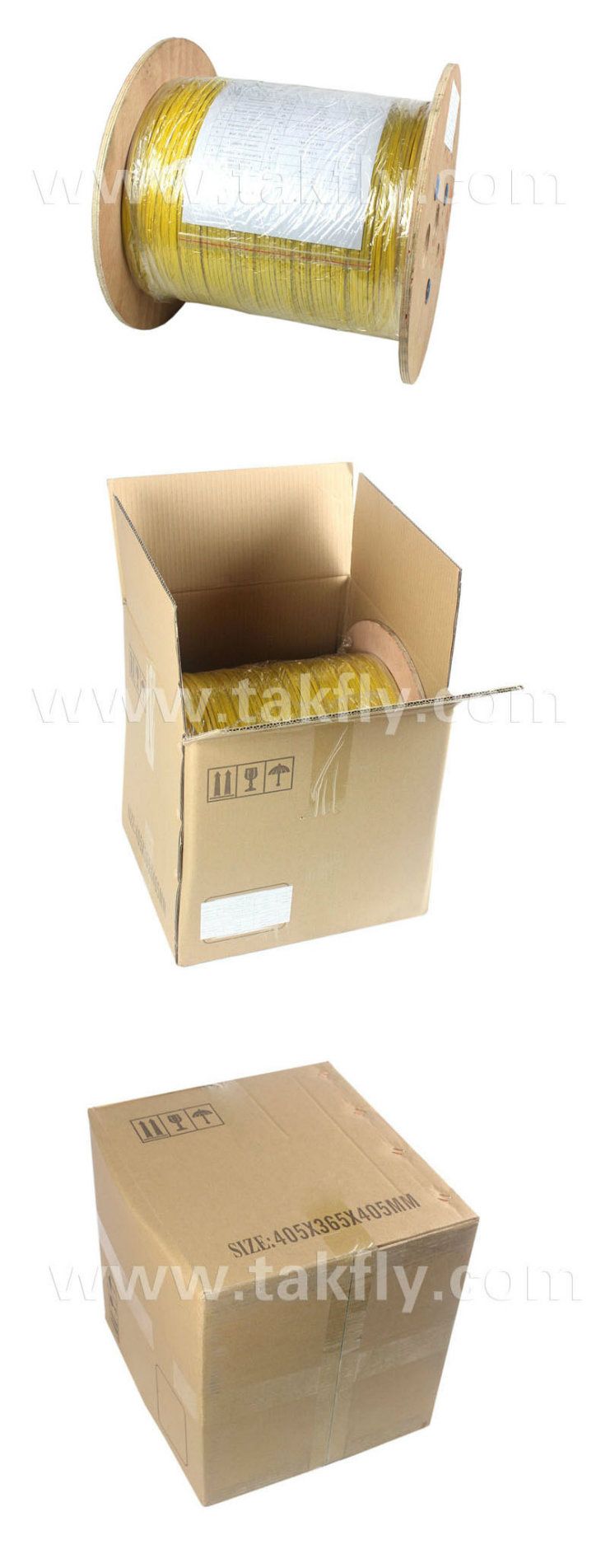

Package:Wooden drums with test report.
1000m/roll
weight 15.5kg
roll wide 39cm, diameter 37cm.
Carton size 40.5*36.5*40.5cm
Contact:Dear friend,if you want to know more details,please contact with me directly.My information below.Pls kindly check.

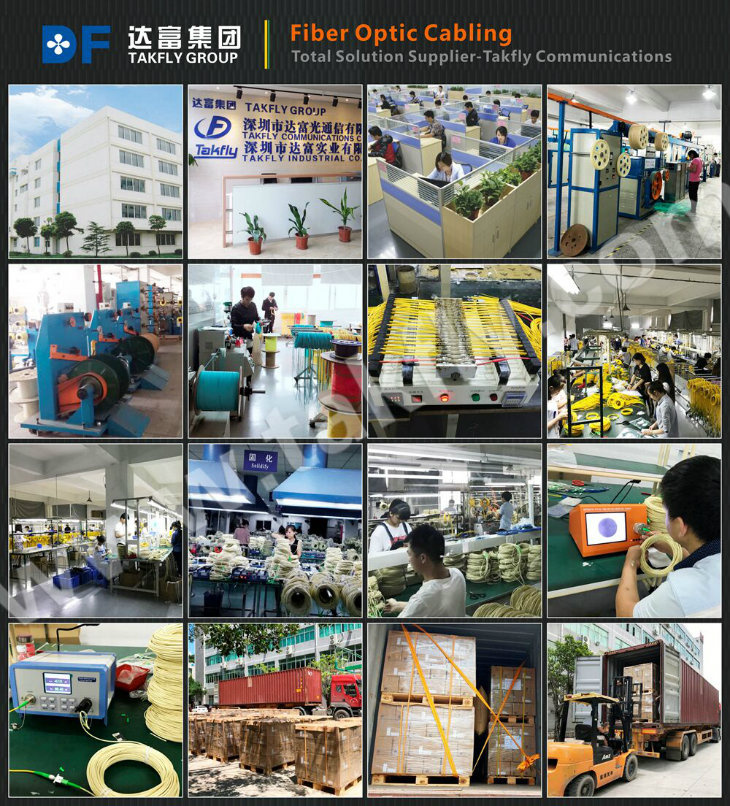

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
