12 Cores Fiber Optic MTP Elite Singlemode Patch Cable

Name: 12 Cores Fiber Optic MTP Elite Singlemode Patch Cable
Brand: all-electronics-online.com
SKU: 819662865
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	US $ 30-31/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-005
Color:	Yellow
Connector:	MTP Elite
Polish:	APC
Fiber Count:	12 Cores
Data Transmittion:	40Gig
Housing:	PC Plastic
Outer Jacket:	LSZH
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	MTP

Product Description

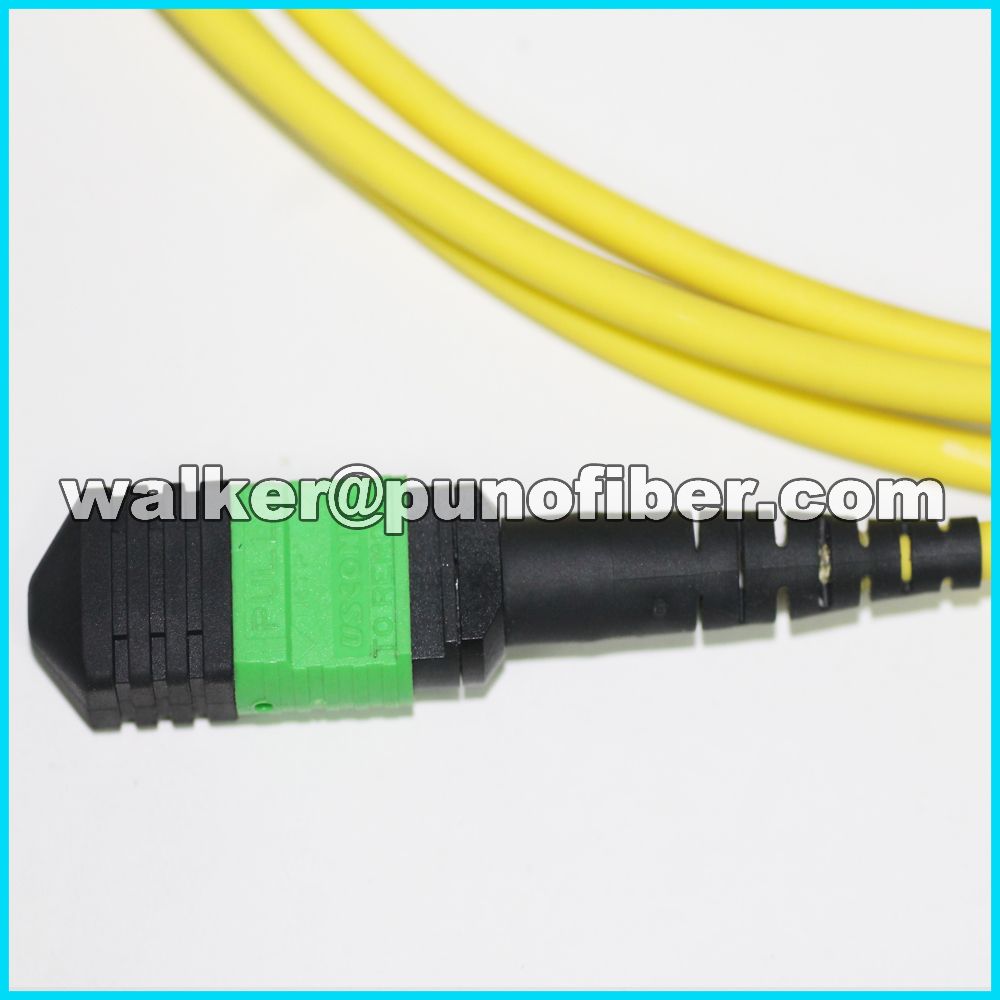

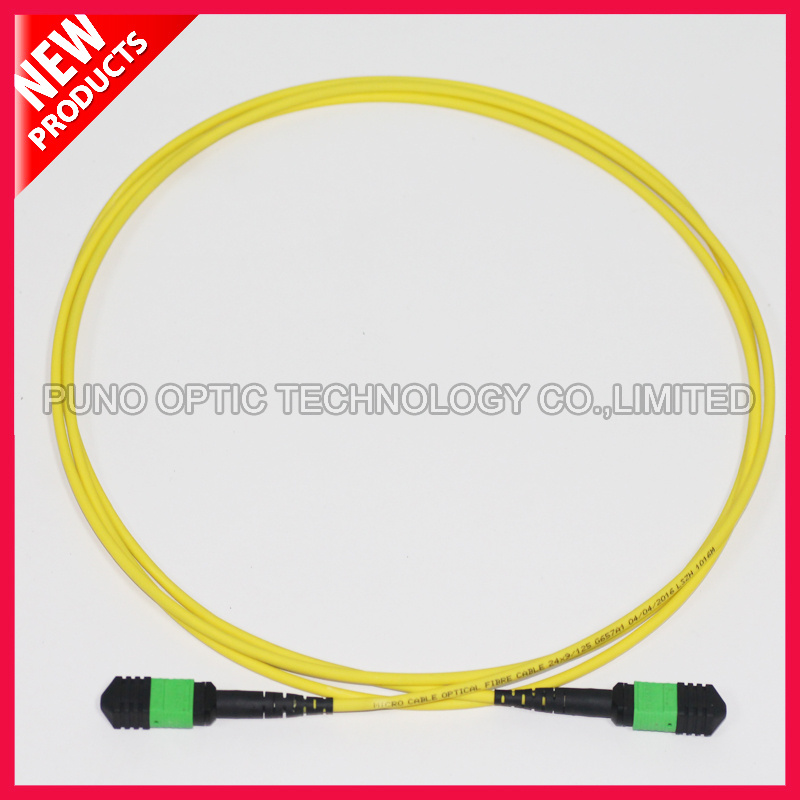

12 Cores Fiber Optic MTP Elite Singlemode Patch Cable

Feature:

√ Precision low-loss factory polished connector with integral splice and fiber clamp;
√ Simple and fast connector termination, with no adhesives or field polishing required;
√ Provisions for visual light source verification to achieve optimal splice transmission;
√ Fibers supported: OM1, OM2, OM3, OM4, SM;
√ Wide operating temperature range for thermally stable optical performance.

Application:

√ Intra-building backbone and horizontal fiber interconnections;
√ Inter-building OSP entrance terminations;
√ Data Center and WAN main cross-connect terminations;
√ Quick deployment remote data links;
√ Fiber to the Subscriber (FTTX);
√ Low reflection angle polish single-mode applications.

Specification:

Connector A	MTP^® Female (Pinless)	Connector B	MTP^® Female (Pinless)
Fibre Mode	OM4 50/125μm	Wavelength	850/1300nm
Polish Type	UPC to UPC	Mini Bend Radius	30mm
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥20dB
Jacket OD	3.0mm	Cable Jacket	Plenum (OFNP)
Installation Tensile Load	100N	Long-Term Tensile Load	50N
Storage Temperature	-40ºC to +85ºC	Operating Temperature	-10ºC to +70ºC

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
