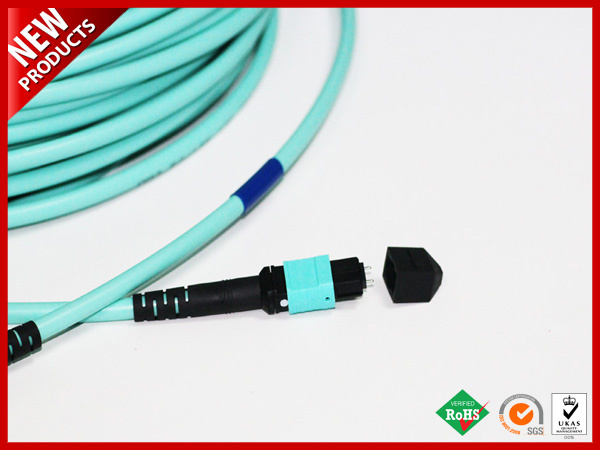

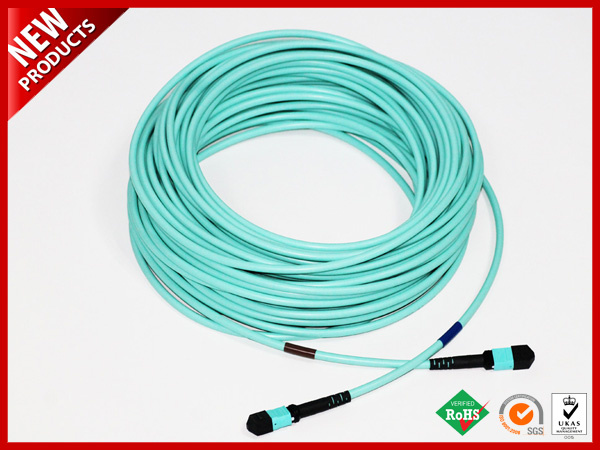

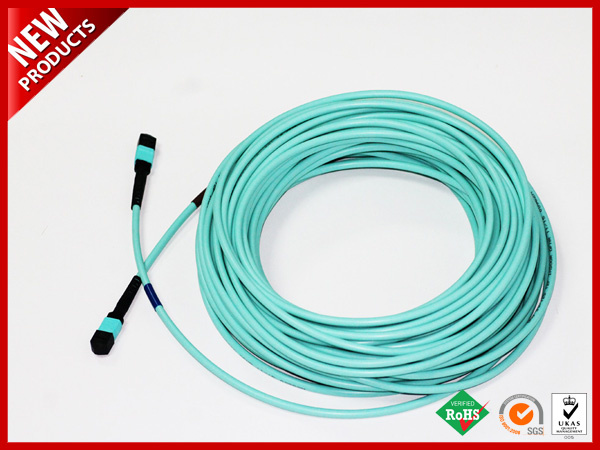

12 Cores MTP to MTP Multimode OM3 Aqua Trunk Cable

Name: 12 Cores MTP to MTP Multimode OM3 Aqua Trunk Cable
Brand: all-electronics-online.com
SKU: 811530565
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 22-27/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN - 001
Application:	Data Center
Type:	Multi-mode Fiber
Certification:	CCC
Connection Structure:	MTP
Core:	12F
Brand:	PUNO

Product Description

12 Cores MTP - MTP Multimode OM3 Aqua Trunk Cable

In the past decades, the network speed has a great leap from 10Mbit/s in 1983 to today's 40 / 100 Gbit/s. Thus new technologies have been developed to support the new transmission rate. Of which MPO technology with multifiber connector make the migration to 40 / 100 Gigabit Ethernet easier and more efficient, as it offers ideal conditions for setting up high-performance data networks in data centers to achieve greater bandwidth and handle future requirements. This article will briefly introduce the basics of MPO technology and its utilization in 40G Ethernet.

Application

√ Multiple 100G channels;
√ CFP to CFP direct connect;
√ Distribution area connections;
√ 100G patch cord connection;
√ 100G extender cabling.

Feature

√ High Density Fiber Management Solution;
√ 8 or 12 Strands per connecter;
√ Mates to all MTP or MPO connectors;
√ Precision polished for minimum insertion loss and back reflection;
√ Push / Pull Connector Mating;
√ Plenum Rated Cable;
√ Fanouts to discrete simplex connecters available;
√ 50 and 62.5 micron core fiber available.

Environmental

Operating Temperature Rating	-5ºC to +70ºC
Storage Temperature Rating	-40ºC to +70ºC

MPO Connector

MPO Multimode (OM3 and OM4) 24 fibre Connector
Connector Housing	Aqua
Ferrule	MT ELITE
Typical Insertion Loss	0.10 dB (average)
Maximum Insertion Loss	0.35 dB (Max)
MPO Singlemode (OS1/ OS2) 24 fibre Connector
Connector Housing	Yellow
Ferrule	MT ELITE APC
Typical Insertion Loss	0.10 dB (average)
Maximum Insertion Loss	0.35 dB (Max)
Return Loss	> 60 dB

Cable Technical Parameters

Cable Count	Out sheath Diameter(mm)	Weight (kg)	Minimum allowable Tensile Strength (N)		Minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (mm)		Storage temperature (°C)
Cable Count	Out sheath Diameter(mm)	Weight (kg)	Short term	Long term	Short term	Long term	Short term	Long term	Storage temperature (°C)
2	3.5*2.5	13	500	100	500	100	20D	10D	-20ºC+60ºC
4	3.5*2.5	13	500	100	500	100	20D	10D	-20ºC+60ºC
6	4.0*2.5	15	500	100	500	100	20D	10D	-20ºC+60ºC
8	4.5*2.2	15	500	100	500	100	20D	10D	-20ºC+60ºC
12	4.8*2.2	17	500	100	500	100	20D	10D	-20ºC+60ºC

Products Overviews

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
