12 Cores Singlemode MPO Indoor Flat Fiber Optic Ribbon Cable

Name: 12 Cores Singlemode MPO Indoor Flat Fiber Optic Ribbon Cable
Brand: all-electronics-online.com
SKU: 824936405
Availability: InStock
Rating: 4.3 (147 reviews)

Price:	US $ 0.23/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	12 Cores Ribbon Cable
Model No:	Indoor Flat Fiber Optic Ribbon Cable
Fiber Type:	Single-Mode or Multi-Mode
Cable Core:	2-12 Cores
Operating Temperature:	-20'c~+85'c
Installation Temperature:	-20'c~+85'c
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

12 Core Singlemode GJDFBV Indoor Flat Fiber Optic Ribbon Cable

Description:
GJDFJV corning fiber cable flat fiber ribbon cable use fiber ribbon as optical communication medium,the fiber ribbon wrapped with a layer of aramind yard as strength member units,and the cable is completed with a flat PVC or LSZH jacket.

Specifications:
12 core Ribbon Fiber Optical Indoor Cable
1.Low Insertion Loss,High Return Loss
2.ROHS compliant
3.Mfg price

Features:
1. Aramid yarn as strength member make cable have excellent tensible strength
2. Compact structure with high fibre density,good performance of flexibility and crush resistance
3. The jacket anti-corrosion,anti-water,anti-ultraviolet radiation,flame-retardant and harmless to environment etc.
4. All dielectric structure protect it form electromagnetic influence
5. Scientific design with serious processing art

Application:
1. Used in indoor cabling, especially used in good laying conditions
2. Used in optical connections in optical communication equipment rooms and optical distribution frames, optical appqratus and equipments
3. Used in pigtails and patch cords
4. Used as access building cable

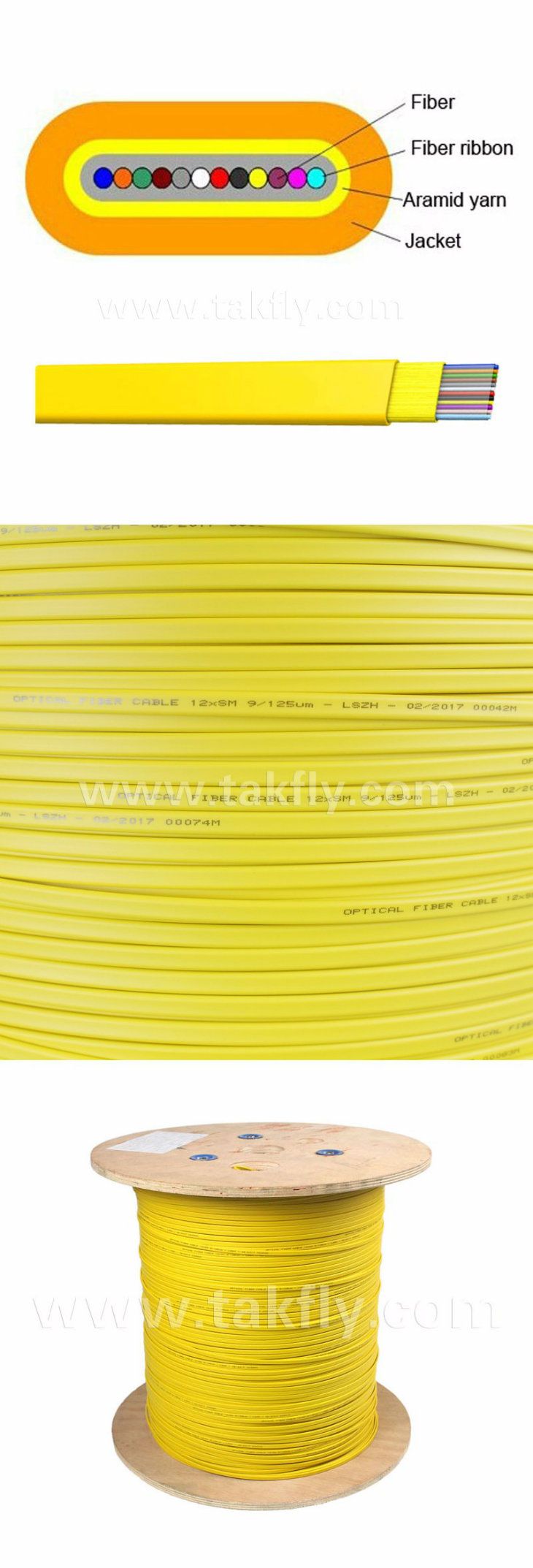

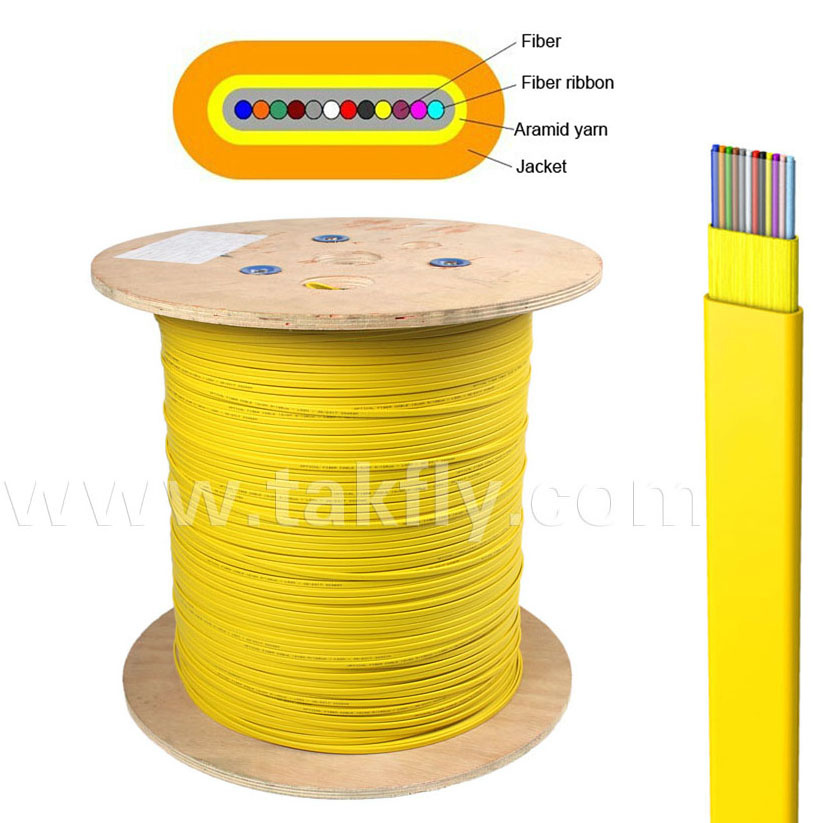

Structure Characters:
Adopt optic fiber ribbon as the central.unit aramid strength member around.
Flexible,easy to peel off,small bend radius.
Fiber count:2~12 core
Options avilable for PVC,LSZH,OFNP

Technical Parameters:

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	CCladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		μm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3

Fiber Count		12
Optical Fiber Ribbon	Width	≤3.4mm
Optical Fiber Ribbon	Thickness	≤0.4mm
Strength Member		Kevlar
Jacket	Dimension	(2.2±0.3)mm×(5.0±0.4)mm
	Material	LSZH
	Color	Yellow

Mechanical and Environmental Characteristics:

Items	Unite	Specifications
Tension(Long Term)	N	80
Tension(Short Term)	N	200
Crush(Long Term)	N/10cm	200
Crush(Short Term)	N/10cm	500
Min. Bend Radius(Dynamic)	mm	20H
Min. Bend Radius(Static)	mm	10H
Installation Temperature	ºC	-20~+85
Operating Temperature	ºC	-20~+85

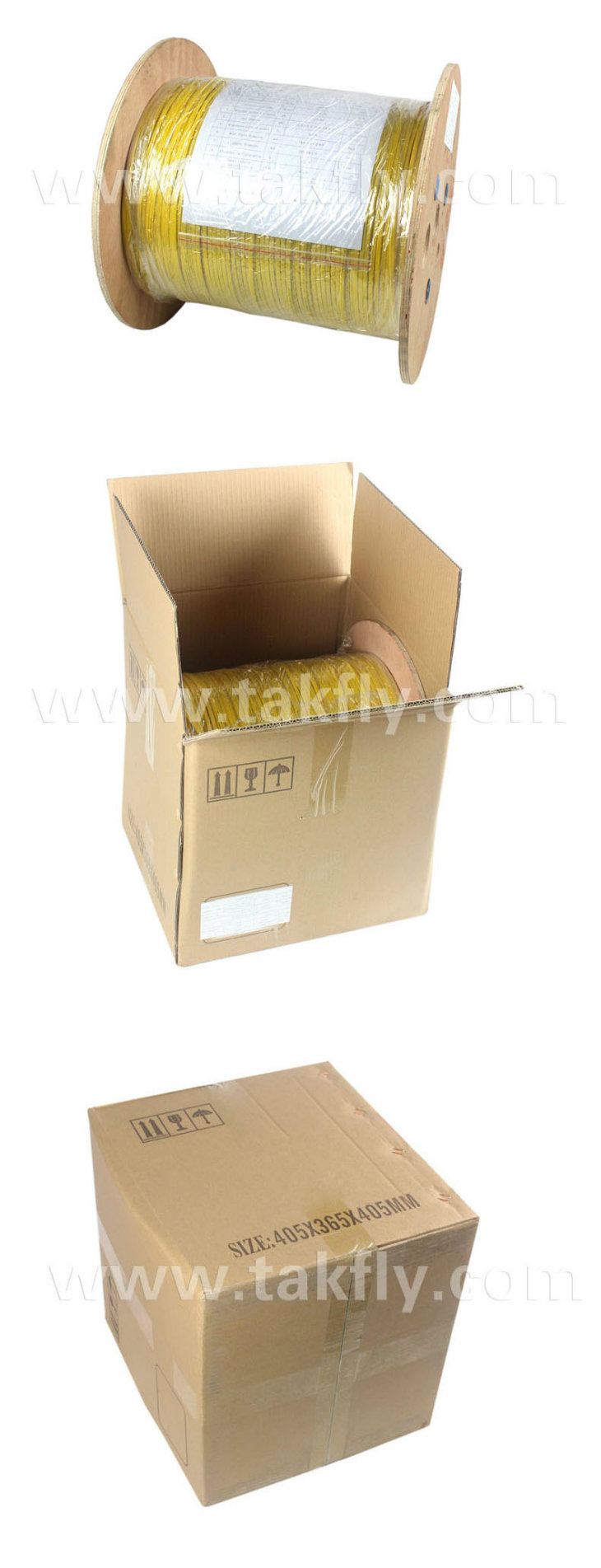

Package:

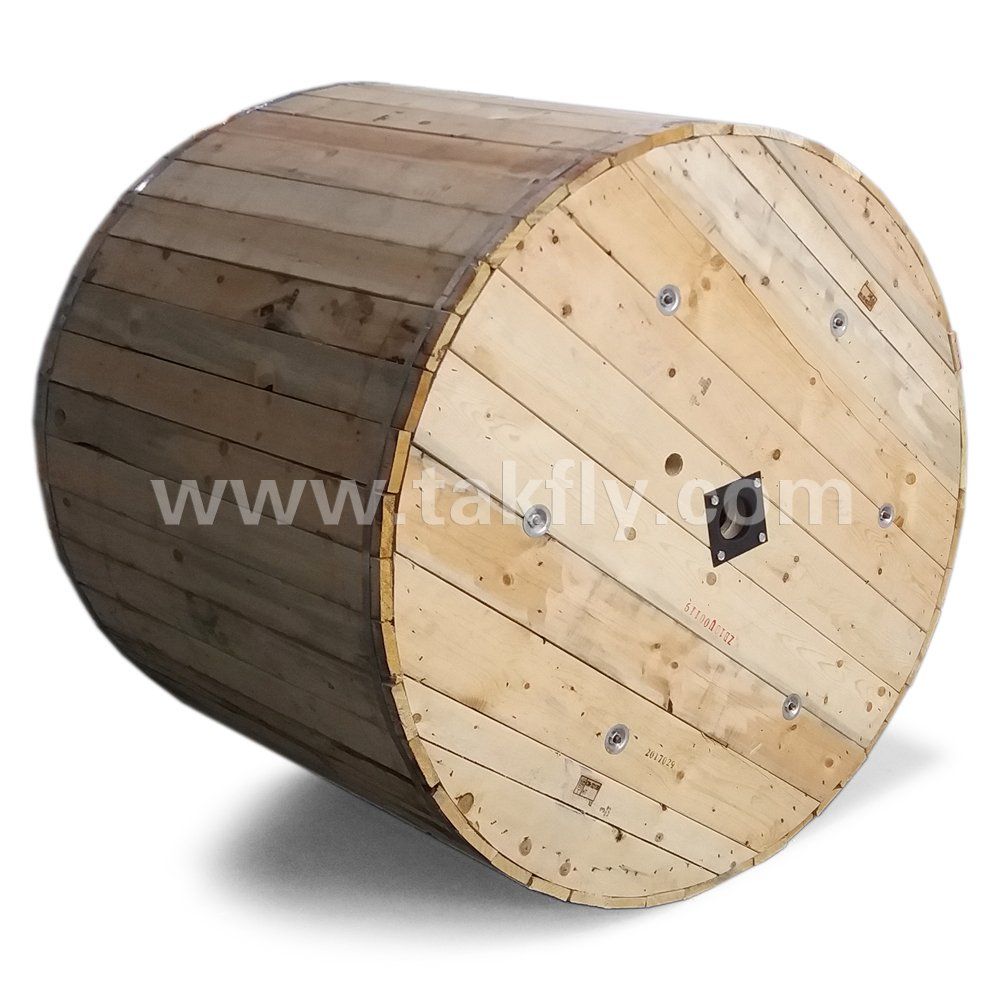

Wooden drums with test report.
1000m/roll
weight 15.5kg
roll wide 39cm, diameter 37cm.
Carton size 40.5*36.5*40.5cm

Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable

Quality Control
All products must go through five checks before manufacturing process

1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping

Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service

Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB

Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement

Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.

Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24 hours too.

Have a happy shopping time *^-^*

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

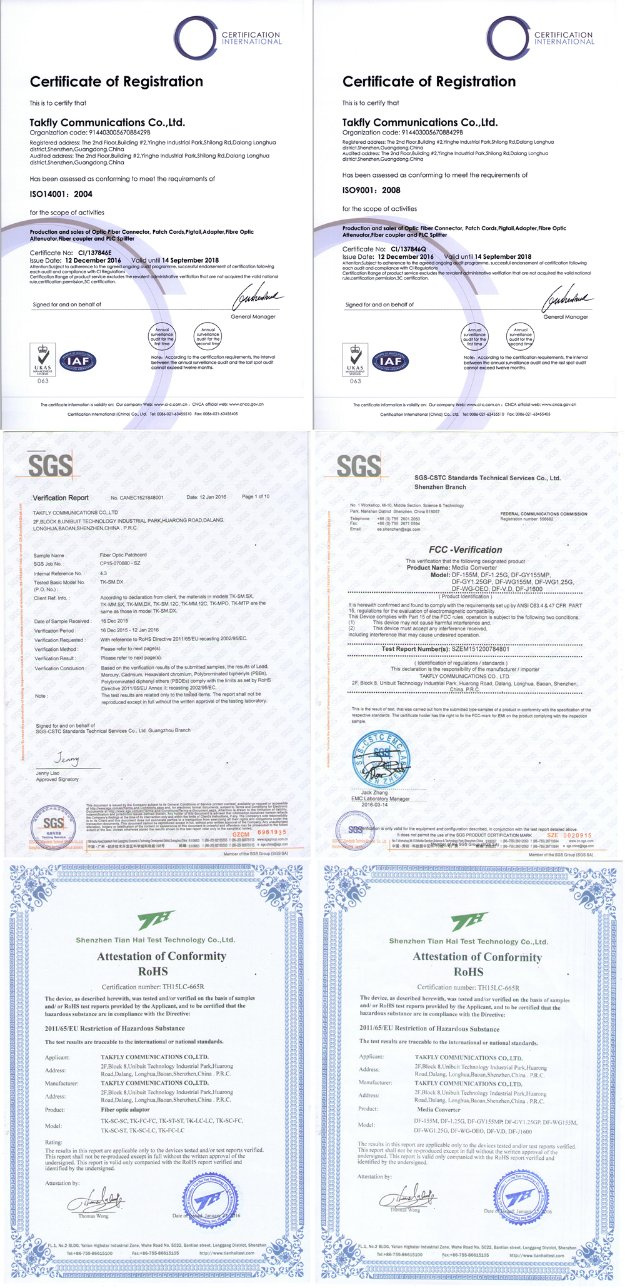

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
