12 Fibers OS2 Multimode MPO-MPO Fiber Optic Patch Cord

Prod Model:	PN-008
Colore:	Orange
Outer Jacket:	LSZH
Connector:	Senko MPO
Length:	2 Meters
Fiber Count:	12
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	MPO-MPO
Sheath Material:	PVC,LSZH

Product Description

12 Fibers OM2 Multimode MPO-MPO Patch Cord
We supply MTP and MPO multimode fiber optic cables.  Available configurations are Female to female or a male to male and male to female.  Cable options include, Riser Rated Jacket, Plenum rated jacket, LSZH. Round cable, ribbon cable, or bare ribbon cable.   The male version has MTP pins.  Available in 4,8,12, 24, and 48 fiber array configurations.  We use USConec MTP fiber optic connectors for all of our MTP and MPO terminations so that the highest performance is accomplished. Many additional options and combinations are available.  All multi fiber optic cables are customizable.   The MTP multimode connector is a mtp flat polished connector.  There is a low loss version for multimode 62.5/125, or 50/125 at the customers request.

Features & Benefits:
√ Precision molded MT ferrule;
√ High precision guide pins for exact alignment;
√ Compact design, up to 4,8,12,24 fibers;
√ IEC 61754-7 Compliant;
√ EIA/TIA-604-5 Compliant.

Application:
√ Asynchronous Transmission Mode(ATM);
√ Gigabit Ethernet;
√ Active Deviced/Transceiver Interface;
√ CATV, Video and Multimedia;
√ Premise Installations;
√ Telecommunication Networks;
√ Parallel optical interconnect between PC Cards and patch panels;
√ Interconnection for O/E modules;
√ Industrial & Military;
√ Optical Switch interframe connections.

MTP/MPO Specification:

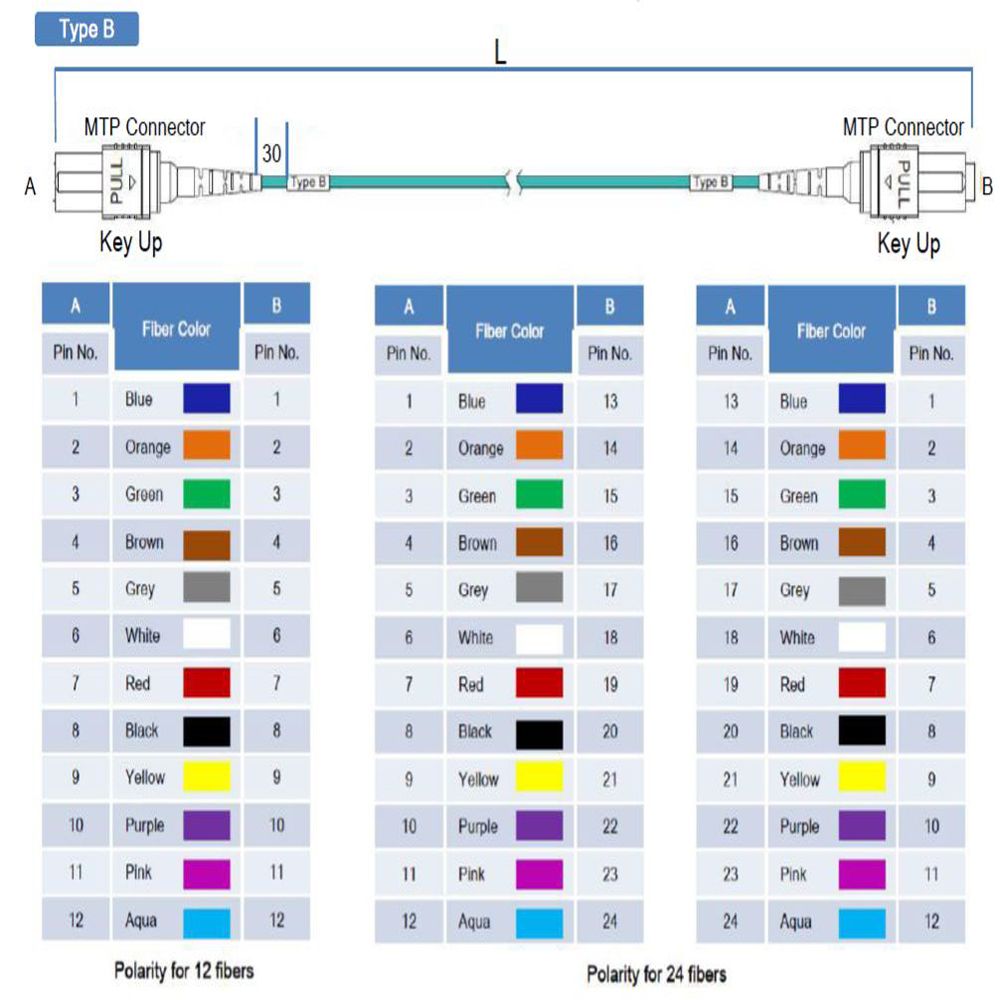

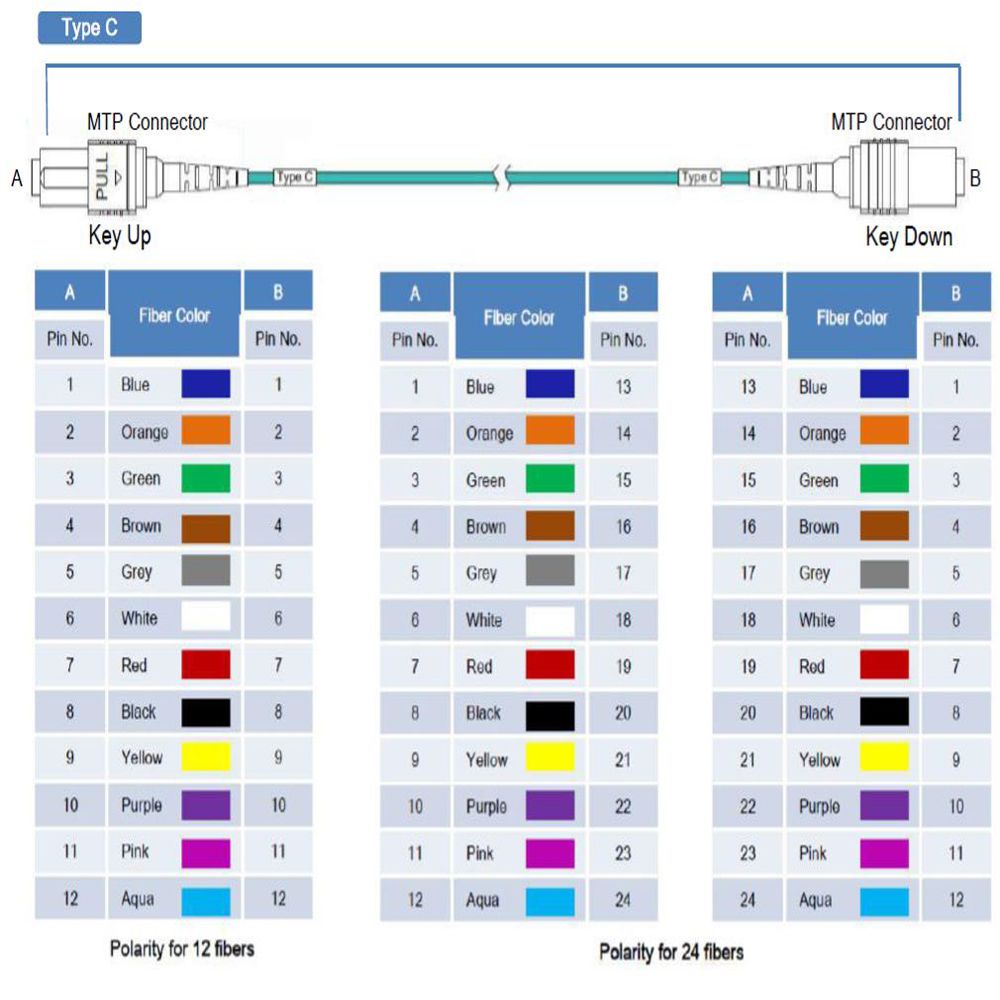

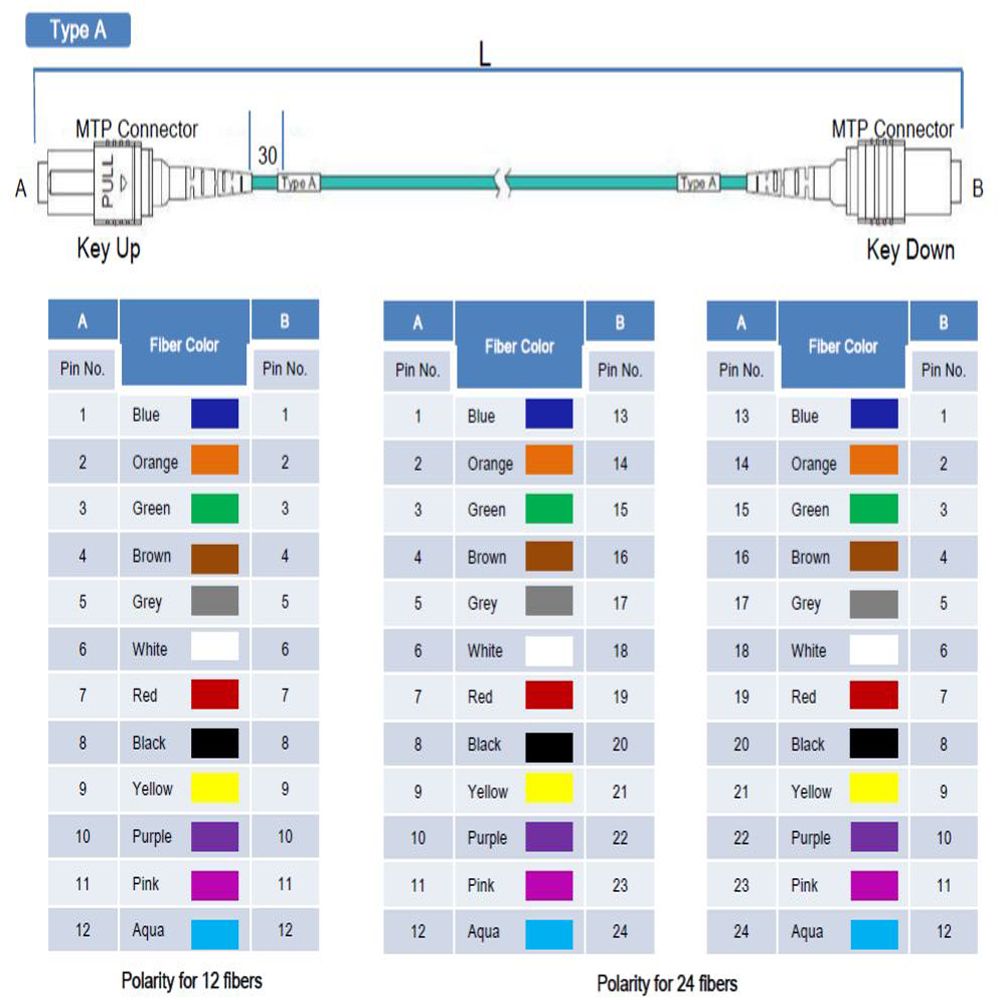

Drwaing structure:
