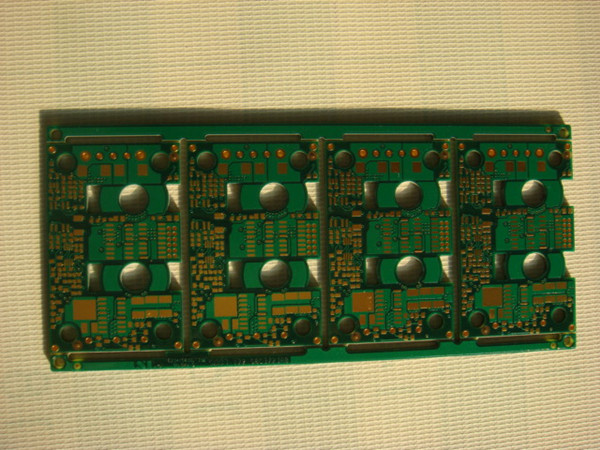

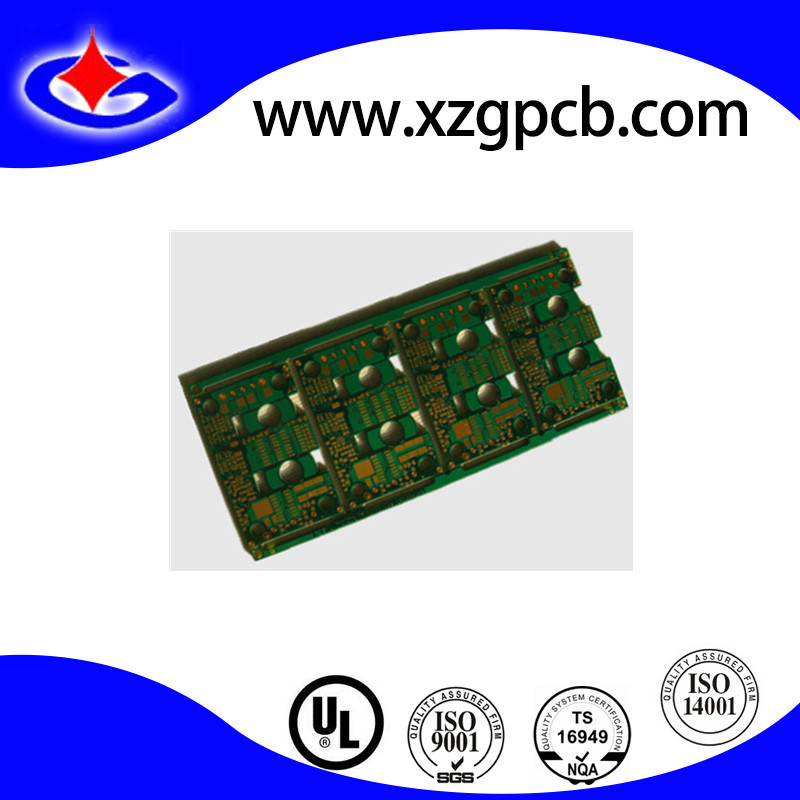

12 Layers 3.0mm Power Suply PCB with Heavy Copper 4oz

Name: 12 Layers 3.0mm Power Suply PCB with Heavy Copper 4oz
Brand: all-electronics-online.com
SKU: 775791345
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	US $ 0.05-0.08/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	w01220150314
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Solder Mask Colour:	Green
Silkscreen Colour:	No
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Application:	Power
Brand:	Xzg

Product Description

Specifiction:

layer:2layers
board thickness:3.0mm
Copper thickness:4oz
min Hole size:0.4mm
min line width and distance:10/10mil
Surface treatment: OSP
Application:power supply

Why us:
1 Iso 9001,14001,TS16949,UL Certified.
2 900+staff,registered capital USD1.68million.
3 Full-process workshop-lamination workshop,imersion gold workshop,AOI test

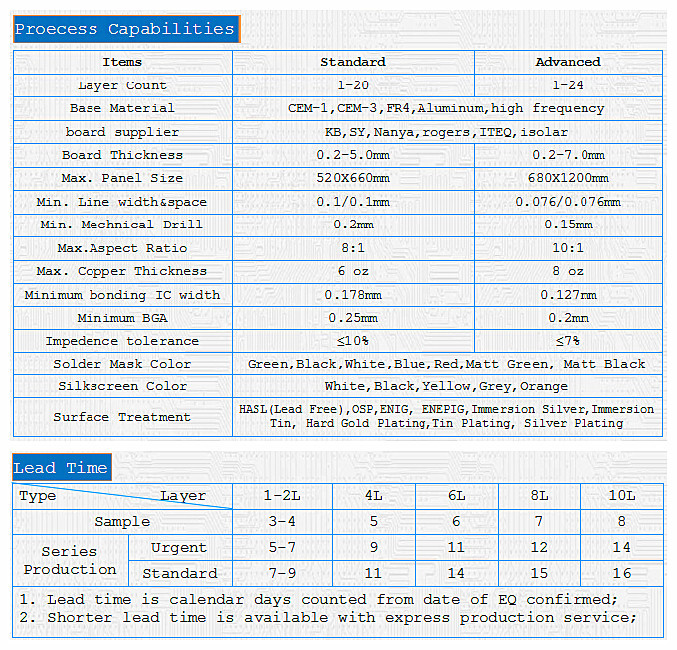

4 Mental base PCB,high frequency pcb(rogers,ITEQ,tyflon,Taconic),Buried/blind via board,1~20layers board thickness 0.2~7.0mm,copper thickness 1/3~8oz are available here.
6 All exported PCB have double-check before sending out.

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
