12 Pin Waterproof Connector Power

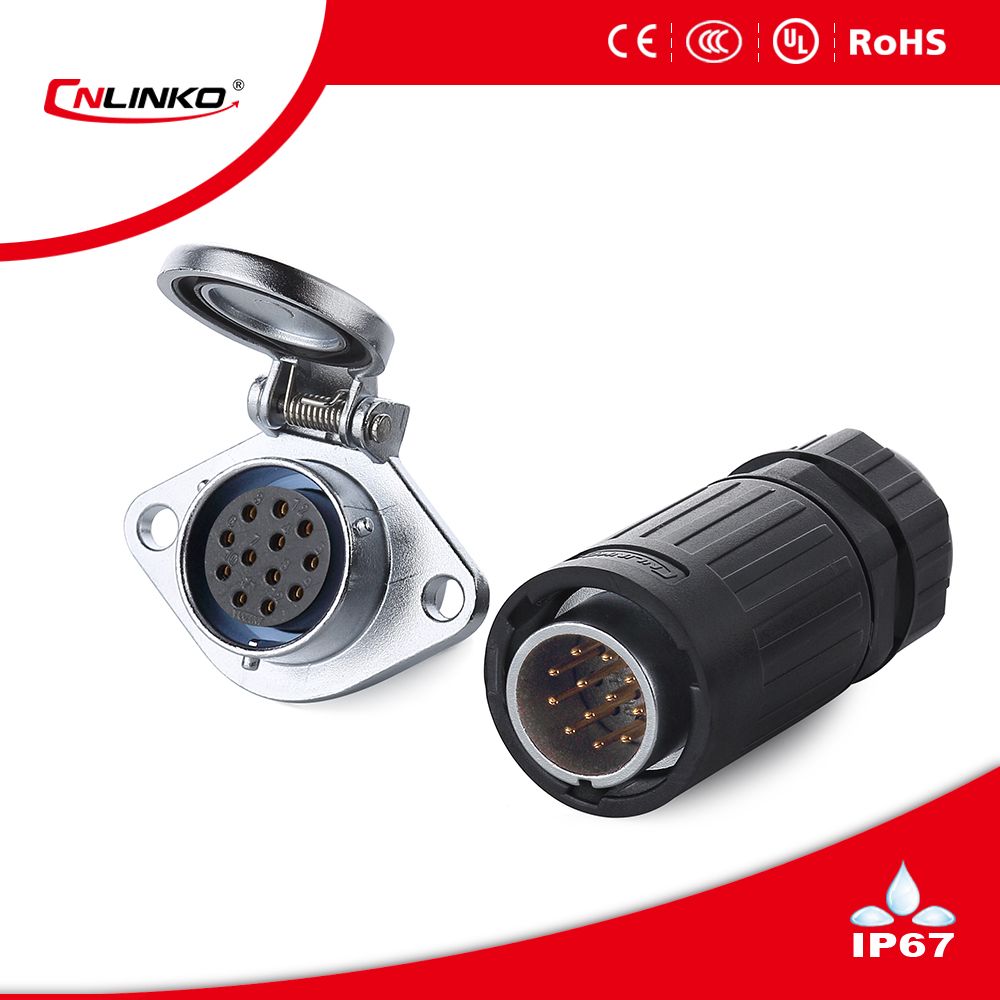

Name: 12 Pin Waterproof Connector Power
Brand: all-electronics-online.com
SKU: 802993675
Availability: InStock
Rating: 4.3 (53 reviews)

Price:	US $ 6.5-7.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YA-20-C12PE, YA-20-J12SX, YA-20-J12PE, YA-20-C12SX
Contact Diameter × Number:	Φ1.0×12
Rated Current:	5A
Operating Voltage (AC.V.RMS):	400V
Contact Resistance:	<5mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP65
Assembly Wire:	Solder
Waterproof Circle:	Silica Gel
Connecting Mode:	1/4 Bayonet Connect
Housing,The Insulating Parts:	High Performance Engineering Plastics
Application:	LED Display, DMX Lighting
Gender:	Male and Female

Product Description

YA-20 serials connector is with unique bayonet locking type design, rotary locking, which is easy to operate and widely used in LED display screen, Audio, commerce, entertainment, stage equipment, DMX lighting, Industrial equipment. It is including plug and socket with soldering for cable to ensure easy and reliable fully connected.

1. Multi-pins design for varies industrial request. (2, 3, 4, 5, 7, 9, 12 pin)
2. Socket with zinc alloy materials,which is against high frequency noise and electromagnetic interference.
3. Plug with PBT shell and gold-plated contact.
4. High performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
5. Stable electrical performance,anti-pressure, against high temperature,anti-explosion and anti-corrosion.
6. Waterproof level: IP65/IP67
7. Rated current:20A/12A/5A rms
8. 1/4 bayonet connect.
9. Certification: CE, CCC, UL, ISO9001, ROHS

Cable specification:	0.15mm²~0.2mm²/26-24 AWG
Diameter range:	Φ5.5mm~Φ7mm
Contact diameter × number:	Φ1.0×12
Rated Current:	5A
Operating voltage (AC.V.rms):	400V
Contact resistance:	<5mΩ

Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65	Durability:	>500 times
Working temperature:	-40ºC~80ºC	Connecting mode:	1/4 bayonet connect
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
